Chemical Tanker Trucks

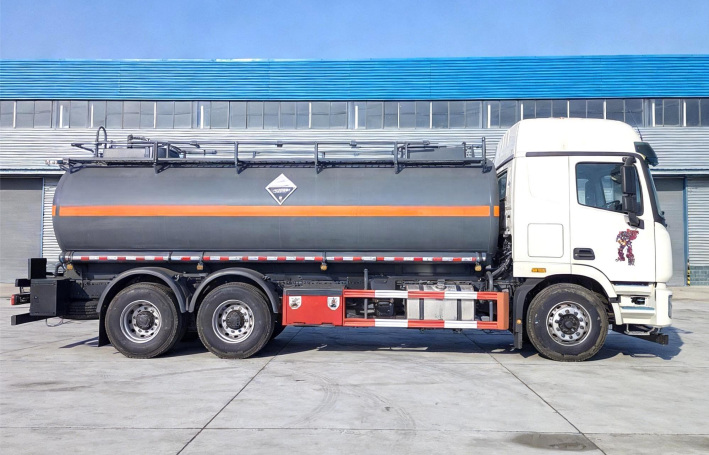

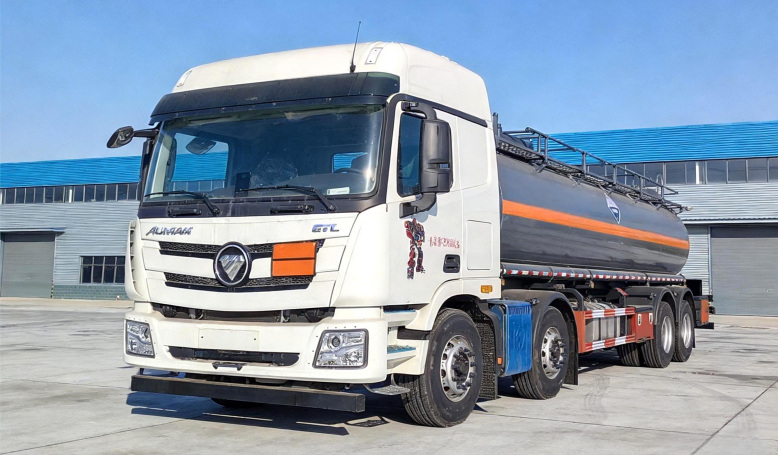

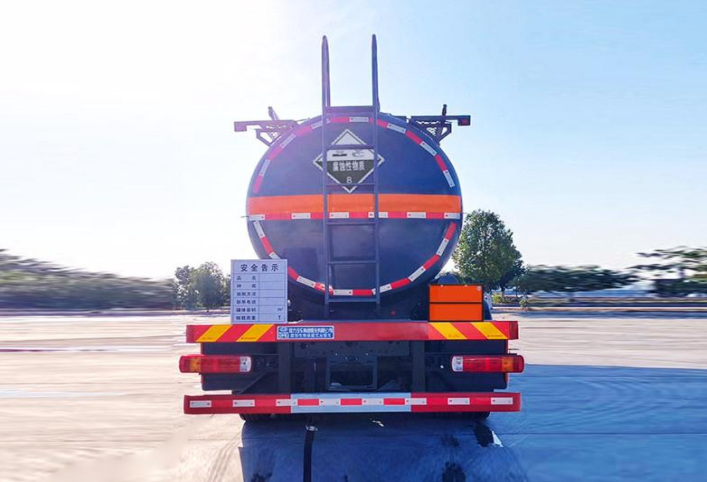

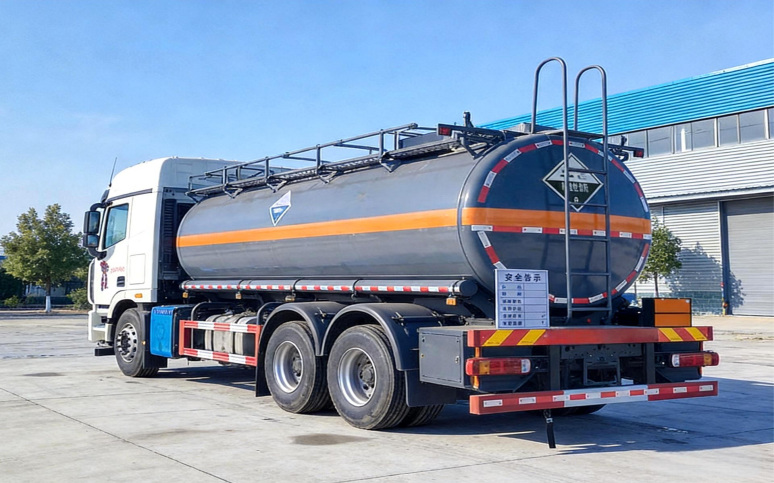

Foton Auman 18m³ Corrosive Goods Tank Transport Vehicle
Model 5320GFWB6
Foton Auman 18m³ Corrosive Goods Tank Transport Vehicle configured for specialized liquid transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 18m³ |
|---|---|
| Tank dimensions | 8600×φ1750mm |
| Rated payload | 18300 kg |
| Overall dimensions | 11590 × 2500 × 3600 mm |
| Gross vehicle mass | 32000 kg |
| Curb weight | 13570 kg |
| Chassis model | BJ1329Y6GRL-09 |
| Wheelbase | 2100+4400+1350 mm |
| Engine model | X11NS6B360 |
| Engine displacement | 10500 ml |
| Engine power | 265 kW |
| Horsepower | 360 hp |
| Tires | 11.00R20 18PR |
| Additional configuration | This is an AT-type dangerous goods transport vehicle. The side protection is welded, and the rear protection is bolt-connected (Q235B carbon steel material, cross-section 140×60mm, ground clearance 490mm). It is equipped with an EBS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder. The front wheels are disc brakes, the exhaust pipe is front-mounted, the rear axle uses air suspension, and only radial tires are used. Configurations such as ETC on-board devices and cab styles can be optionally installed. |
| Transport Medium | Corrosive chemicals |
