Chemical Tanker Trucks

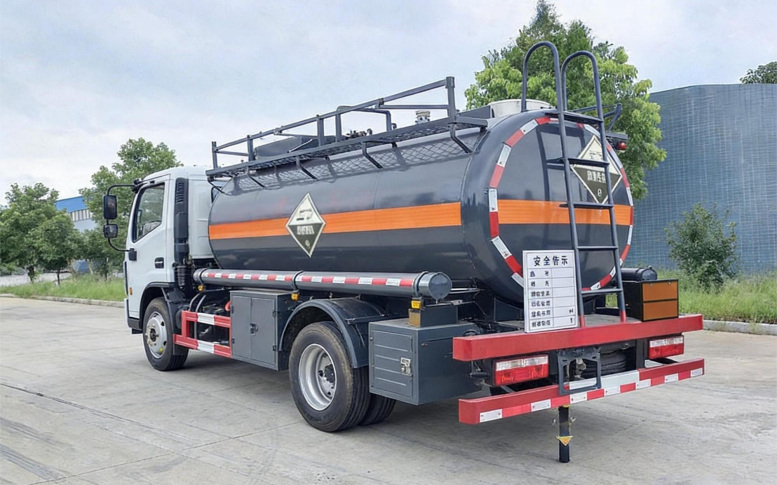

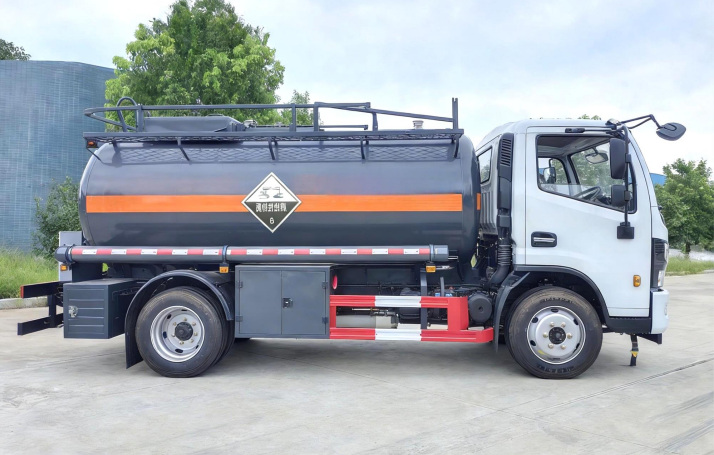

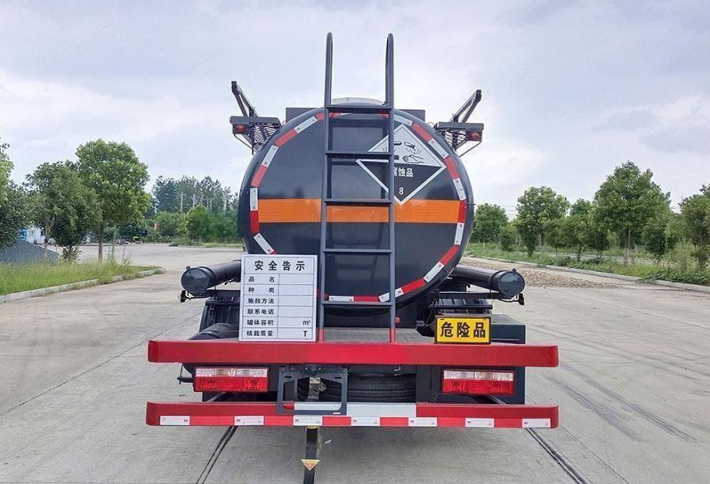

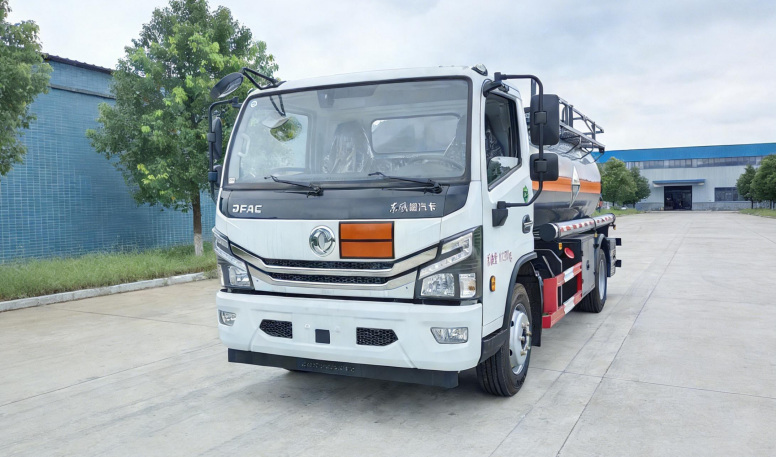

Dongfeng Duolika 6m³ Corrosive Goods Tank Transport Vehicle
Model 5120GFW6
Dongfeng Duolika 6m³ Corrosive Goods Tank Transport Vehicle configured for specialized liquid transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 6.7m³ |
|---|---|
| Tank dimensions | 4500 × 1480 mm |
| Rated payload | 6700 kg |
| Overall dimensions | 6840 × 2200 × 2900 mm |
| Gross vehicle mass | 11950 kg |
| Curb weight | 5055 kg |
| Chassis model | EQ1125SJ8CDCWXP |
| Wheelbase | 3800 mm |
| Engine model | CY4SK261 |
| Engine displacement | 3856 ml |
| Engine power | 125 kW |
| Horsepower | 170 hp |
| Tires | 245/70R19.5 16PR |
| Additional configuration | This is an AT-type dangerous goods transport vehicle. The side and rear protections are welded with Q235B carbon steel, with the rear protection cross-section of 120×60mm and a ground clearance of 410mm. It is equipped with an ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder. The front wheels are disc brakes, the exhaust pipe is front-mounted, and only radial tires are used. Configurations such as ETC on-board devices and cab styles can be optionally installed. |
| Transport Medium | Corrosive chemicals |
