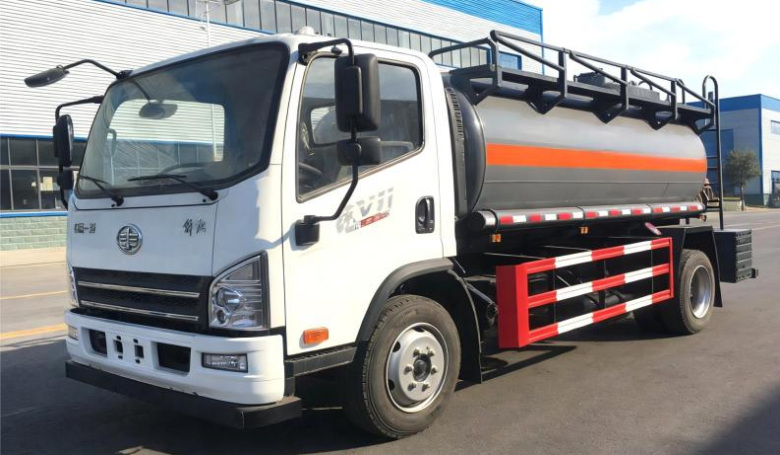

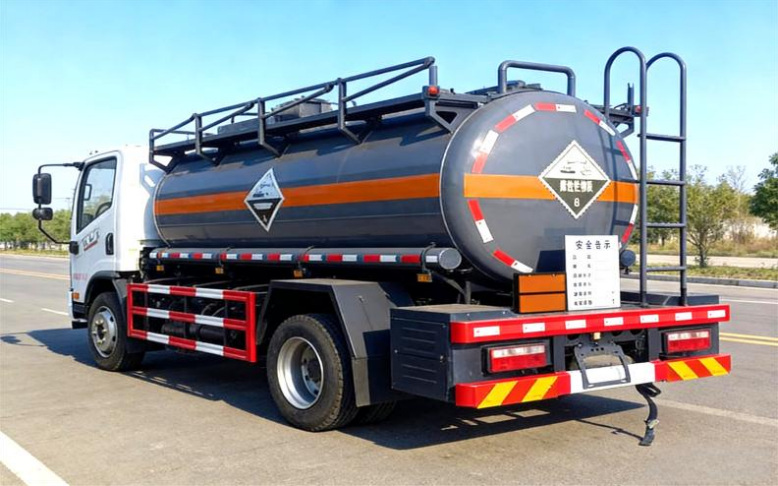

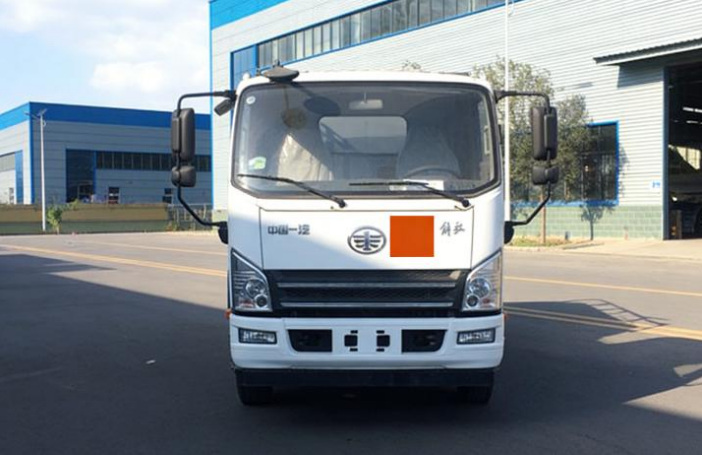

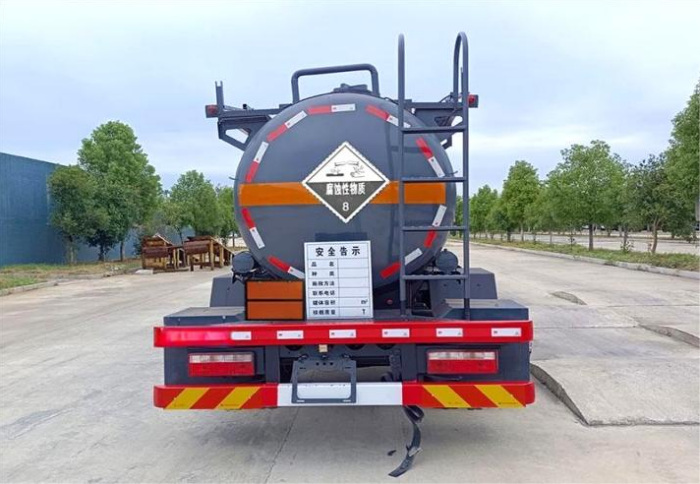

FAW Jiefang 6m³ Corrosive Goods Tank Transport Vehicle
Model 5120GFWC6
FAW Jiefang 6m³ Corrosive Goods Tank Transport Vehicle configured for specialized liquid transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 6.6m³ |
|---|---|
| Tank dimensions | 4500×φ1480mm |
| Rated payload | 6600 kg |
| Overall dimensions | 6875 × 2270 × 2800 mm |
| Gross vehicle mass | 11995 kg |
| Curb weight | 5200 kg |
| Chassis model | CA1120P40K59L4BE6A84 |
| Wheelbase | 3900 mm |
| Engine model | WP3NQ160E61 |
| Engine displacement | 2970 ml |
| Engine power | 118 kW |
| Horsepower | 160 hp |
| Tires | 245/70R19.5 16PR |
| Additional configuration | This is an AT-type dangerous goods transport vehicle. The side and rear protections are welded with Q235B carbon steel, with the rear protection cross-section of 120×50mm and a ground clearance of 400mm. It is equipped with an ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder. The front wheels are disc brakes, the exhaust pipe is front-mounted, and only radial tires are used. Configurations such as ETC on-board devices and rear bumpers can be optionally installed. |
| Transport Medium | Corrosive chemicals |
