UV Pipe Rehabilitation Trucks

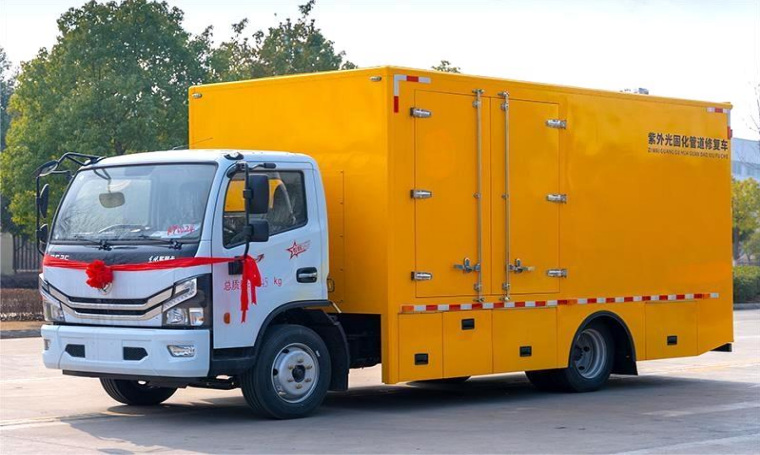

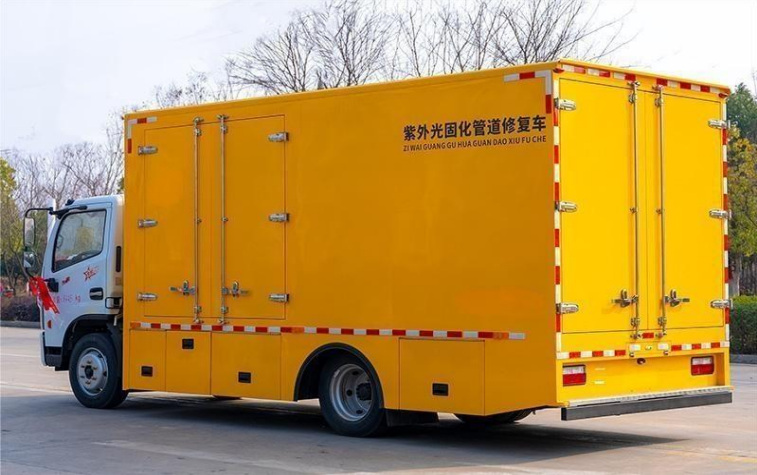

Dongfeng Duolika UV Pipe Repair Truck
Model 5070XJX6CC
Dongfeng Duolika UV Pipe Repair Truck configured for sewage suction and sanitation work.
Chassis modelEQ1075SJ3CDFEngine power95 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 6070 × 2200 × 3250 mm |
|---|---|
| Gross vehicle mass | 6800 Kg |
| Curb weight | 6670 Kg |
| Chassis model | EQ1075SJ3CDF |
| Wheelbase | 3308 mm |
| Engine model | CY4BK461 |
| Engine displacement | 3707 ml |
| Engine power | 95 kW |
| Horsepower | 129 hp |
| Tires | 7.00R16LT |

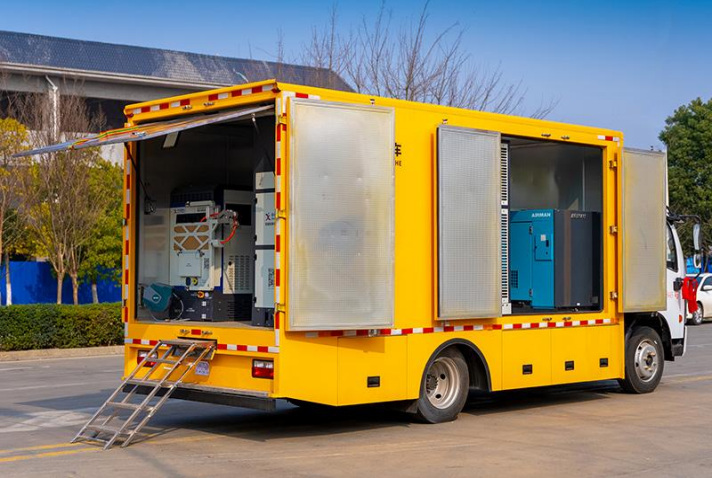

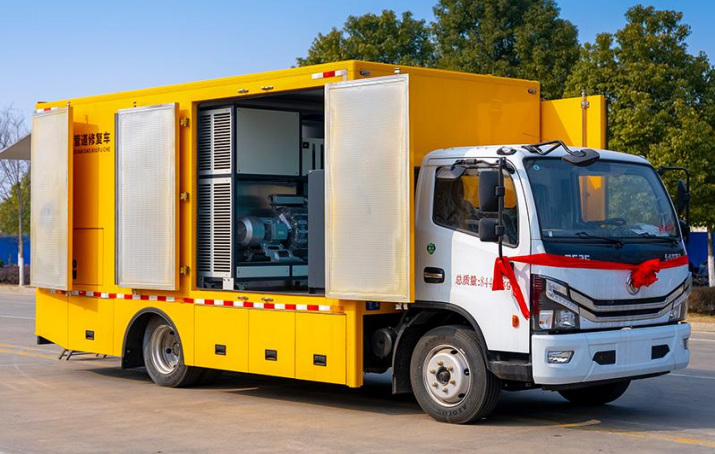

| Additional configuration | the main special devices are the compartment, generator set, air compressor, crane and pipeline repair system, mainly used for pipeline inspection and repair; 2. The side protection device is an integral skirt structure, the rear protection device is replaced by the vehicle body structure, and the lower edge ground clearance is 490mm; 3. ABS model/manufacturer: ABS/ASR-12V-4S/4M; optional rear appearance and rear door opening mode, cab can be selected with the chassis, optional internal layout style, optional compartment appearance |
