UV Pipe Rehabilitation Trucks
Sinotruk Howo UV Pipe Repair Truck
Model 5070XJX6AHQ
Sinotruk Howo UV Pipe Repair Truck configured for sewage suction and sanitation work.
Chassis modelZZ1077F3315F174Engine power110 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 6455 × 2450 × 3250 mm |
|---|---|
| Gross vehicle mass | 7360 Kg |
| Curb weight | 7230 Kg |
| Chassis model | ZZ1077F3315F174 |
| Wheelbase | 3280 mm |
| Engine model | D25TCIF1 |
| Engine displacement | 2499 ml |
| Engine power | 110 kW |
| Horsepower | 149 hp |
| Tires | 7.00R16LT |

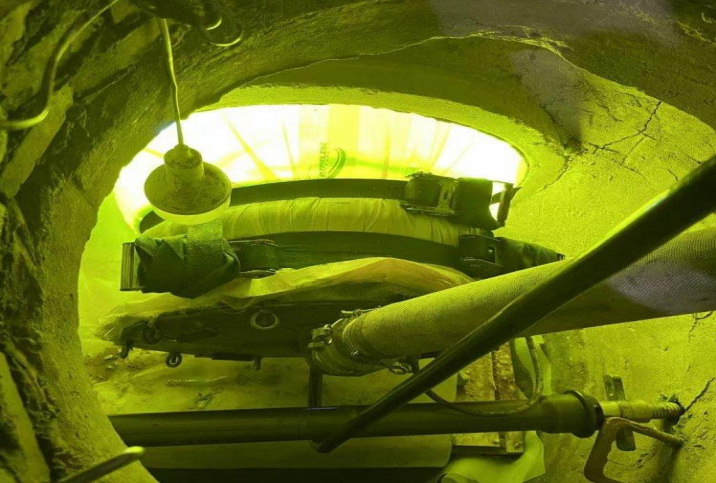

| Additional configuration | This vehicle the top of the compartment is closed and cannot be opened; this vehicle is mainly used for pipeline inspection and pipeline repair mobile operations, with pipeline repair equipment, generator set, air blast boost system installed in the compartment; the side and rear protection materials are Q235, both connected by welding, the rear protection section size (height×width) is 100×50mm, and the lower edge ground clearance is 390mm; ABS corresponds to relevant models; the upper side of the vehicle is equipped with work lights, which only illuminate in the night parking state and cannot be lit during driving; cab and aluminum alloy wheels can be selected with the chassis, and chassis accessories are optional. |
