Municipal Tool Trucks

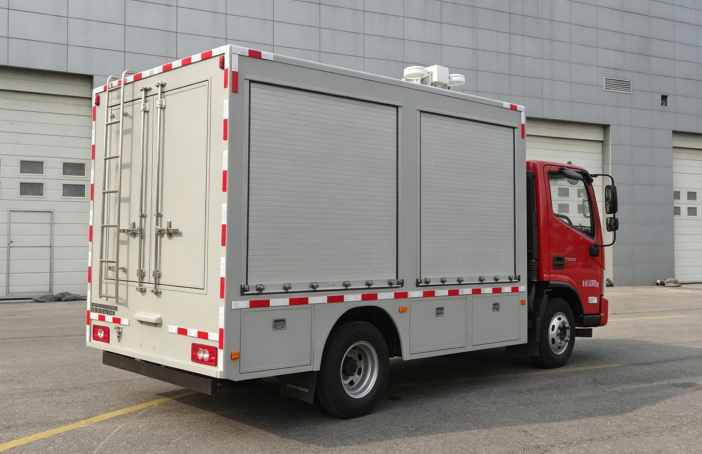

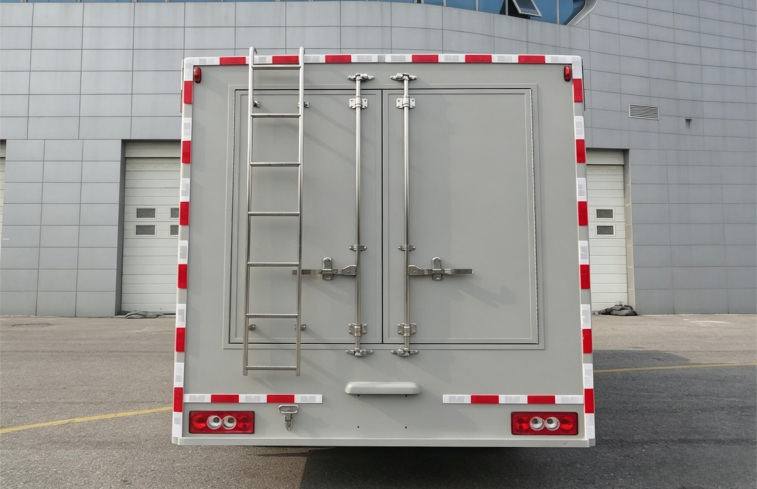

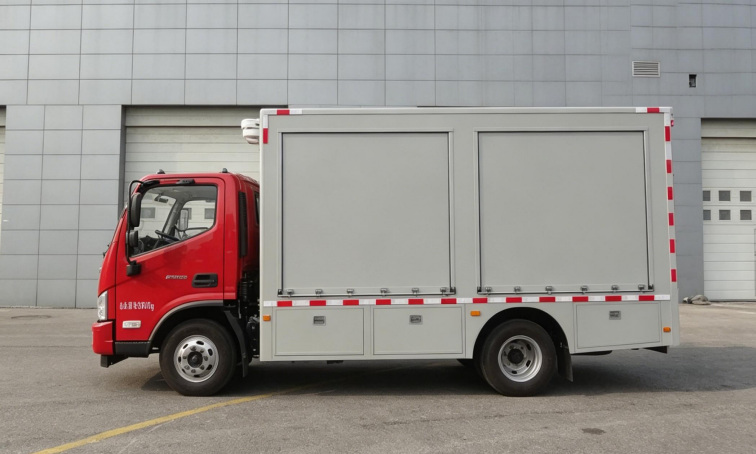

Foton Municipal Emergency Rescue Tool Truck
Model 5060XGJ6
A municipal emergency rescue tool truck with lifting lighting and tool storage for on-site response and maintenance.
Chassis modelBJ1088VE,JEA-FKEngine power115 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 6800 × 2280 × 3155 mm |
|---|---|
| Gross vehicle mass | 5900 Kg |
| Curb weight | 5705 Kg |
| Chassis model | BJ1088VE,JEA-FK |
| Wheelbase | 3800 mm |
| Engine model | F2.8NS6B156 |
| Engine displacement | 2780 ml |
| Engine power | 115 kW |
| Horsepower | 156 hp |
| Tires | 7.50R16LT 14PR |
| Maximum speed | 80 km/h |

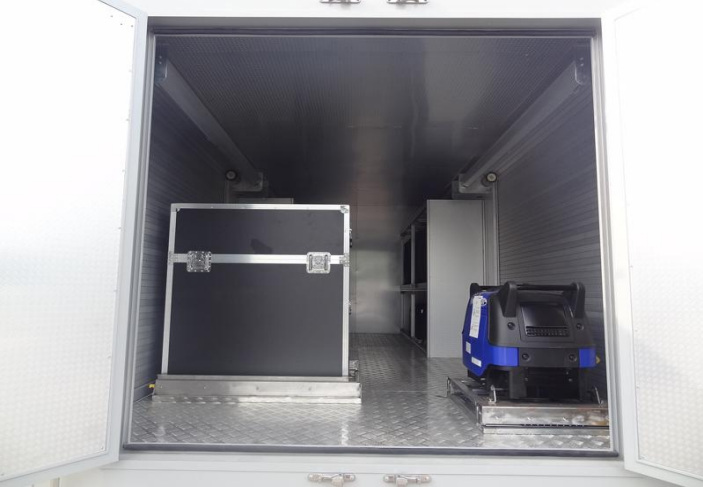

| Special notes | This vehicle is modified with chassis of 3800mm wheelbase; the top of the compartment is closed and cannot be opened; special devices: on-board lifting lighting system, tool cabinet, etc.; special functions: used to provide on-site emergency, rescue, maintenance and other equipment supporting tools; the side protection and rear protection are skirt structures, the side skirt ground clearance is 395mm, and the rear skirt ground clearance is 490mm; speed limiting device can be selected with the original vehicle, with a maximum speed of 80km/h; ABS corresponds to relevant models. |
