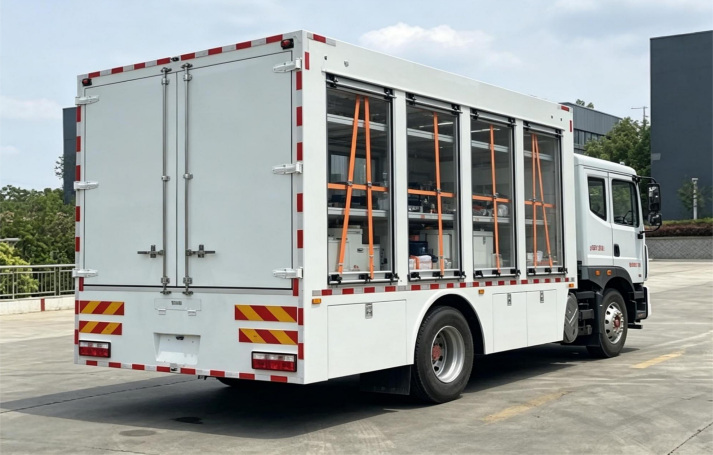

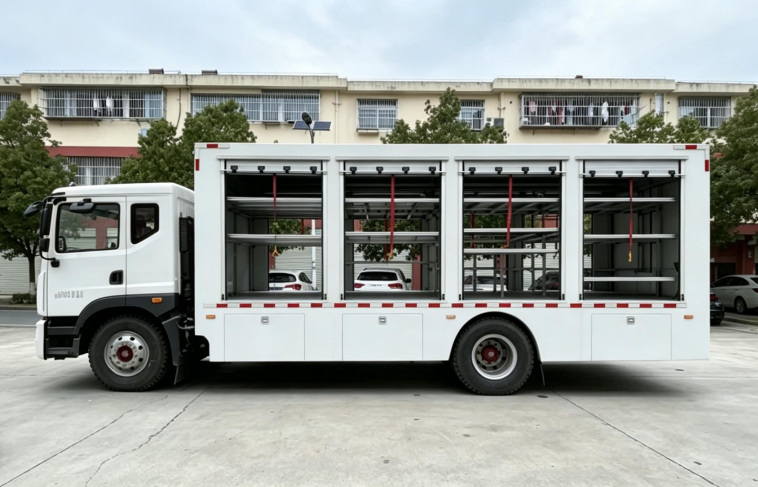

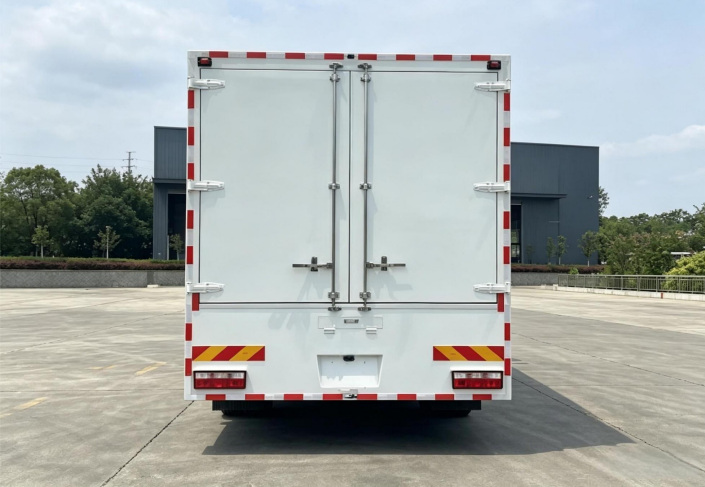

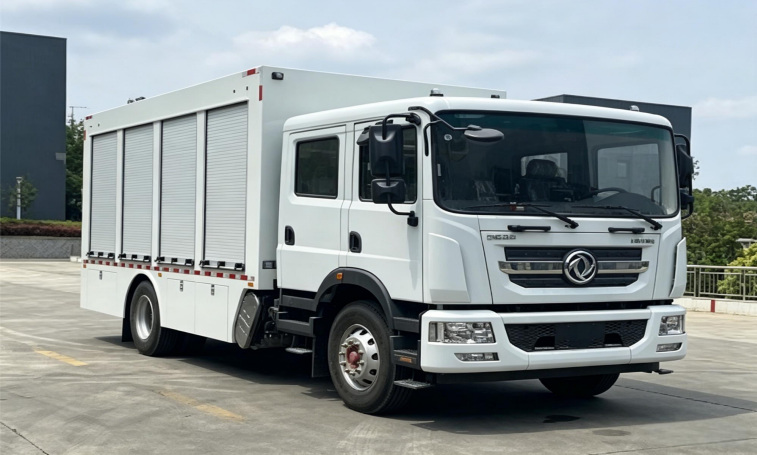

Dongfeng Municipal Emergency Rescue Tool Truck
Model 5120XGJADY
A municipal emergency rescue tool truck for transporting maintenance crews, tools and emergency equipment.
Chassis modelEQ1185DJ9CDEEngine power169 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 8420 × 2500 × 3600 mm |
|---|---|
| Gross vehicle mass | 12400 Kg |
| Curb weight | 12010 Kg |
| Chassis model | EQ1185DJ9CDE |
| Wheelbase | 4700 mm |
| Engine model | B6.2NS6B230 |
| Engine displacement | 6200 ml |
| Engine power | 169 kW |
| Horsepower | 229 hp |
| Tires | 10.00R20 |
| Special notes | This vehicle is equipped with generator, electric welding machine, plasma cutting machine, cable, oil pipe, maintenance tools, etc., mainly used for transporting maintenance tools and maintenance personnel to carry out maintenance operations; the side and rear protection are skirt plate structures, and the lower edge of the rear protection is 450mm above the ground. |
