Fuel Tanker Trucks

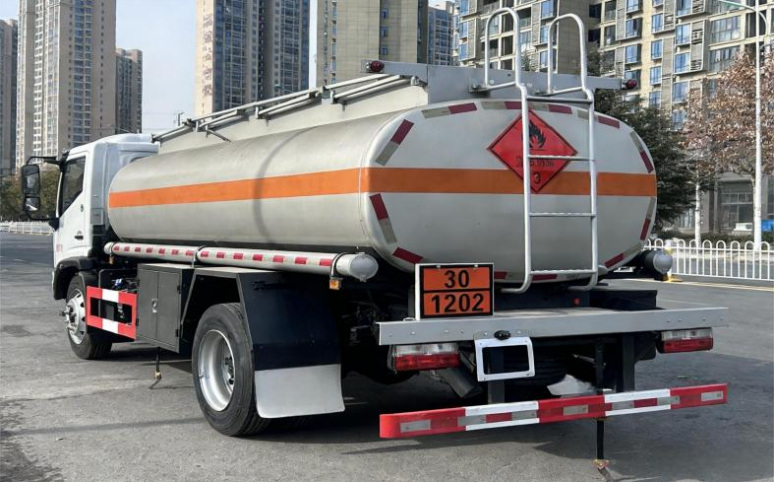

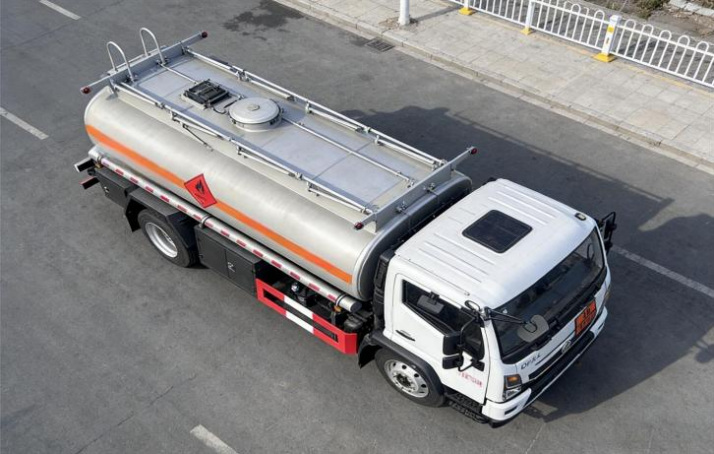

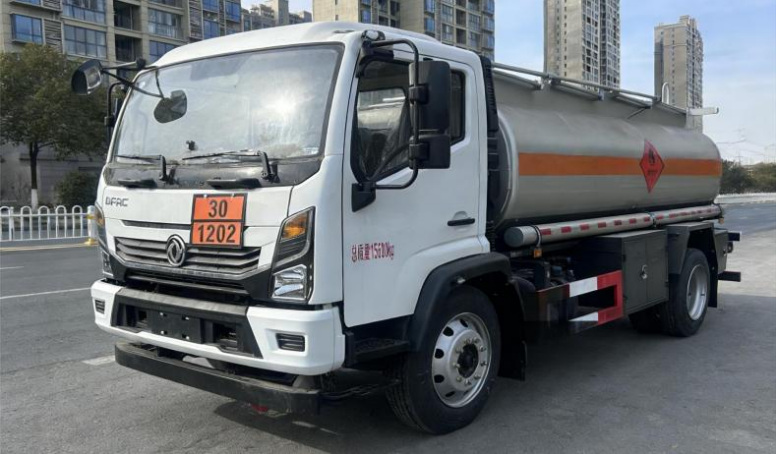

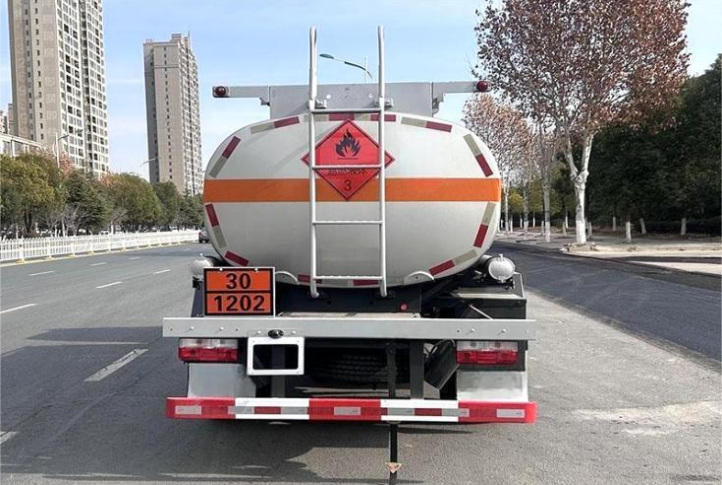

Dongfeng 8m³ Light Oil Tanker
Model 5122GYY6E
Dongfeng 8m³ Light Oil Tanker configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 8.2m³ |
|---|---|
| Tank dimensions | 4800 × 1950 × 1200 mm |
| Rated payload | 6485 kg |
| Overall dimensions | 6950 × 2400 × 2800 mm |
| Gross vehicle mass | 11950 kg |
| Curb weight | 5270 kg |
| Chassis model | EQ1125SJ8CDCWXP |
| Wheelbase | 3800 mm |
| Engine model | CY4SK261 |
| Engine displacement | 3856 ml |
| Engine power | 125 kW |
| Horsepower | 170 hp |
| Tires | 245/70R19.5 16PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 4800×1950×1200mm; The side protection is bolt-connected with Q235 material, the rear protection is welded + bolt-connected with Q235 material (cross-section 120×50mm, 400mm above the ground); It is equipped with ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, front-mounted exhaust pipes, only uses radial tires, and can be optionally equipped with ETC, tank ladder and other configurations. |
