Fuel Tanker Trucks

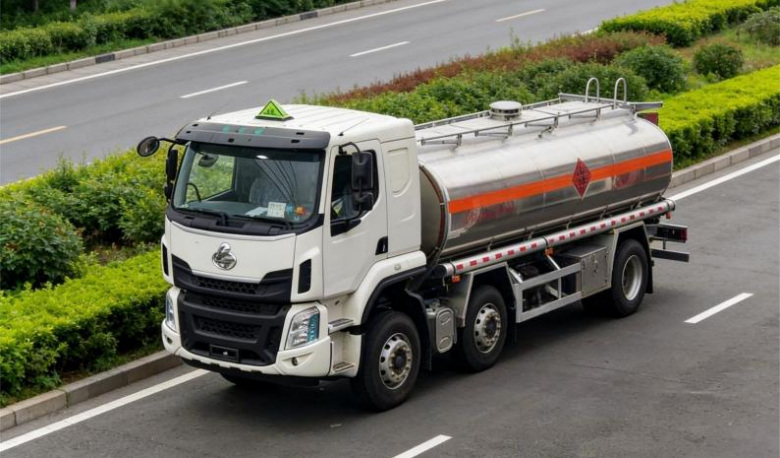

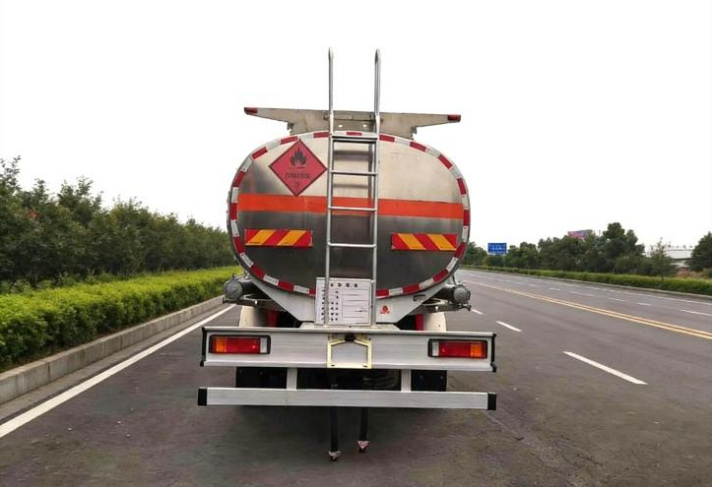

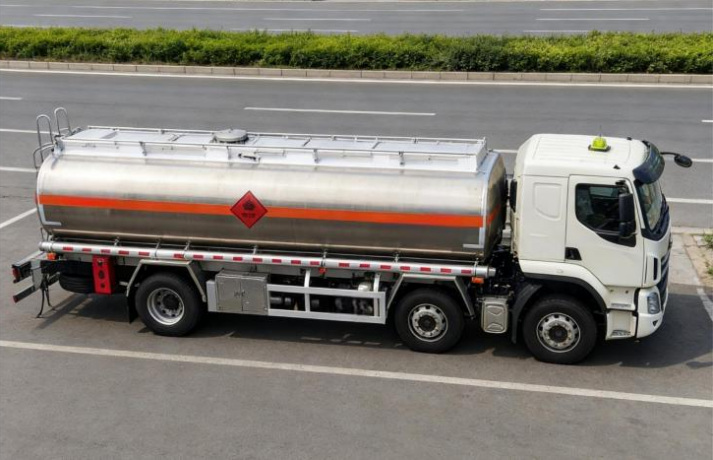

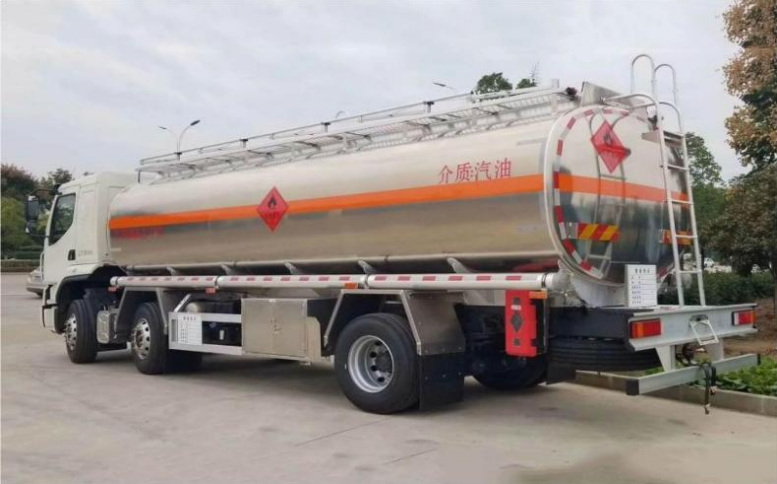

Liuqi Chenglong H5 Small Three-Axle Aluminum Alloy 21m³ Oil Transport Truck
Model 5267GYYLEL6A
Liuqi Chenglong H5 Small Three-Axle Aluminum Alloy 21m³ Oil Transport Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Transport medium | Gasoline |
|---|---|
| Tank / body volume | 21.2m³ |
| Tank dimensions | 7200 × 2300 × 1600 mm |
| Rated payload | 16760 kg |
| Overall dimensions | 10150 × 2525 × 3300 mm |
| Gross vehicle mass | 25500 kg |
| Curb weight | 8610 kg |
| Chassis model | LZ1267H5CCCT |
| Wheelbase | 2050+4050 mm |
| Engine model | YCS06270-60 |
| Engine displacement | 6234 ml |
| Engine power | 199 kW |
| Horsepower | 270 hp |
| Tires | 12R22.5 18PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, only using the chassis with 2050+4050mm wheelbase; The tank external dimensions are 7200×2300× 1600mm, the side protection material is aluminum alloy, and the rear protection is Q235B material (cross-section 80×140mm, 500mm above the ground); It is equipped with a speed limiter (limited to 80km/h), a satellite-positioning driving recorder and other configurations. |
