Fuel Tanker Trucks

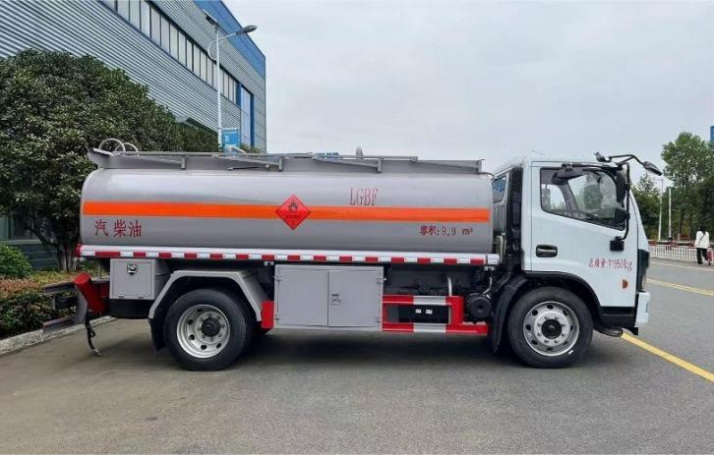

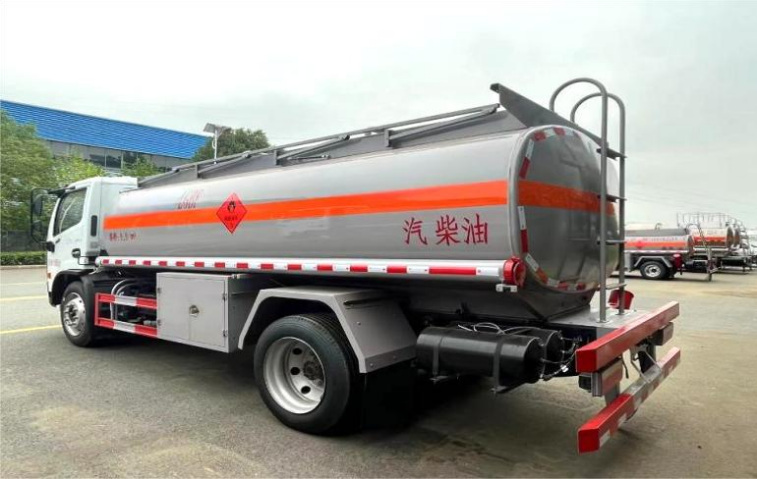

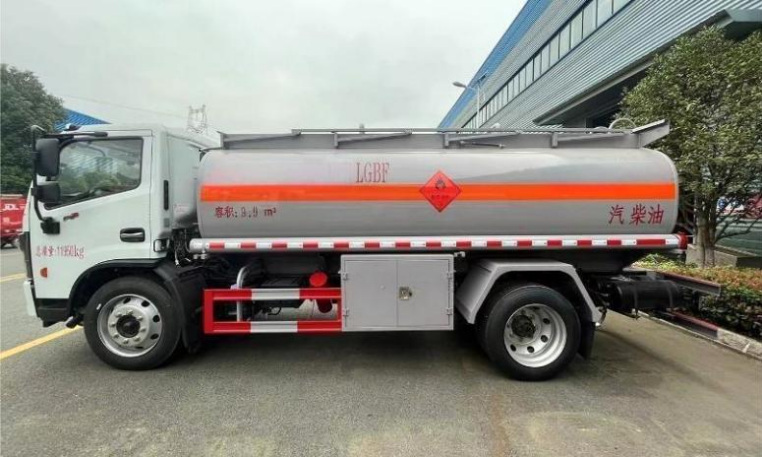

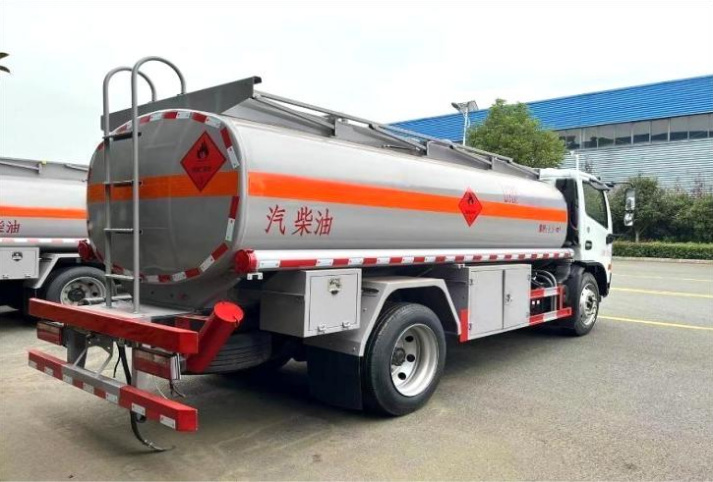

Dongfeng Furuika 10m³ Refueling Truck
Model 5124GJY6BWG
Dongfeng Furuika 10m³ Refueling Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 9.9m³ |
|---|---|
| Tank dimensions | 4800 × 1950 × 1300 mm |
| Rated payload | 6605 kg |
| Overall dimensions | 6950 × 2200 × 2800 mm |
| Gross vehicle mass | 11950 kg |
| Curb weight | 5150 kg |
| Chassis model | EQ1125SJ8CDCWXP |
| Wheelbase | 3800 mm |
| Engine model | YCY30165-60 |
| Engine displacement | 2970 ml |
| Engine power | 121 kW |
| Horsepower | 164 hp |
| Tires | 245/70R19.5 16PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 4800×1950×1300mm; It is equipped with ABS, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder; The side and rear protections are made of Q235B material, the rear protection cross-section is 120×60mm with a ground clearance of 440mm; The front wheels are disc brakes, the exhaust pipe is front-mounted, and configurations such as ETC and cab styles can be optionally installed. |
