Wood Chipper Trucks

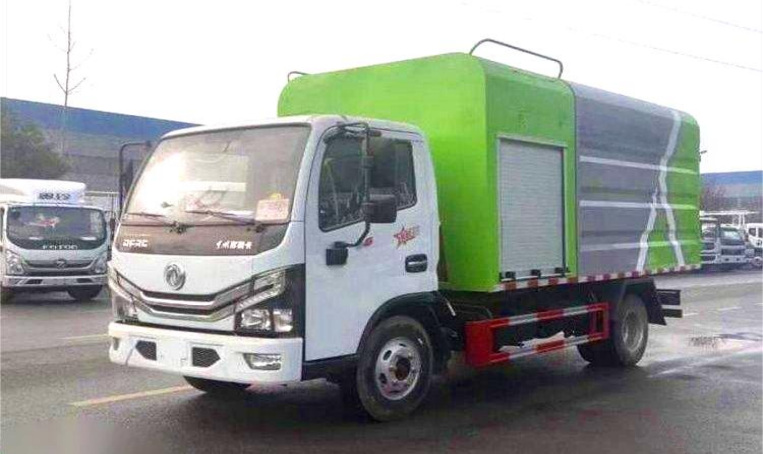

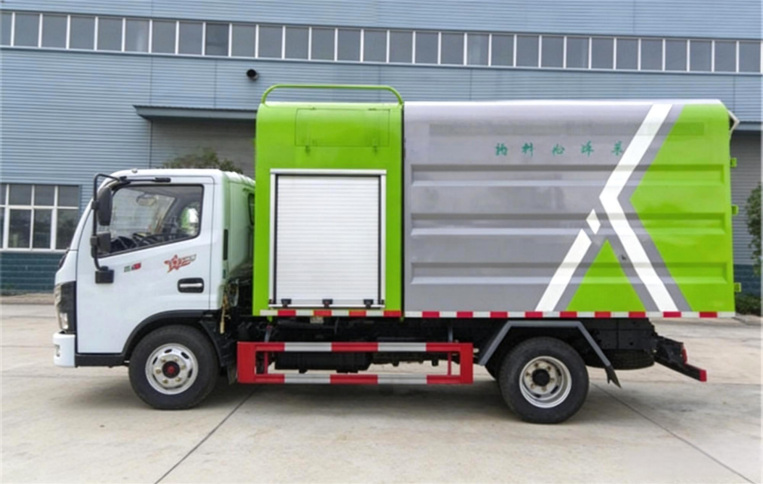

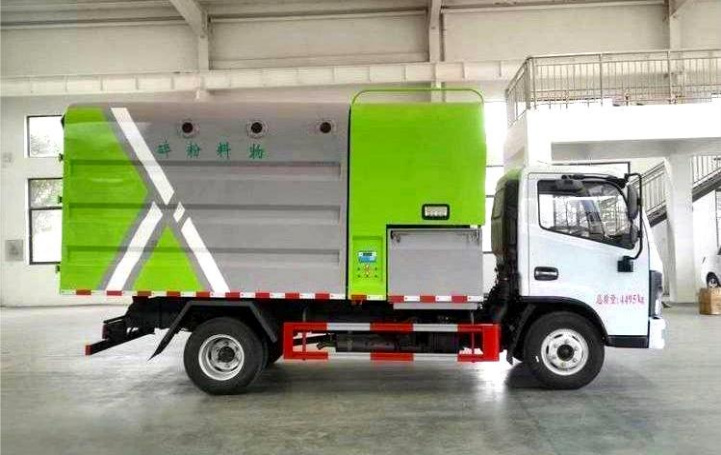

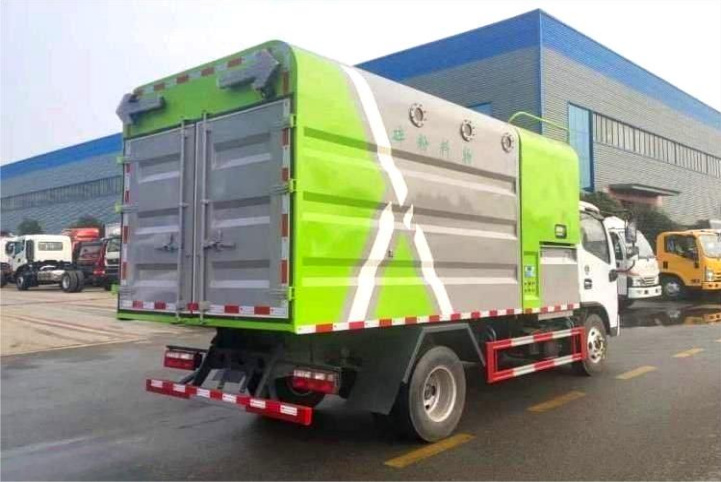

Dongfeng Dolika 16m3 Tree Chipper Truck
Model CL5041TWF6YC
Dongfeng Dolika 16m3 Tree Chipper Truck (CL5041TWF6YC) is configured for specialized fleet operations, with feed speed of 32m/min and loading height of 800 mm.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5980 × 2060 × 2990 mm |
|---|---|
| Gross vehicle mass | 4495 Kg |
| Curb weight | 4365 Kg |
| Chassis model | EQ1045SJ3CDF |
| Wheelbase | 3308 mm |
| Engine model | D20TCIF1 |
| Engine displacement | 1999 ml |
| Engine power | 93 kW |
| Horsepower | 126 hp |
| Tires | 6.00R15LT 10PR |
| Body volume | 16m³ |
| Special notes | Use the 3308 mm-wheelbase chassis with the D20TCIF1 engine only. The upfit comprises a material-shredding device and temporary-storage box: high-speed cutting roller blades shred the material, then a fan blows it into the storage box. Side and rear protection are Q235; the left and right side protection is welded, with optional bolted fixing, and the rear protection is bolted with a 100 × 50 mm section and 152 mm ground clearance. Curb weight includes vehicle tools, cleaning fluid, coolant and spare tire. Box style is optional. |
| Feed Speed | 32m/min |
| Loading Height | 800mm |
