Wood Chipper Trucks
Dongfeng Tuyi 8m³ Garden Tree Shredder Truck
Model 5040TWFAYC

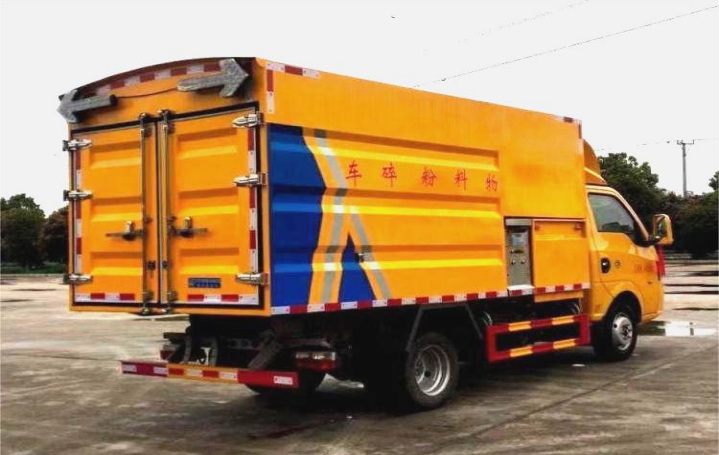

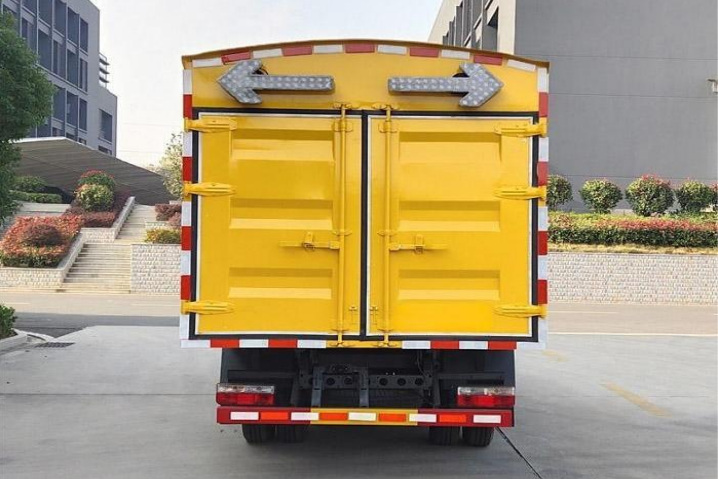

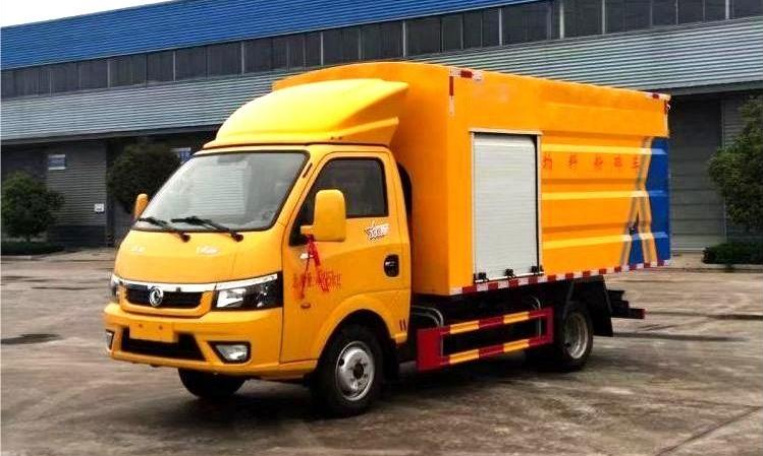

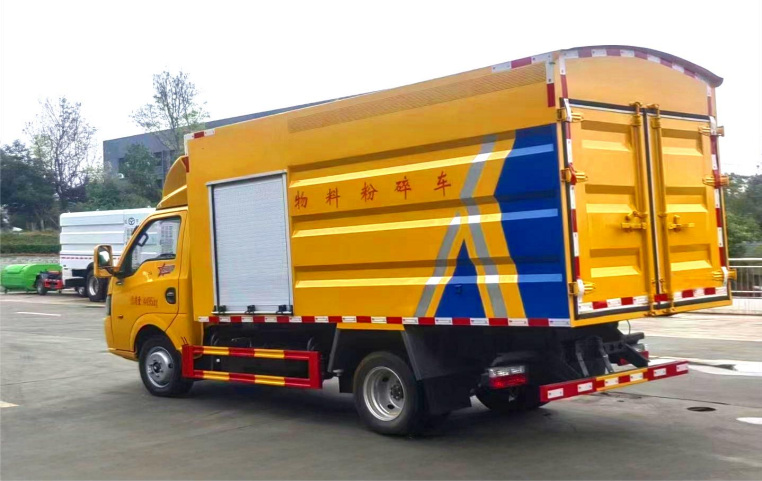

A Dongfeng Tuyi 8m³ Garden Tree Shredder Truck configured for landscaping maintenance.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated payload | 705 kg |
|---|---|
| Overall dimensions | 5950 × 1880 × 2760 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 3660 kg |
| Chassis model | EQ1045SJ16DC |
| Wheelbase | 3000 mm |
| Engine model | Q23-95E60 |
| Engine displacement | 2300 ml |
| Engine power | 70 kW |
| Horsepower | 95 hp |
| Tires | 185R15LT 8PR |
| Body volume | 8m³ |
| Feed speed | 32 m/min |
| Loading height | 800 mm |
| Special notes | Only use chassis with 3308mm wheelbase; this vehicle is a material shredder, the working principle is that the cutting roller blade of the shredding device rotates at high speed to shred the material, and then the fan blows the shredded material to the temporary storage box. The main special devices are the material shredding device and the material temporary storage box; the side and rear protection materials are Q235, the left and right side protections are connected by welding, the side protection can be fixed by bolt connection, the rear protection is connected by bolts, the rear protection section size is 100×50mm, and the ground clearance is 152mm; the curb weight includes vehicle tools, cleaning fluid, coolant, spare tire, only use engine models such as D20TCIF1; optional box appearance. |
