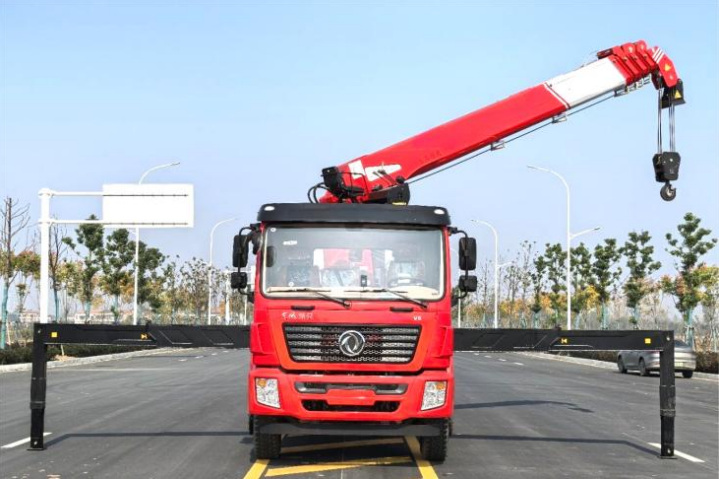

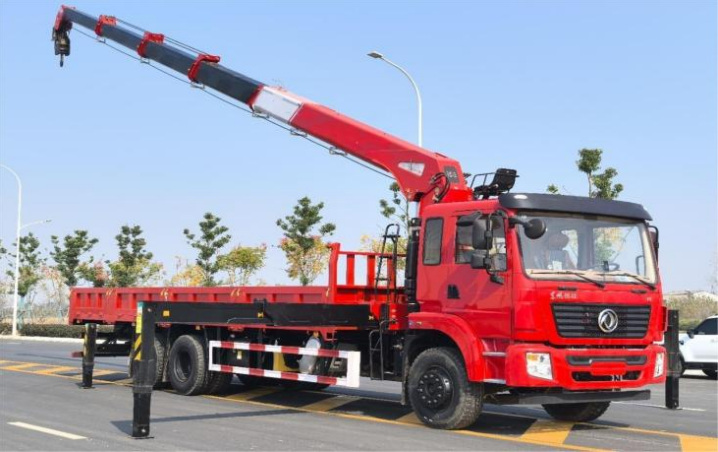

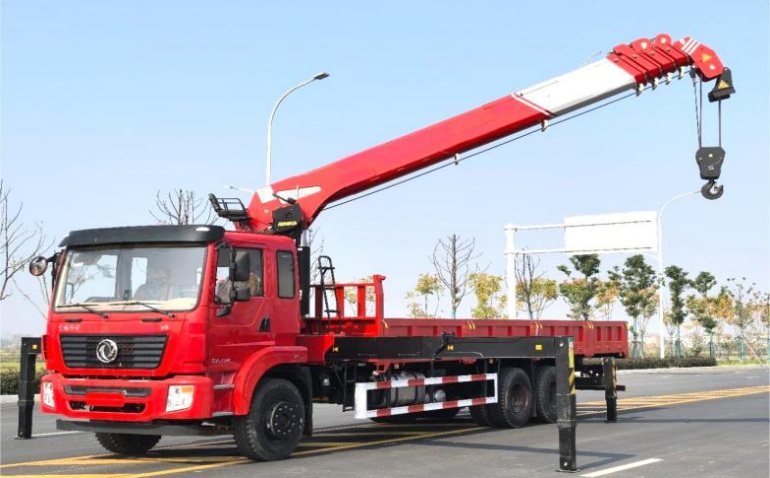

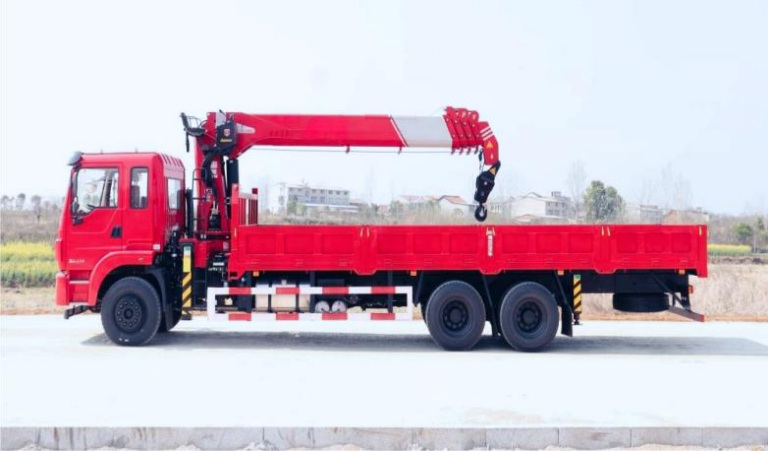

Dongfeng Jincheng V6 Rear Eight-wheel 12-ton 5-section Boom Truck Crane
Factory specification sheet for the Dongfeng Jincheng V6 Rear Eight-wheel 12-ton 5-section Boom Truck Crane.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Crane | 12-ton 5-section straight boom with synchronous telescoping |
|---|---|
| Boom length | 20m |
| Maximum lifting height | 22m |
| Outriggers | Composite double-section front outriggers; single-cylinder hydraulic rear outriggers |
| Overall dimensions | 12000 × 2550 × 3750 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 17600 kg |
| Wheelbase | 5900+1350 mm |
| Engine model | YCS06270-60 |
| Engine displacement | 6200 ml |
| Engine power | 198 kW |
| Horsepower | 270 hp |
| Tires | 11.00R20 |
| Axles | Dana 5.5T front / 11.5T tandem rear; 5.571 ratio |
| Cab | Jincheng V6 with 2-point suspension |
| Transmission | Fast 9-speed |
| Special notes | Qixing V6 cab, instrument, central lock, power windows, seat, USB, recorder, A/C, LED, ABS, PTO, remote throttle, new regs compliant; Changxing 12t 5-section crane, twin pump, upper control, front outriggers, boom 20m, height 22m, remote control, sub-beam, radiator, rear outriggers; cargo box 8500/7100×2450× 550mm, 3mm side, 5mm floor, steel cross members. |
