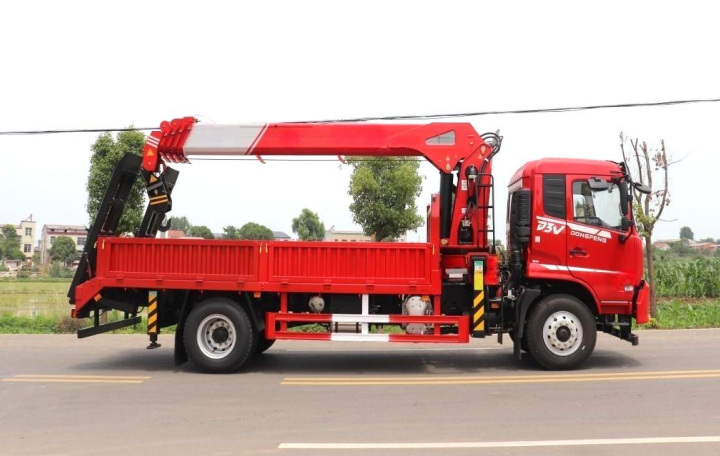

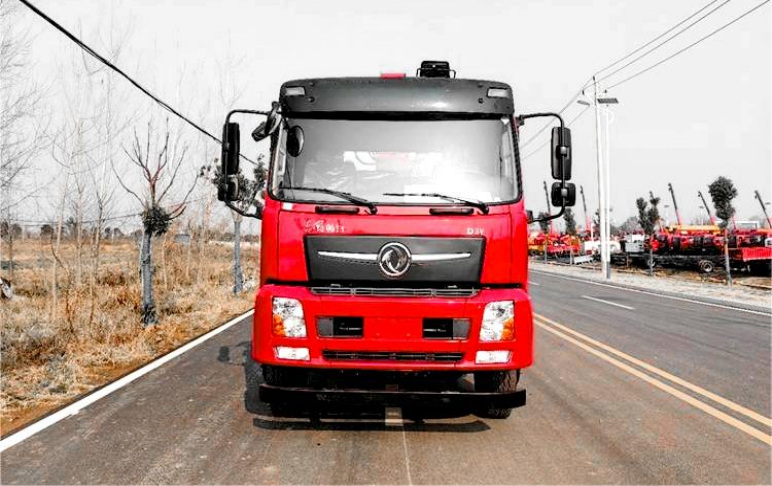

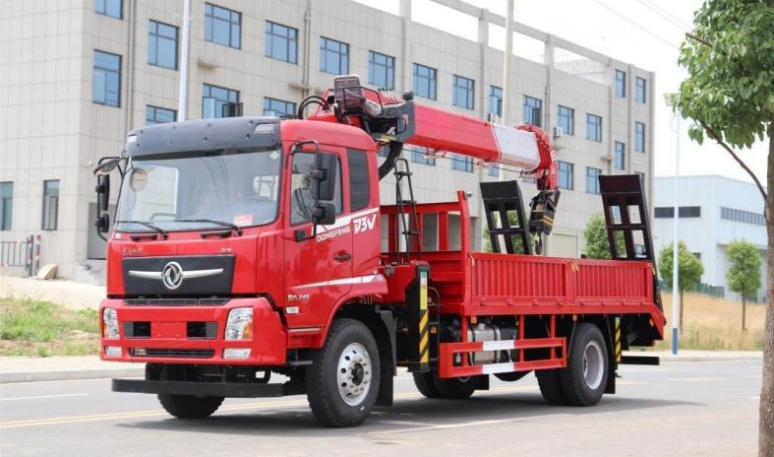

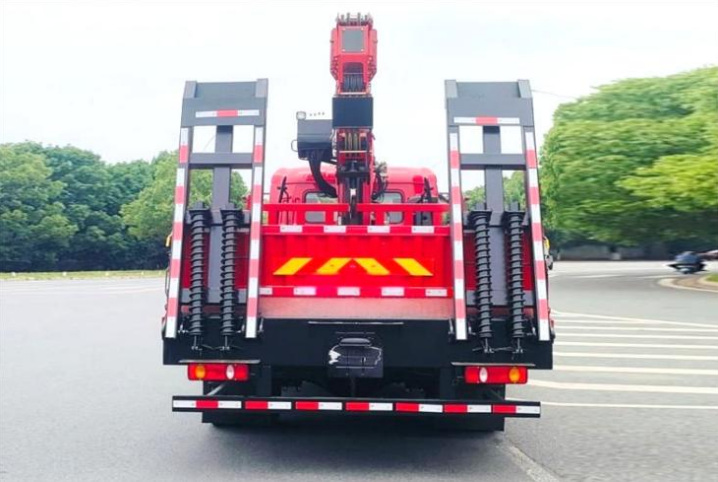

Dongfeng Changxing D3V Single-Axle Flatbed with Crane (8-ton 4-section Boom)
Factory specification sheet for the Dongfeng Changxing D3V Single-Axle Flatbed with Crane (8-ton 4-section Boom).
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Crane | 8-ton 4-section straight boom |
|---|---|
| Crane lifting moment | 200kN·m |
| Boom length | 12.98m |
| Maximum lifting height | 15.6m |
| Outriggers | Composite double-section front outriggers; single-cylinder hydraulic rear outriggers |
| Overall dimensions | 8400 × 2500 × 3680 mm |
| Gross vehicle mass | 18000 kg |
| Curb weight | 12600 kg |
| Wheelbase | 4500 mm |
| Engine model | YCS06245-60 |
| Engine displacement | 6200 ml |
| Engine power | 180 kW |
| Horsepower | 245 hp |
| Tires | 10.00R20 |
| Cab | Dongfeng original D530 |
| Transmission | Fast 8-speed |
| Special notes | 8-ton SQS200-4 crane with a 200kN·m lifting moment and 4-section straight boom (4.1m basic boom; 12.98m fully extended); maximum lifting height 15.6m, or 14.5m for certain configurations. Equipped with ABS, power windows, lower guard, air-suspension seat, central locking, A/C, driving recorder, dedicated PTO and remote throttle. |
| Lifting height | 15.6m |
