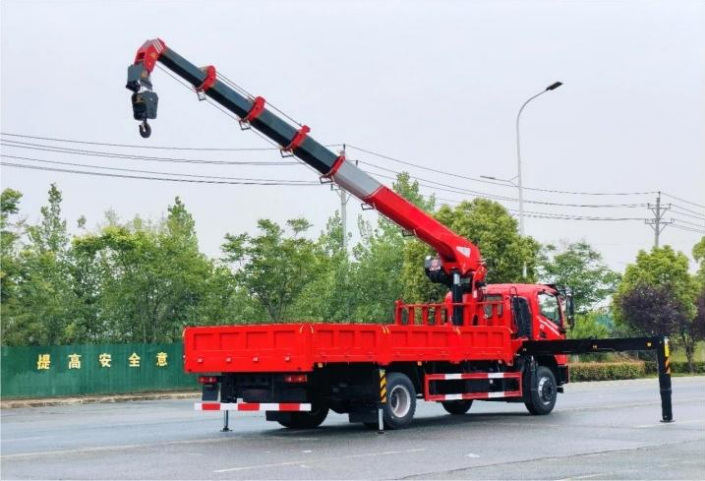

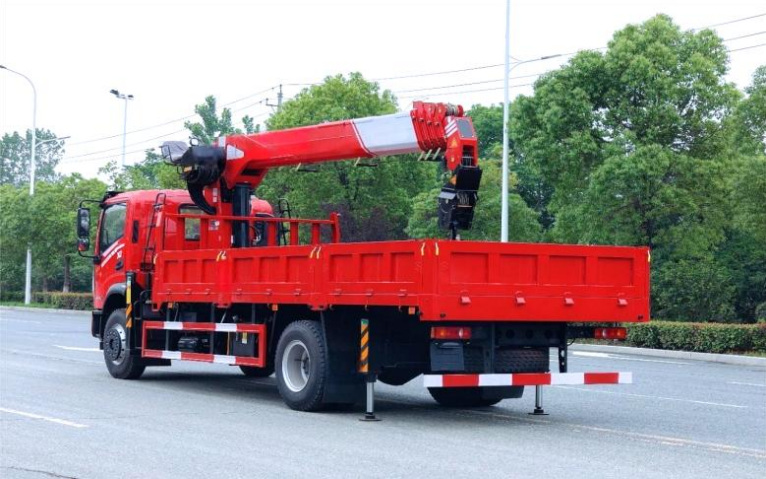

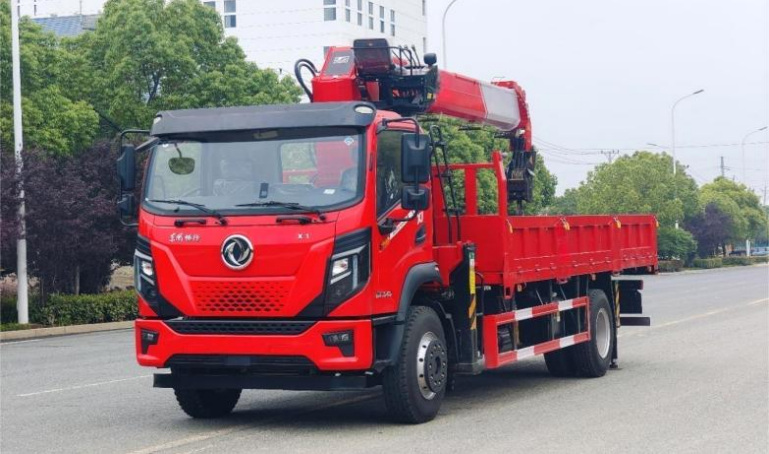

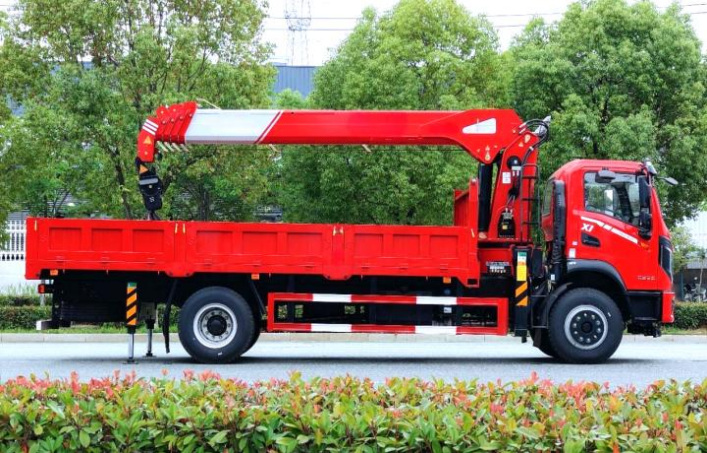

Dongfeng Changxing X1 Single-Row 8-ton 5-section Boom Truck Crane
Factory specification sheet for the Dongfeng Changxing X1 Single-Row 8-ton 5-section Boom Truck Crane.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Crane | 8-ton 5-section straight boom with synchronous telescoping |
|---|---|
| Boom length | 17.9m |
| Maximum lifting height | 19.9m |
| Outriggers | Composite double-section front outriggers with 7.5m span; original single-chamber rear outriggers |
| Overall dimensions | 9000 × 2550 × 3750 mm |
| Gross vehicle mass | 18000 kg |
| Curb weight | 12650 kg |
| Wheelbase | 5100 mm |
| Engine model | YCS04240-66 |
| Engine displacement | 4000 ml |
| Engine power | 176 kW |
| Horsepower | 240 hp |
| Tires | 10.00R20 |
| Axles | Dana 5.5T front / 11.5T rear; 5.571 ratio |
| Cab | New X1 with 2-point suspension |
| Transmission | Fast 8-speed |
| Special notes | Equipped with ABS, power windows, lower guard, air-suspension seat, central locking, A/C, multifunction steering wheel, 9-inch multimedia display, driving recorder, three-seat cab, dedicated crane PTO and remote throttle. Crane equipment includes through subframe, radiator, twin pump, one-button start/stop, lamps and horn. |
| Lifting height | 19.9m |
