Mobile Wastewater Treatment Trucks

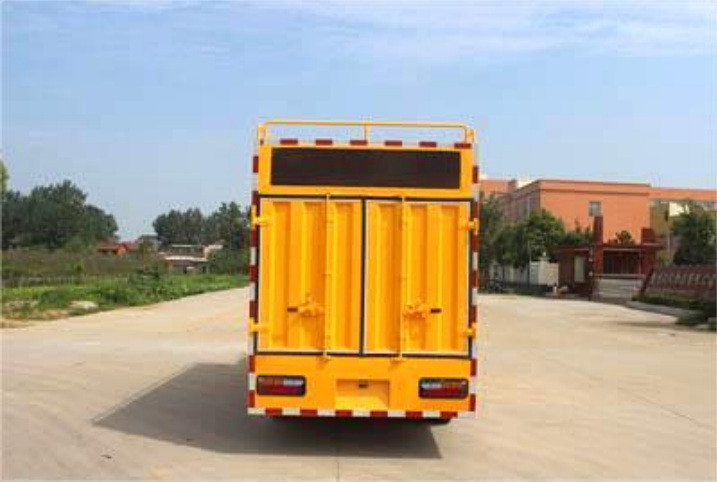

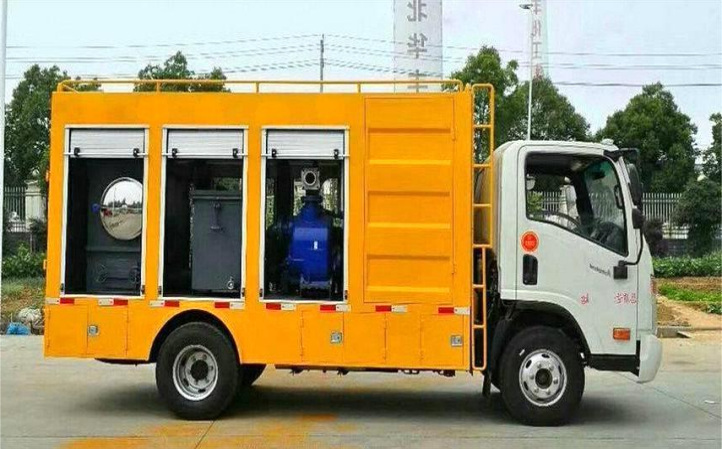

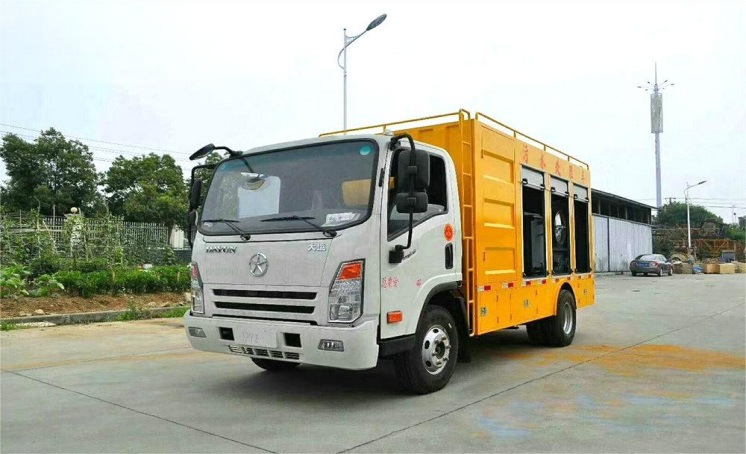

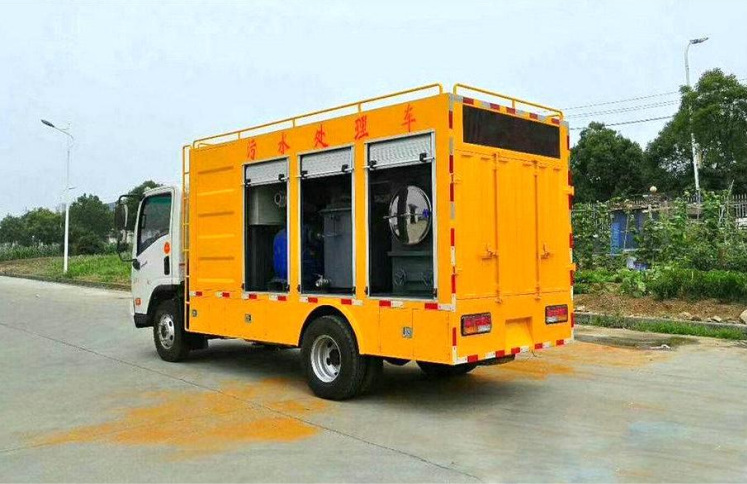

Dayun Sewage Treatment Truck
Model 5080TWCCGC
Dayun Sewage Treatment Truck configured for sewage collection and treatment support.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 6080 × 2060 × 2830 mm |
|---|---|
| Gross vehicle mass | 8280 Kg |
| Curb weight | 5900 Kg |
| Chassis model | CGC1080HDE33E |
| Wheelbase | 3300 mm |
| Engine model | YNF40E1 |
| Engine displacement | 3920 ml |
| Engine power | 125 kW |
| Horsepower | 170 hp |
| Tires | 7.50-16 7.50R16 |
| Additional configuration | The water tank loading capacity of the vehicle is 2185kg (2250kg), which can be used for cleaning sewage equipment. Working principle: the sewage is pumped into the sewage separator through the sewage pump, the water and impurities are separated in the sewage separator, and finally the water without impurities is discharged; The side and rear protection are replaced by special devices, and the ground clearance of the rear special device is 370mm; ABS corresponds to relevant models; Semi-cab, front mask, front lamps, front bumper, sun visor, logo style and installation position, and rearview mirror are optional |
