Mobile Wastewater Treatment Trucks
Dongfeng Duolika Sewage Treatment Truck
Model 5041TWC6

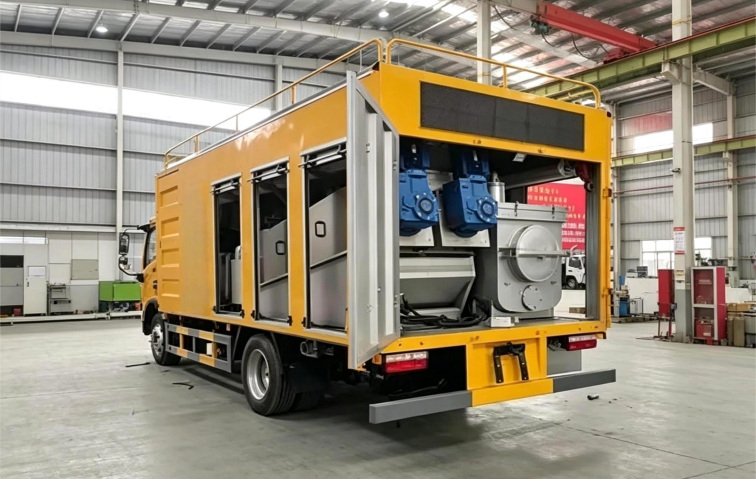

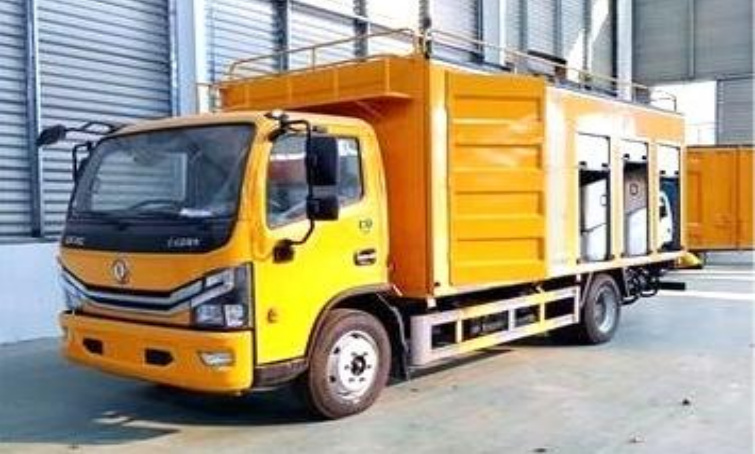

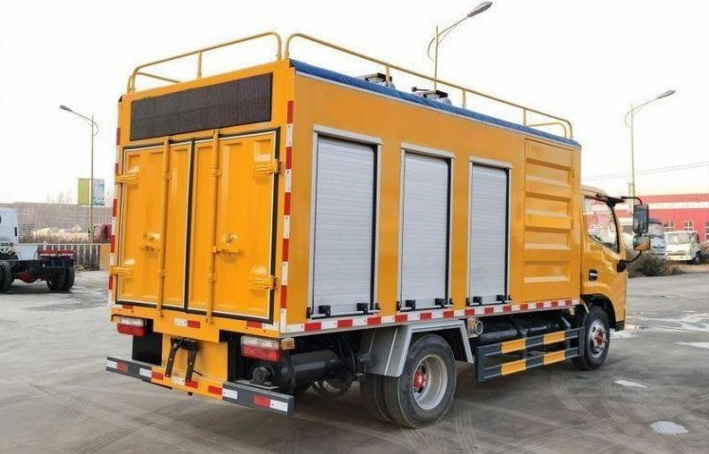

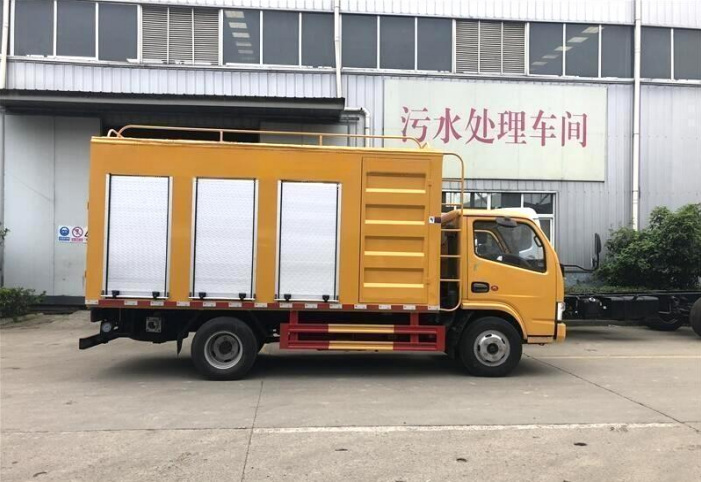

Dongfeng Duolika Sewage Treatment Truck configured for sewage collection and treatment support.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5995 × 1990 × 2950 mm |
|---|---|
| Gross vehicle mass | 4495 Kg |
| Curb weight | 4365 Kg |
| Chassis model | EQ1045SJ3CDF |
| Wheelbase | 3308 mm |
| Engine model | D20TCIF1 |
| Engine displacement | 1999 ml |
| Engine power | 93 kW |
| Horsepower | 126 hp |
| Tires | 6.50R16LT 8PR |
| Additional configuration | The special devices of the vehicle are: vacuum pump, high-pressure pump, sewage pump, etc.; protection material: Q235A carbon steel, connection method: the left and right sides are welded to the bottom surface of the box body, the rear protection is connected by welding, the rear protection section size is 100×50mm, and the rear protection ground clearance is 400mm; the corresponding relationship of vehicle length/wheelbase/rear overhang is (mm): 5995/3308/1632, 5915/2950/1910, 5510/2700/1755; cab can be selected with the chassis, internal structure can be selected, ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd., special devices inside the box can be selected, new cab can be selected with the chassis, new cab can be selected, and the climbing platform at the front of the box and rear lamps can be selected |
