Lubricant Tanker Semi-Trailers

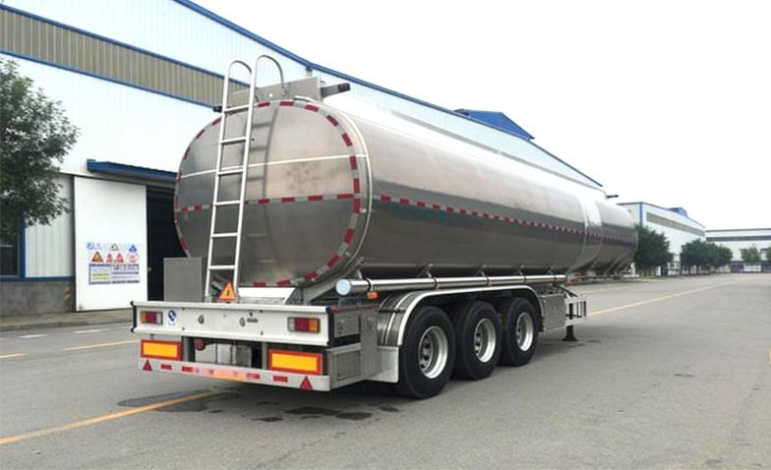

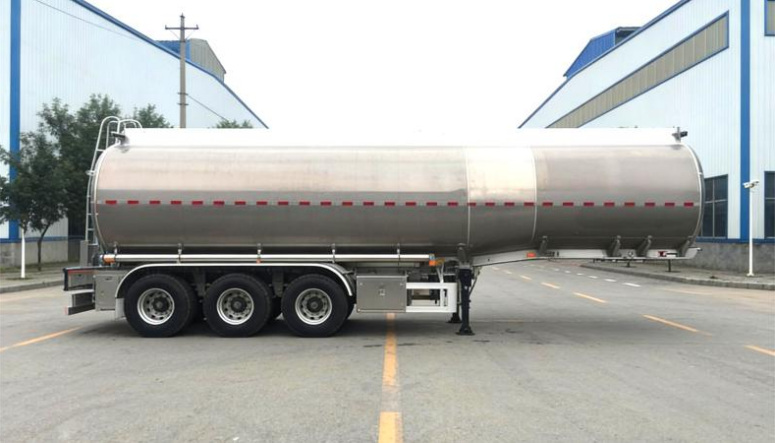

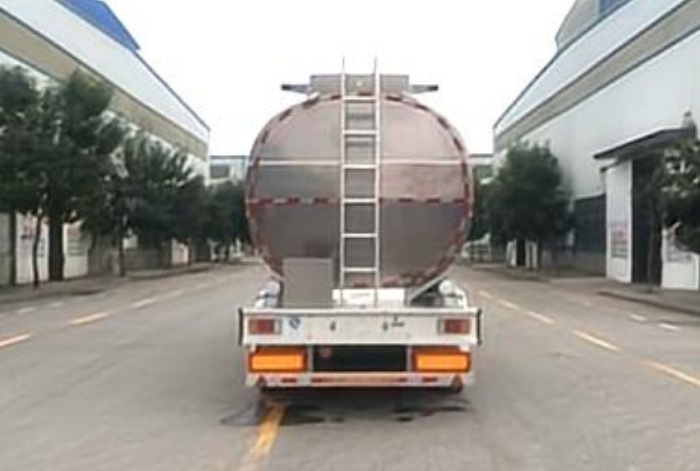

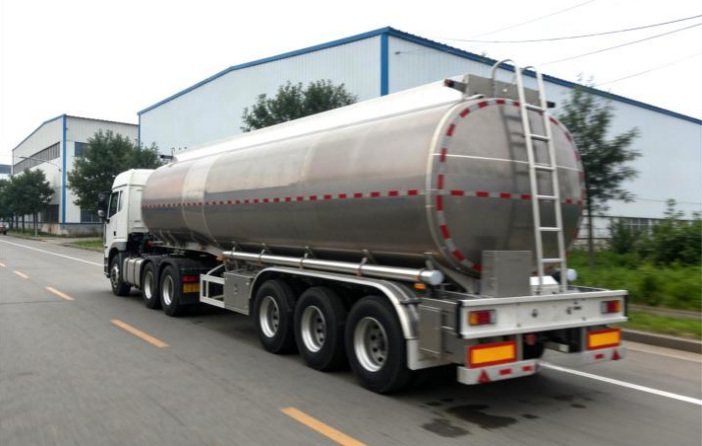

44m³ Lubricating Oil Tank Transport Semi-trailer
Model HCH9401GRH
44m³ Lubricating Oil Tank Transport Semi-trailer configured for lubricant and oil-product transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 44.2m³ |
|---|---|
| Tank dimensions | 11200 × 2490 × 2110 mm |
| Rated payload | 33700Kg |
| Overall dimensions | 11700 × 2500 × 3750 mm |
| Gross vehicle mass | 40000Kg |
| Curb weight | 6300Kg |
| Wheelbase | 5830+1310+1310 mm |
| Tires | 12R22.512PR |
| Additional configuration | It is a non-dangerous goods transport vehicle, with tank and frame made of aluminum alloy; equipped with ABS, protection material is aluminum alloy/carbon steel, rear protection section140×90mm, ground clearance500mm; optional ladder, toolbox and other accessories; must be matched with a semi-trailer tractor. |
| Transport Medium | Lubricating oil |
