Fuel Tanker Trucks

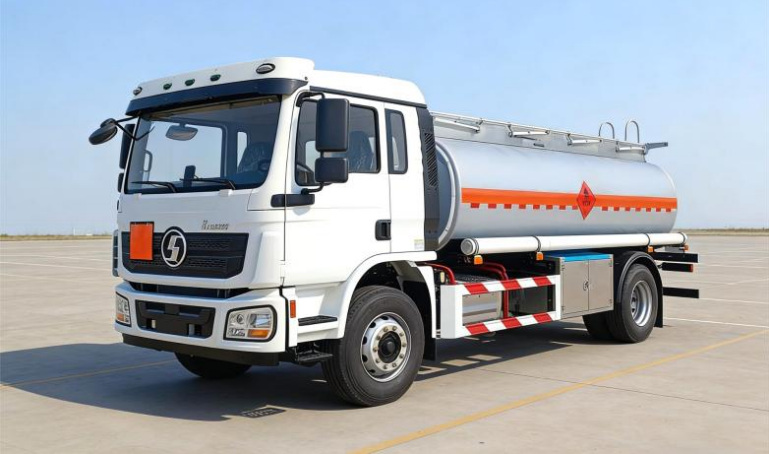

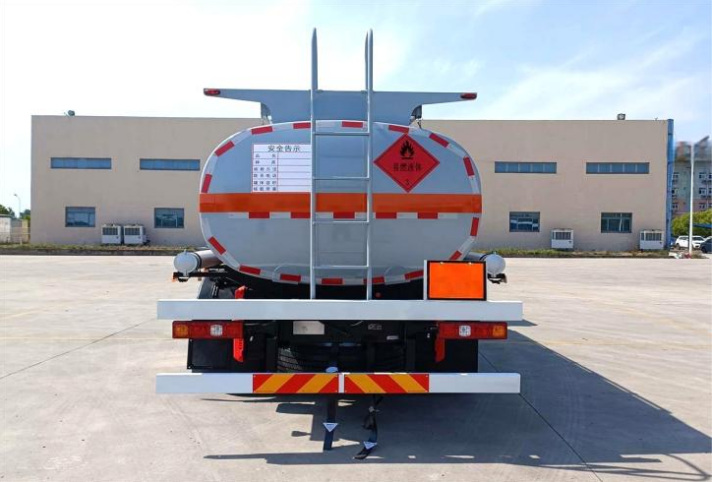

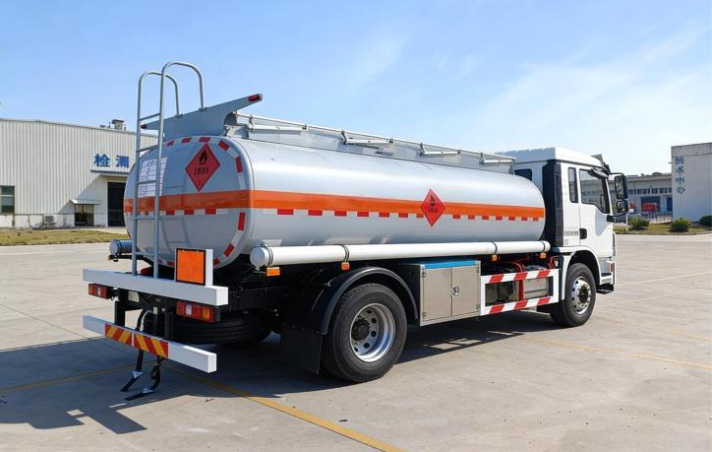

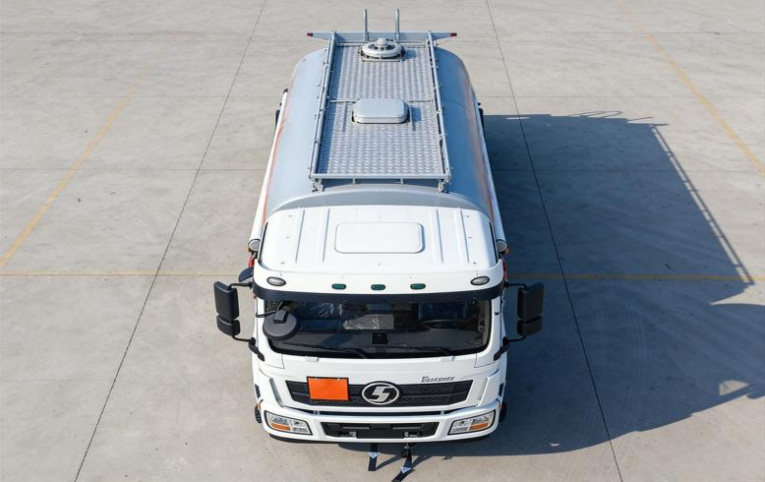

Shacman 12m³ Light Oil Tanker
Model 5181GYYLA1125
Shacman 12m³ Light Oil Tanker configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 12.5m³ |
|---|---|
| Tank dimensions | 2065 × 1350 × 5400 mm |
| Rated payload | 9920 kg |
| Overall dimensions | 8000 × 2500 × 3220 mm |
| Gross vehicle mass | 18000 kg |
| Curb weight | 7950 kg |
| Chassis model | SX1189LA1WQ1 |
| Wheelbase | 4700 mm |
| Engine model | B6.2NS6B230 |
| Engine displacement | 6200 ml |
| Engine power | 169 kW |
| Horsepower | 229 hp |
| Tires | 295/80R22.5 18PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 2065×1350×5400mm; The side protection is bolt-connected with T700 material, the rear protection is bolt-connected with Q235B material (cross-section 140×50mm, 475mm above the ground); It is equipped with ABS/EBS system, a speed limiter (limited to 79km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC on-board devices, toolbox styles and other configurations. |
| Transport Medium | Kerosene&Diesel |
