Fuel Tanker Trucks

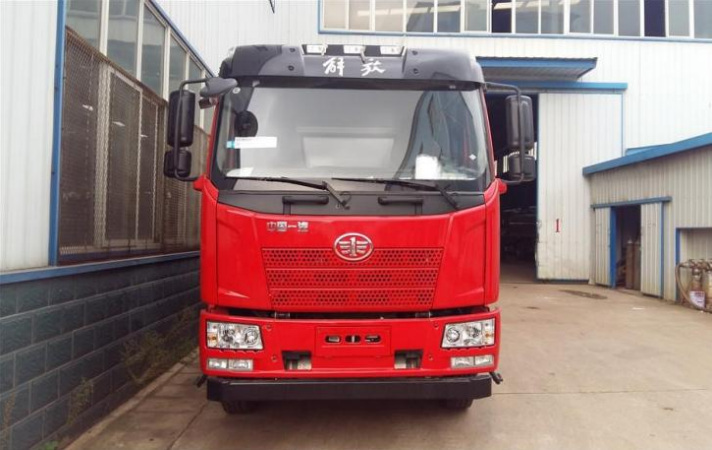

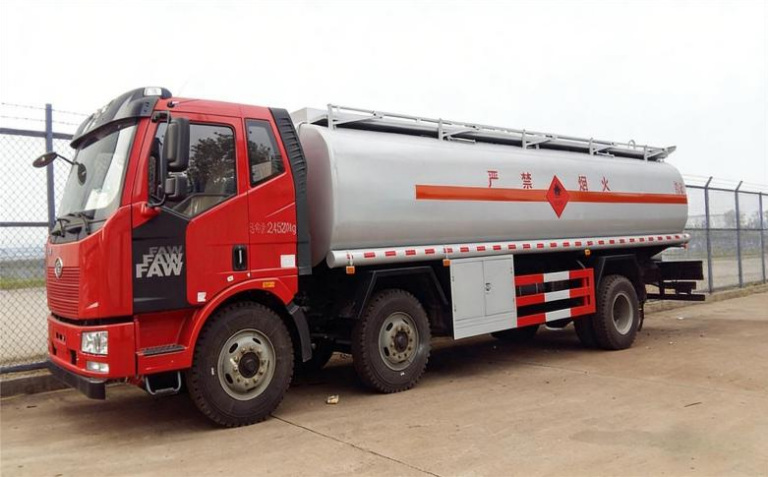

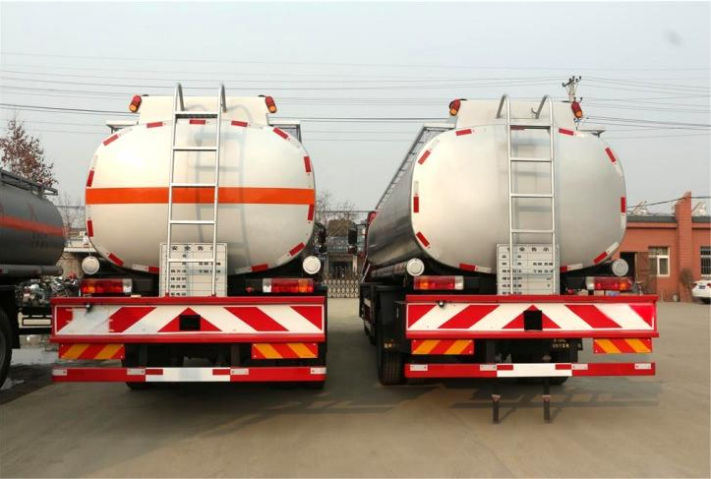

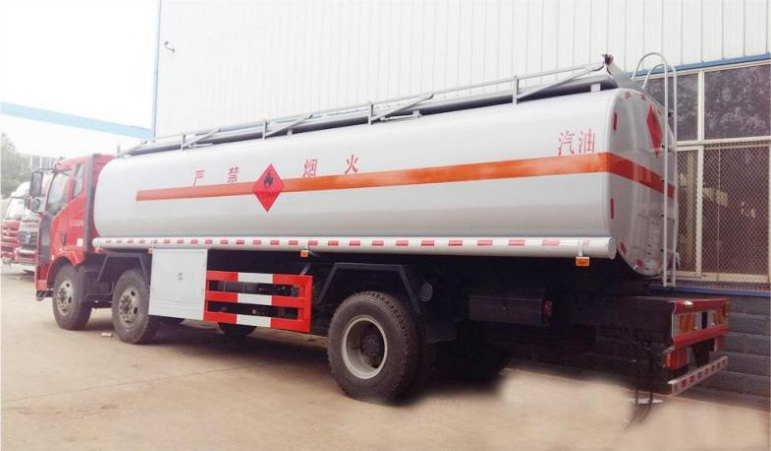

Jiefang Small Three-Axle 19m³ Refueling Truck
Model 5250GJYC5
Jiefang Small Three-Axle 19m³ Refueling Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 18.3m³ |
|---|---|
| Tank dimensions | 6950 × 2300 × 1500 mm |
| Rated payload | 14500 kg |
| Overall dimensions | 9730 × 2500 × 3350 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 10305 kg |
| Chassis model | CA1250PK2L5T3BE80 |
| Wheelbase | 1900+4000 mm |
| Engine model | BF6M2012-22E5 |
| Engine displacement | 6060 ml |
| Engine power | 165 kW |
| Horsepower | 224 hp |
| Tires | 10.00R20 |
| Additional configuration | itable for hazardous materials transportation; when transporting diesel (density 830kg/m³) and kerosene (density 800kg/m³), classification number 3, effective tank volume 18.3m³, external dimensions 6950×2300×1500mm; when transporting gasoline (density 700kg/m³), classification number 3, effective tank volume 21.7m³, external dimensions 6950×2440×1640mm; overall vehicle length/wheelbase/front overhang/rear overhang correspondence: 9730/1900+4700/1332/1798, 9730/1900+4000/1332/2498 (unit: mm). |
