Fuel Tanker Trucks

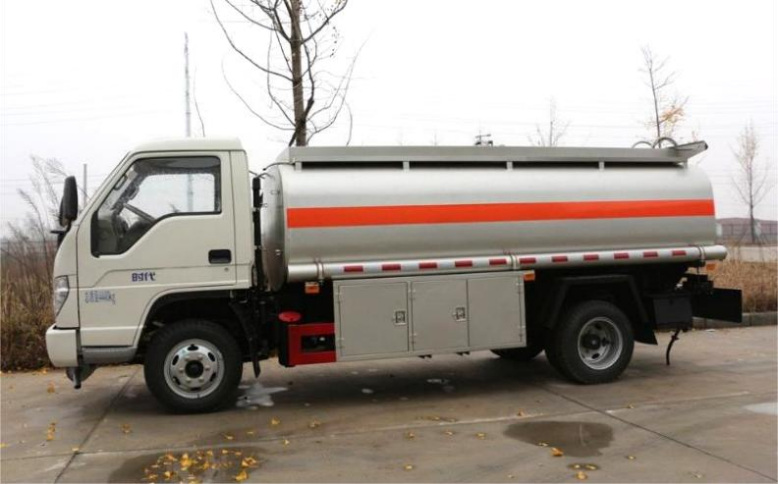

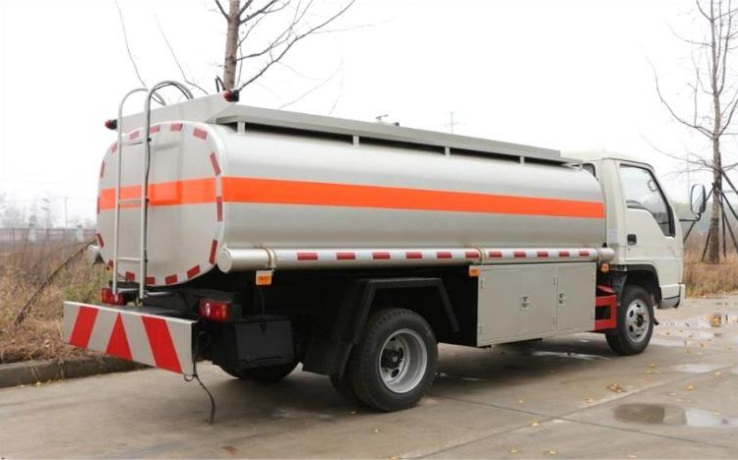

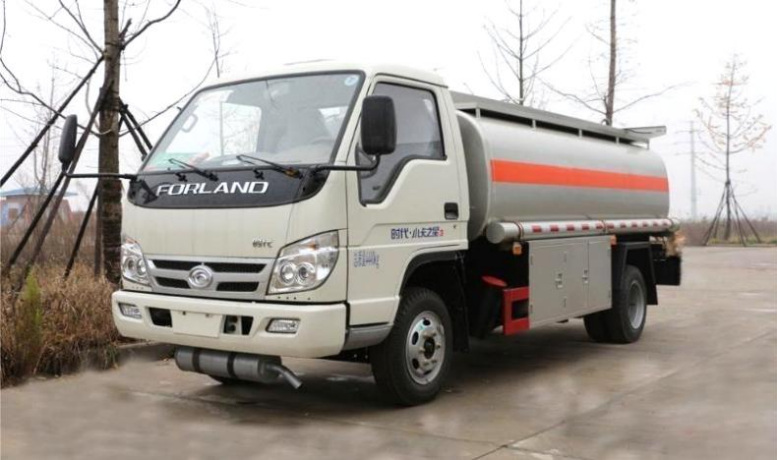

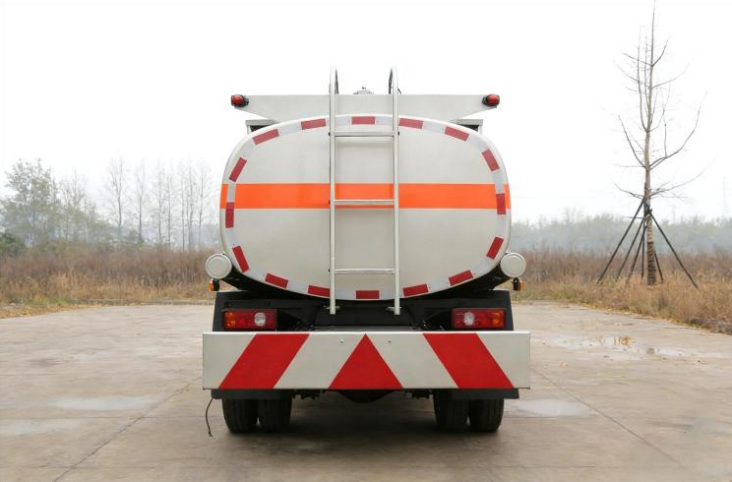

Foton Times Small Truck 6m³ Refueling Truck
Model 5073GJY8B
Foton Times Small Truck 6m³ Refueling Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 5.5m³ |
|---|---|
| Tank dimensions | 3200 × 1900 × 1250 mm |
| Rated payload | 3670 kg |
| Overall dimensions | 5990 × 2095 × 2500 mm |
| Gross vehicle mass | 7495 kg |
| Curb weight | 3630 kg |
| Chassis model | BJ1079VEJEA-AS |
| Wheelbase | 3360 mm |
| Engine model | CA4DC2-12E3 |
| Engine displacement | 3168 ml |
| Engine power | 88 kW |
| Horsepower | 120 hp |
| Tires | 7.00-16 |
| Additional configuration | This is a special refueling vehicle, with tank external dimensions of 3200×1900× 1250mm (actual total length 4000mm, including 800mm refueling machine installation section); The protection material is Q235 steel, the rear protection cross-section is 100×50mm with a ground clearance of 400mm; It can be optionally equipped with refueling machines, and is equipped with a speed limiter and ABS system. |
