Fuel Tanker Trucks

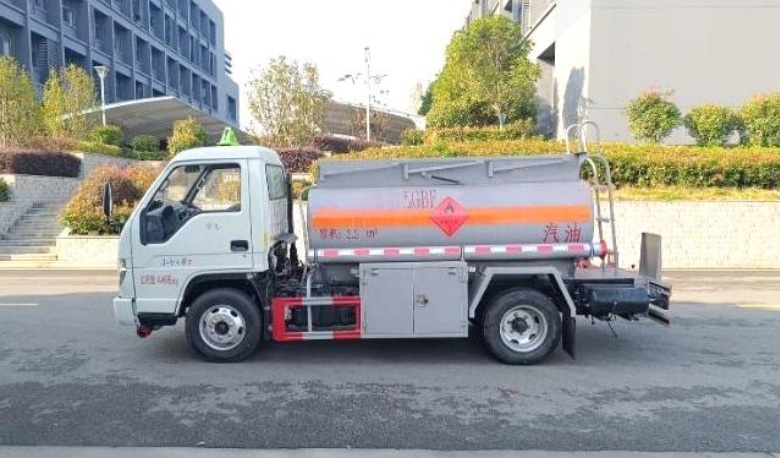

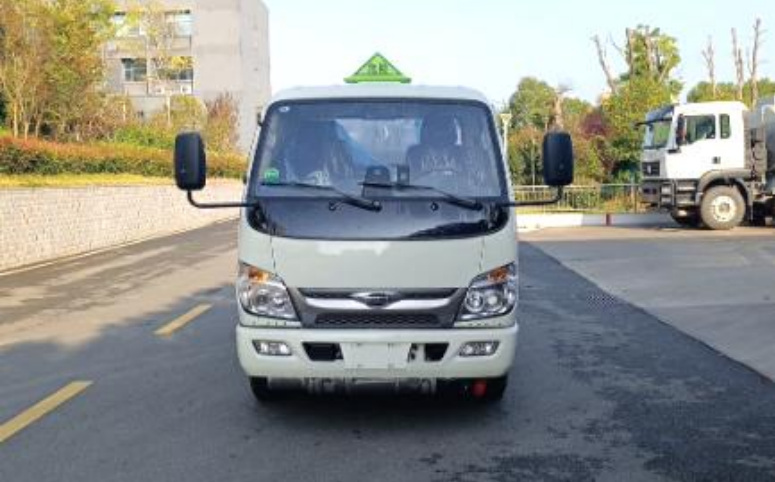

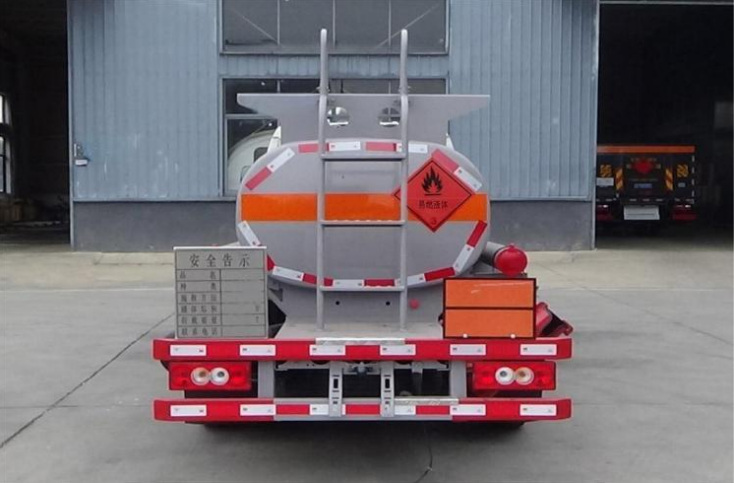

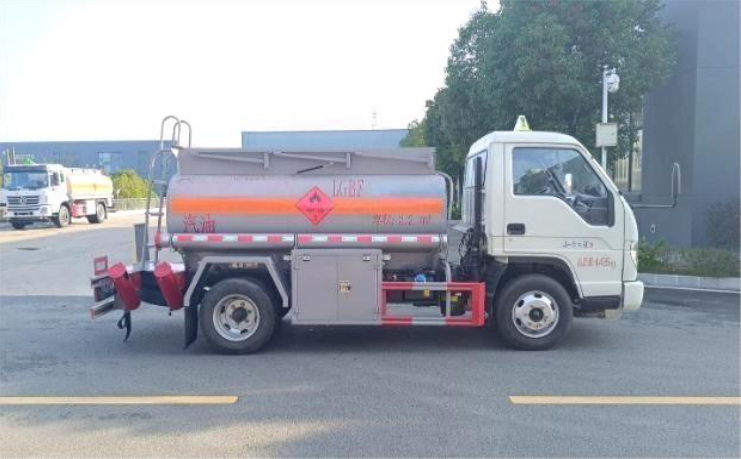

Foton Times Small Truck 2m³ Refueling Truck
Model 5041GJY6BWG
Foton Times Small Truck 2m³ Refueling Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 2.2m³ |
|---|---|
| Tank dimensions | 2900 × 1250 × 830 mm |
| Rated payload | 1470 kg |
| Overall dimensions | 5400 × 1890 × 2350 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 2895 kg |
| Chassis model | BJ1043V9JB5-54 |
| Wheelbase | 2850 mm |
| Engine model | Q23-115C60 |
| Engine displacement | 2300 ml |
| Engine power | 85 kW |
| Horsepower | 115 hp |
| Tires | 6.50R16LT 10PR |
| Additional configuration | ith power steering, knitted seats, manual windows, MP3, cruise control, driving recorder + T-BOX; front disc-rear drum brakes, 2T/5T axles (4.333 ratio), 6.50R16 steel tires, ABS, air brake, hazardous chemical chassis with dual warning; 2.2m³ tank (2.5m³ effective), Q235B steel (4.2mm cylinder, 4.5mm head, 4.2mm baffle), single-compartment single opening, full EU standard system, subsea valve with voice alarm, 60/30 pump (pump-in/out), optional high-flow dispenser + 15m thickened reel & gun; includes rear ladder, guardrails, toolbox etc., built to new standards, with gasoline/diesel tank test report, chassis/vehicle certificate and registration invoice. |
