Fuel Tanker Trucks

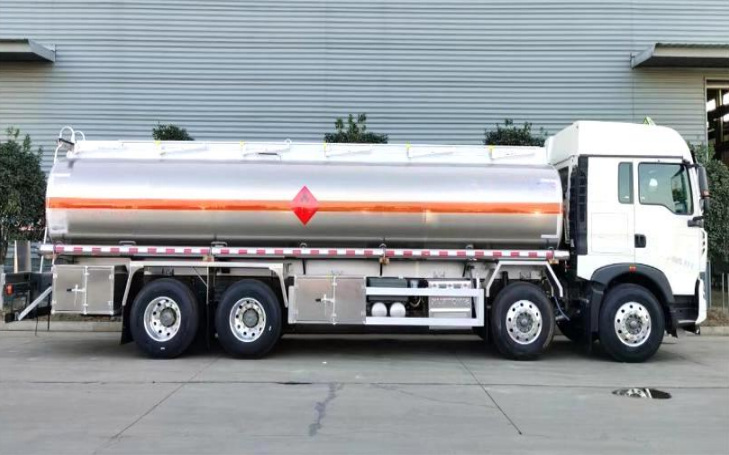

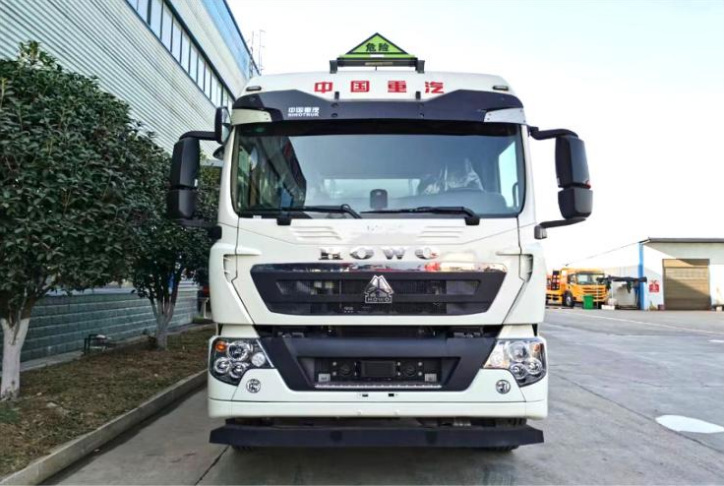

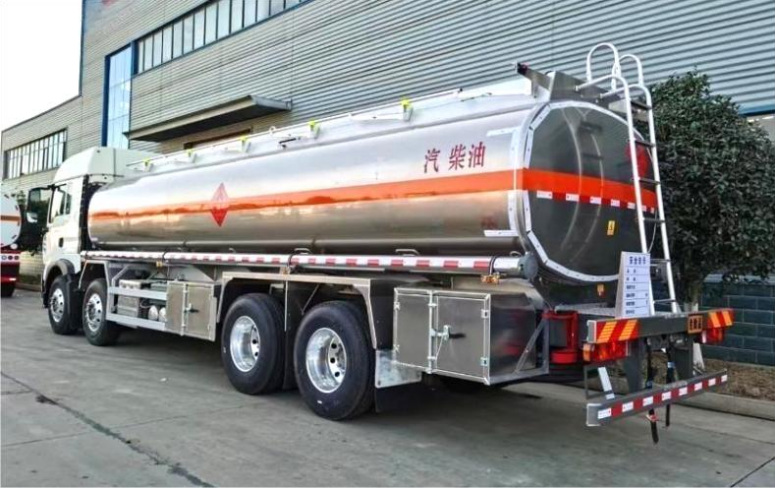

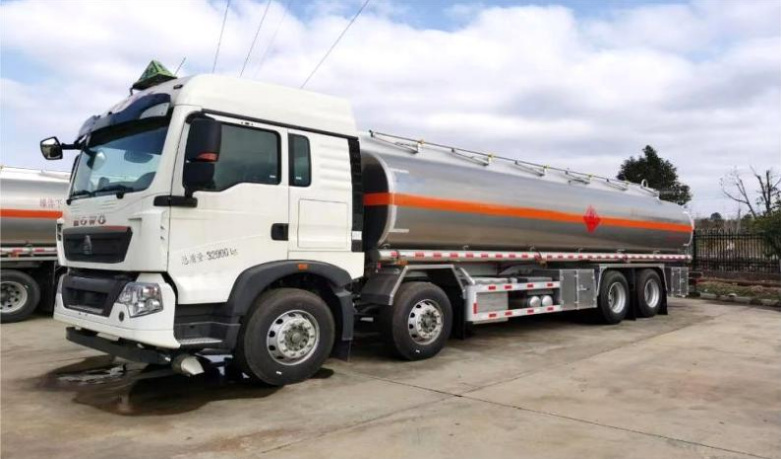

Sinotruk Howo 8×4 27m³ Oil Transport Truck
Model 5320GYYZ6
Sinotruk Howo 8×4 27m³ Oil Transport Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Transport medium | Gasoline & Diesel |
|---|---|
| Tank / body volume | 27.4m³ |
| Tank dimensions | 7200 × 2300 × 1600 mm |
| Rated payload | 18365 kg |
| Overall dimensions | 11850 × 2500 × 3335 mm |
| Gross vehicle mass | 32000 kg |
| Curb weight | 13505 kg |
| Chassis model | ZZ1327N466GF1K |
| Wheelbase | 1800+4575+1400 mm |
| Engine model | MC07.34-60 |
| Engine displacement | 6870 ml |
| Engine power | 251 kW |
| Horsepower | 341 hp |
| Tires | 12R22.5 18PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 9000×2300×1600mm; The side and rear protections are bolt-connected, the rear protection cross-section is 140×50mm with a ground clearance of 490mm; It is equipped with a speed limiter (limited to 80km/h), a satellite-positioning driving recorder and EBS system, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC on-board devices and other configurations. |
