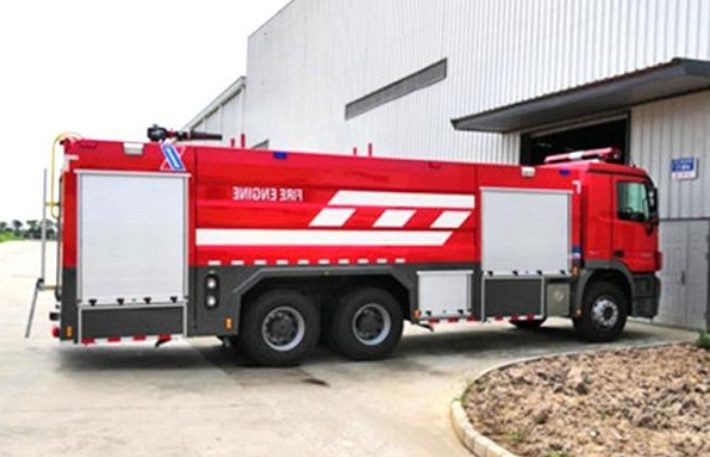

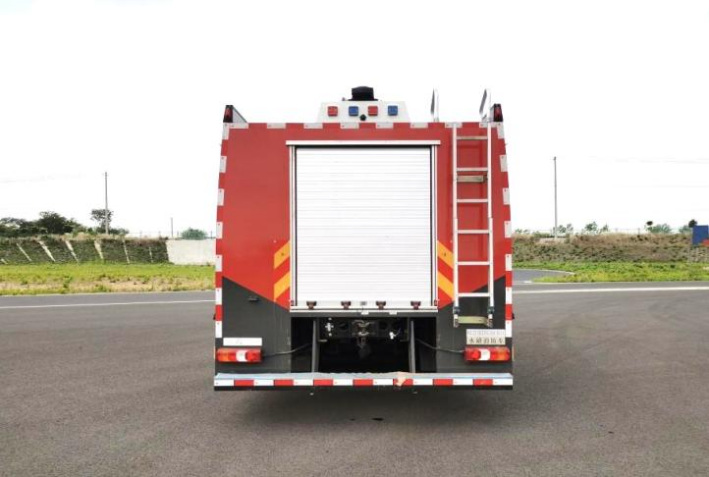

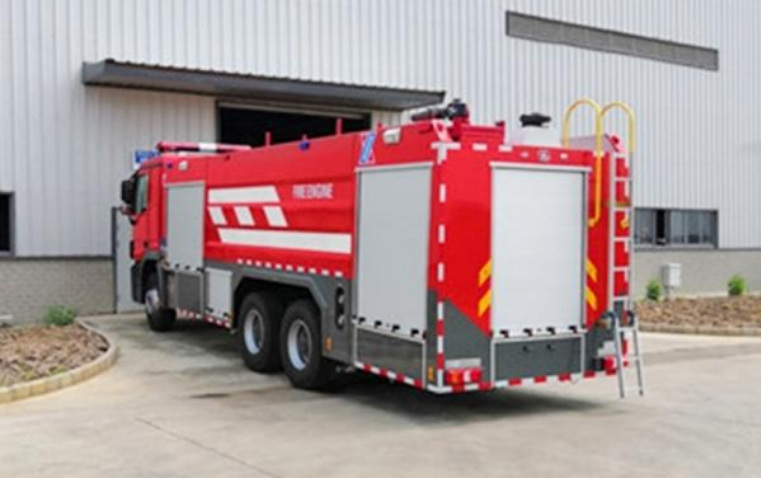

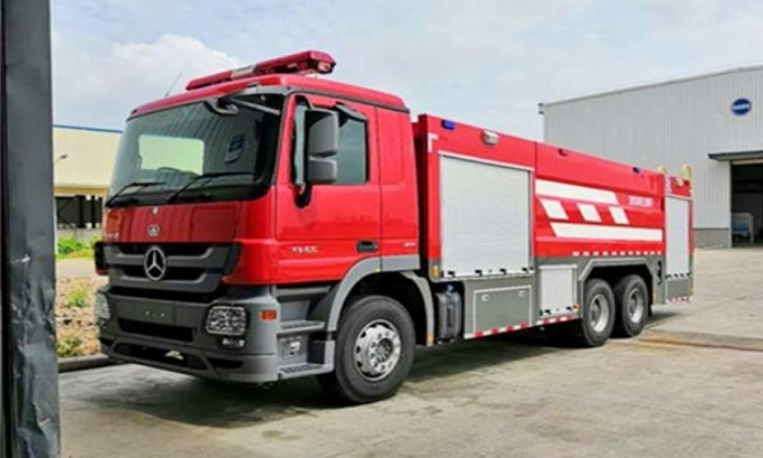

Mercedes-Benz 16 Ton Foam Fire Truck
Model 5310GXFSG160/BVIA
This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 16.0m³ |
|---|---|
| Tank dimensions | Left:1400 × 1450 × 1470 mm Right:3830 × 2450 × 1470 mm |
| Rated payload | 16000 kg |
| Overall dimensions | 10260 × 2550 × 3580 mm |
| Gross vehicle mass | 31150 kg |
| Curb weight | 14700 kg |
| Chassis model | Arocs |
| Wheelbase | 4500+1350 mm |
| Engine model | OM471LA.6-61 |
| Engine displacement | 12809 ml |
| Engine power | 351 kW |
| Horsepower | 477 hp |
| Tires | 385/65R22.5 |
| Additional configuration | This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons. The water tank is a "convex" shaped special tank, with an integrated side protection structure. The rear protection device is made of Q235A material, with a cross-section of 120× 120mm, bolt-connected, and 420mm above the ground. Equipped with an EBS system. |
