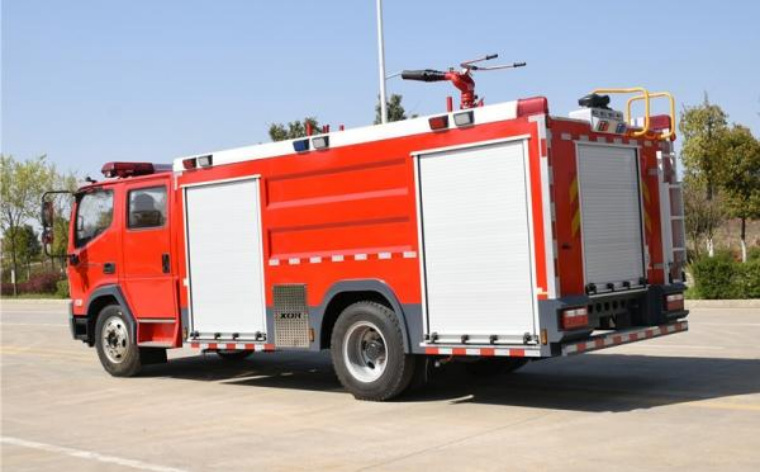

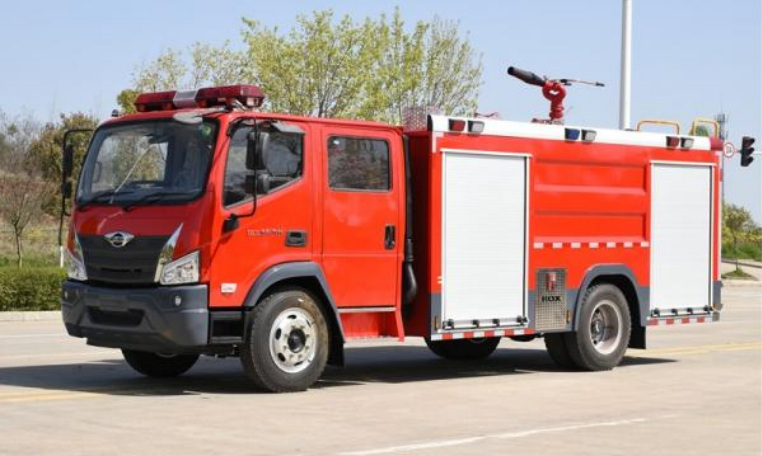

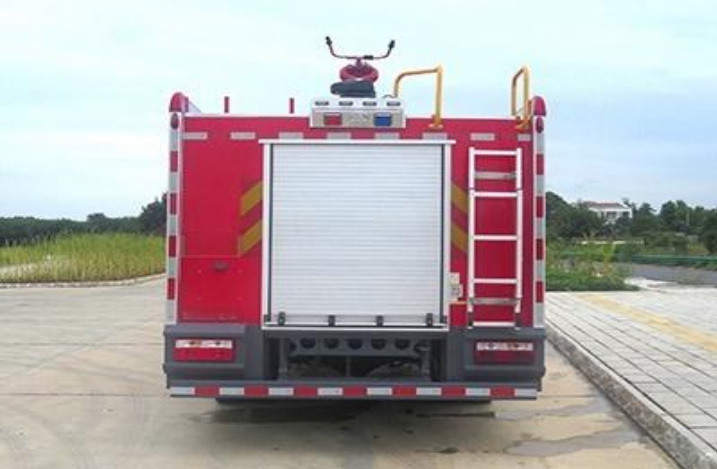

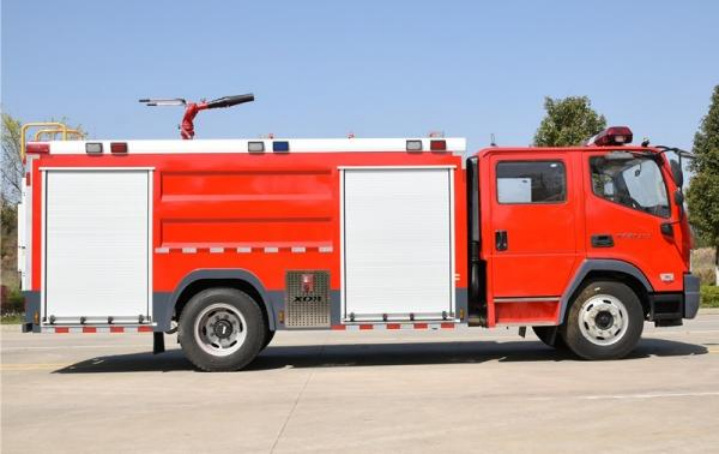

Foton 6-ton Foam Fire Truck
Model 5140GXFPM60/B6
This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 5.89m³ |
|---|---|
| Tank dimensions | 1440 × 2350 × 1330 mm |
| Rated payload | 5890 kg |
| Overall dimensions | 7745 × 2450 × 3280 mm |
| Gross vehicle mass | 13590 kg |
| Curb weight | 7250 kg |
| Chassis model | BJ1144VKFD-02 |
| Wheelbase | 4300 mm |
| Engine model | WP4.1NQ190E61 |
| Engine displacement | 4088 ml |
| Engine power | 140 kW |
| Horsepower | 190 hp |
| Tires | 8.25R20 16PR |
| Additional configuration | This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons. The water tank volume is 4.3 cubic meters, the foam liquid tank volume is 1.59 cubic meters, and the foam liquid tank dimensions are 1090×1150×1330mm. It adopts an integrated side protection structure. The rear protection device is made of Q235A material, with a cross-section (width×height) of 120×60mm, bolt-connected to the vehicle, and the rear protection is 480mm above the ground. Equipped with an ABS system, optional red strobe lights can be installed. |
