Foam Fire Trucks

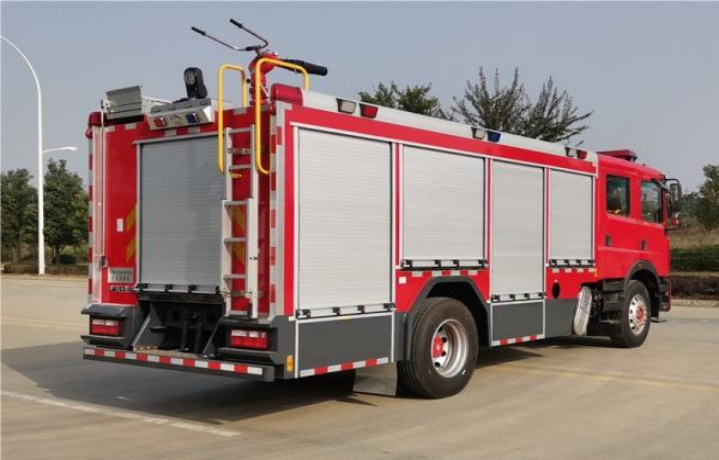

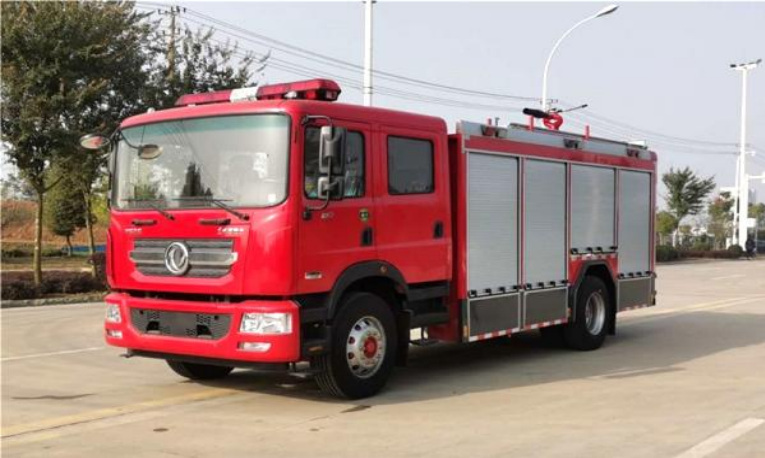

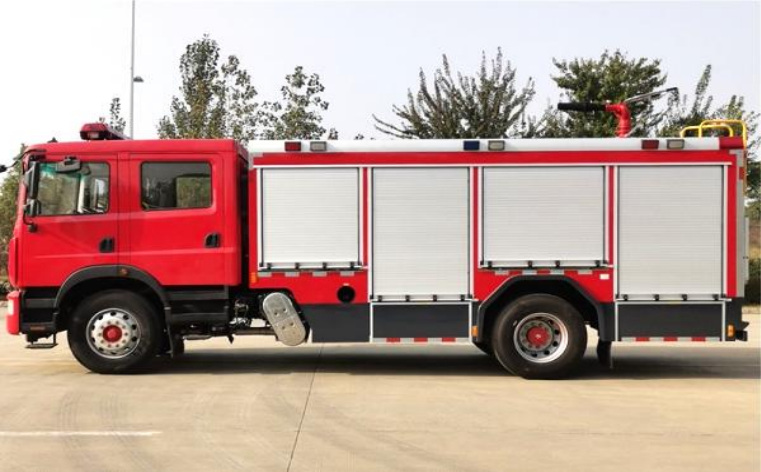

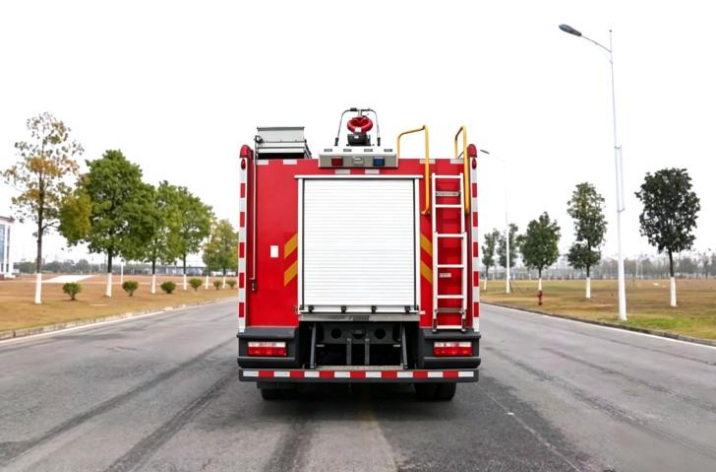

Dongfeng 7 Ton Foam Fire Truck
Model 5170GXFPM70/E6
This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 6.961m³ |
|---|---|
| Tank dimensions | 2095 × 1050 × 1190 mm |
| Rated payload | 7000 kg |
| Overall dimensions | 8220 × 2500 × 3550 mm |
| Gross vehicle mass | 17000 kg |
| Curb weight | 9550 kg |
| Chassis model | EQ1185DJ9CDF |
| Wheelbase | 4700 mm |
| Engine model | B6.2NS6B230 |
| Engine displacement | 6200 ml |
| Engine power | 169 kW |
| Horsepower | 229 hp |
| Tires | 295/80R22.5 18PR |
| Additional configuration | This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons. The water tank volume is 5.0 cubic meters, the foam liquid tank volume is 1.961 cubic meters, and the foam liquid tank dimensions are 1030×1400×1420mm. It adopts an integrated side protection structure. The rear protection device is made of Q235A material, with a cross-section of 60×120mm, bolt-connected, and 495mm above the ground. Optional red strobe lights and rear ladders can be installed. |
