Foam Fire Trucks

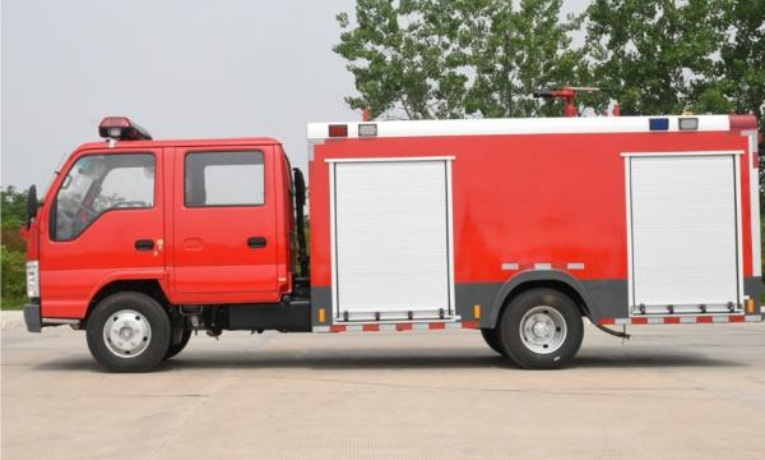

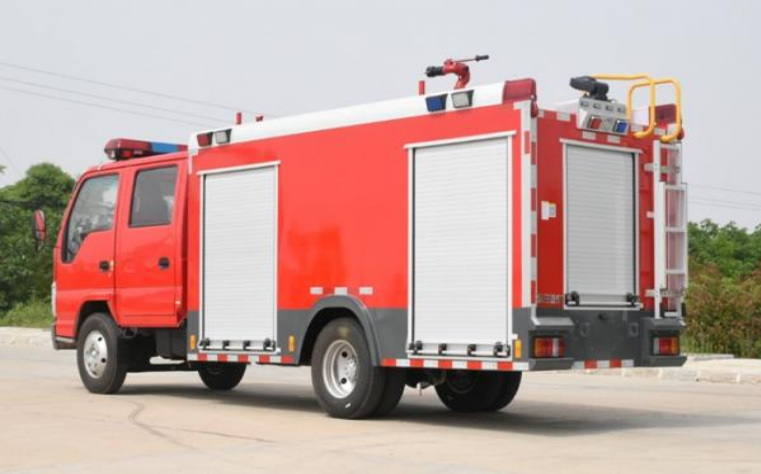

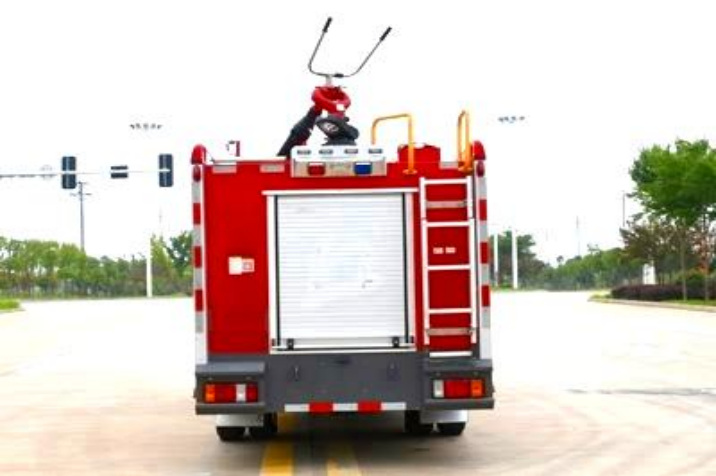

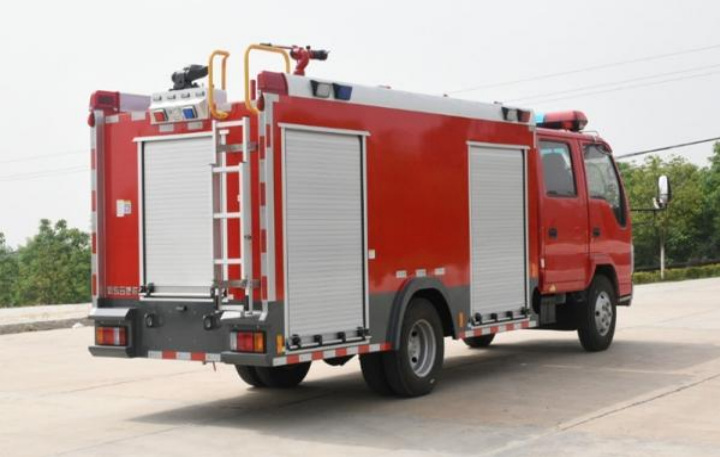

Isuzu 2.5 Ton Foam Fire Truck
Model 5070GXFPM20/Q6
This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 2.5m³ |
|---|---|
| Tank dimensions | 840 × 1840 × 1100 mm |
| Rated payload | 1850 kg |
| Overall dimensions | 6920 × 1950 × 2950 mm |
| Gross vehicle mass | 6800 kg |
| Curb weight | 4575 kg |
| Chassis model | QL1070BUKWY |
| Wheelbase | 3815 mm |
| Engine model | 4KH1CN6LB |
| Engine displacement | 2999 ml |
| Engine power | 88 kW |
| Horsepower | 119 hp |
| Tires | 7.00R16LT 14PR |
| Additional configuration | This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons. The foam liquid tank volume is 0.225 cubic meters, and the foam liquid tank dimensions are 425×1840×300mm. It adopts an integrated side and rear protection structure, with the rear protection 425mm above the ground. Equipped with an ABS system, cab styles and vehicle side appearance styles can be optionally installed with the chassis. |
