Asphalt Distributor Trucks

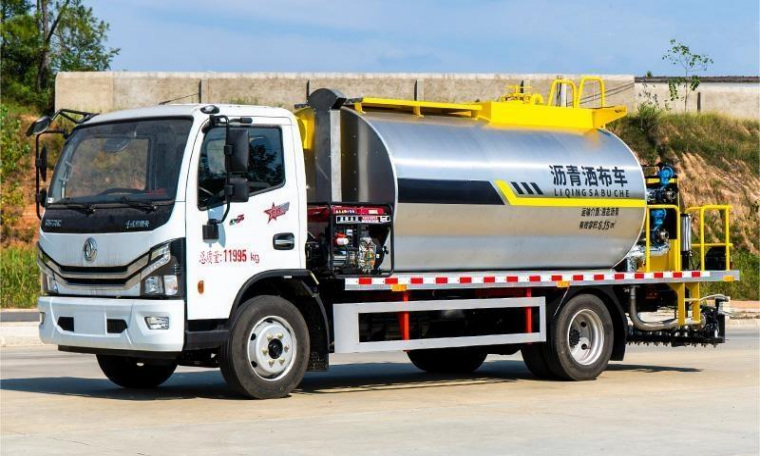

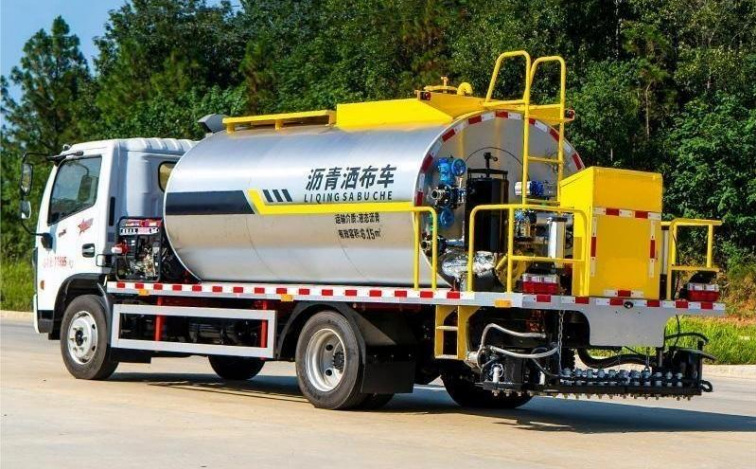

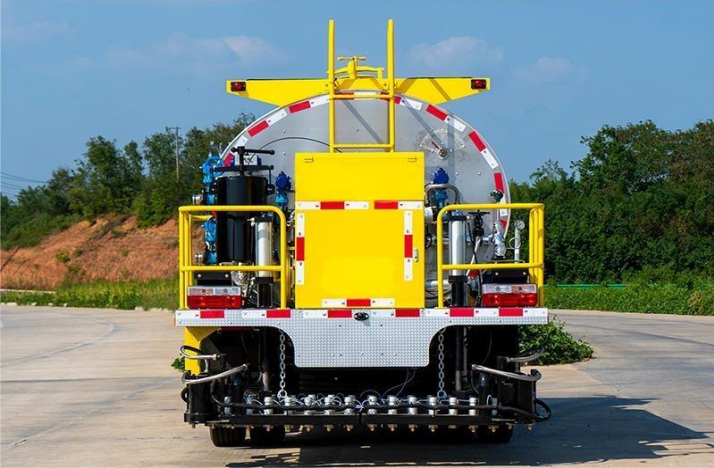

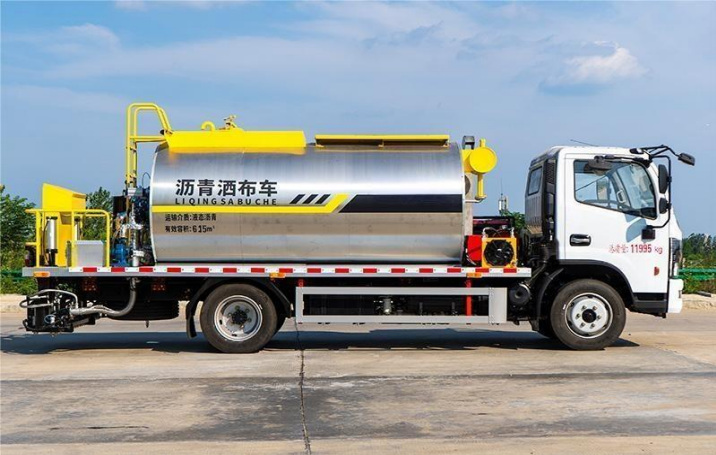

Dongfeng Daduolika 7m³ Asphalt Distributor Truck
Model 5120GLQE6
A 7m³ asphalt distributor truck for controlled liquid-asphalt spraying in road construction and maintenance.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated payload | 5600 kg |
|---|---|
| Overall dimensions | 7540 × 2300 × 3000 mm |
| Gross vehicle mass | 11995 kg |
| Curb weight | 6265 kg |
| Chassis model | EQ1125SJ8CDC |
| Wheelbase | 3800 mm |
| Engine model | YCY30165-60 |
| Engine displacement | 2970 ml |
| Engine power | 121 kW |
| Horsepower | 164 hp |
| Tires | 245/70R19.5 16PR |
| Maximum speed | 89 km/h |
| Special notes | This vehicle is mainly used for road asphalt spreading. The upfit includes a tank and asphalt spraying device for liquid asphalt with a density of 900 kg/m³. The side protection is bolted Q235B; the rear protection is replaced by the working device, with its lower edge 340 mm above the ground. The vehicle is equipped with ABS, uses the 3800 mm-wheelbase chassis only and has an 89 km/h speed limiter. The cab and optional rear structure are selected with the chassis. Rear lighting is for stationary operation only and must not be used while driving. |
| Upper Body | Asphalt tank capacity 7m³, insulation layer is 50mm rock wool covered with stainless steel; Equipped with Zhejiang Shanggui QGB680 asphalt pump (680L/min), RY40-25-160 heat conduction oil pump, HM05-90-BD40 asphalt pump motor, EFRD-G03-160-3-6-31 proportional valve; Adopt Riello burner G20 + full heating of heat conduction oil, 32 one-control-one intelligent nozzles at the rear, touch screen computer control in the cab + rear work platform operation; Asphalt spraying amount 0.25-3L/㎡, spraying width ≤4.5m, supports pneumatic/diesel cleaning, can spray emulsified asphalt, hot asphalt, modified asphalt. |
