Asphalt Distributor Trucks

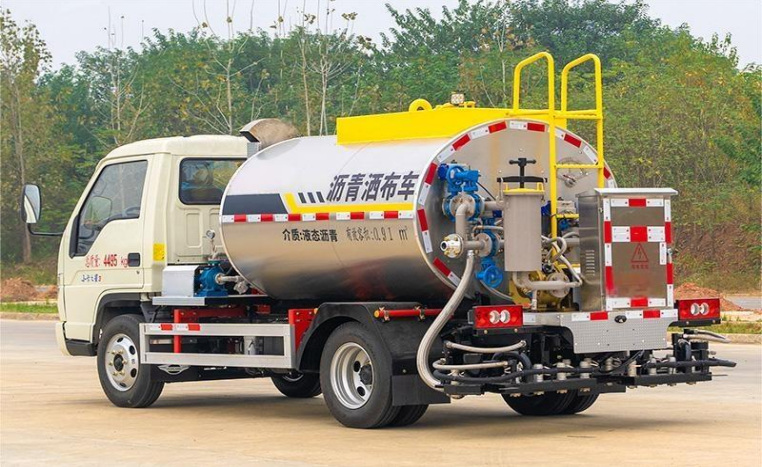

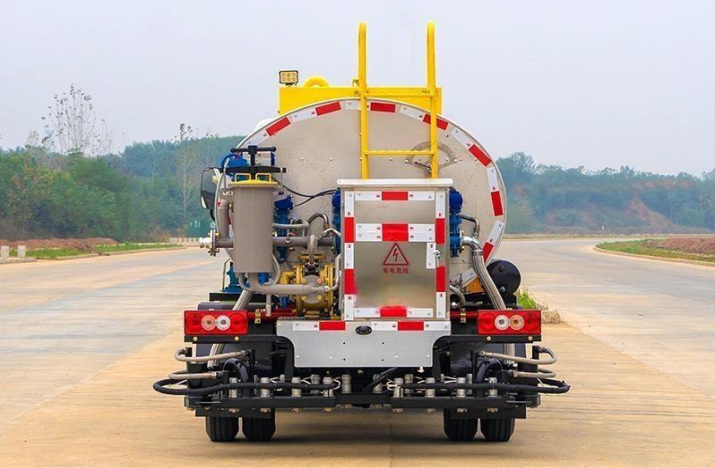

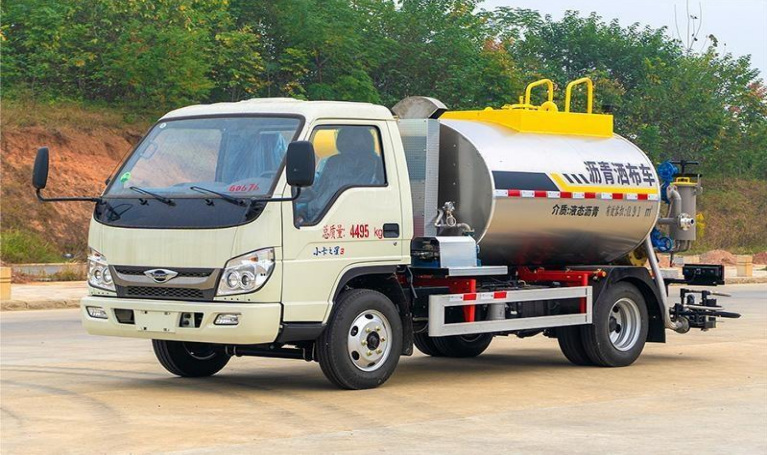

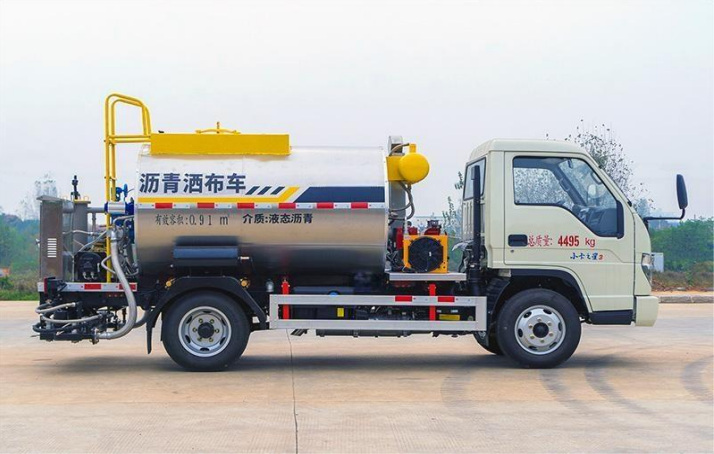

Foton Xiaoka Star 3m³ Asphalt Distributor Truck
Model 5041GLQE6
A 3m³ asphalt distributor truck for controlled liquid-asphalt spraying in road construction and maintenance.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated payload | 645 kg |
|---|---|
| Overall dimensions | 5435 × 1950 × 2530 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 3720 kg |
| Chassis model | BJ1045V9JB5-54 |
| Wheelbase | 2850 mm |
| Engine model | Q23-132E60 |
| Engine displacement | 2300 ml |
| Engine power | 97 kW |
| Horsepower | 131 hp |
| Tires | 6.50R16LT 10PR |
| Special notes | This vehicle is mainly used for road asphalt spreading, with special devices including a tank and an asphalt spraying device. The medium is liquid asphalt with a density of 900 kg/m³. The side protection is Q235B material connected by bolts, and the rear protection is replaced by a special device, with a lower edge height of 280mm from the ground. Equipped with ABS system, equipped with a speed limiter (speed limited to 80km/h). The cab is selected with the chassis. Operation headlights are installed at the rear (only used in operation state). The tank insulation layer is 270mm thick. |
