Water Tank Fire Trucks

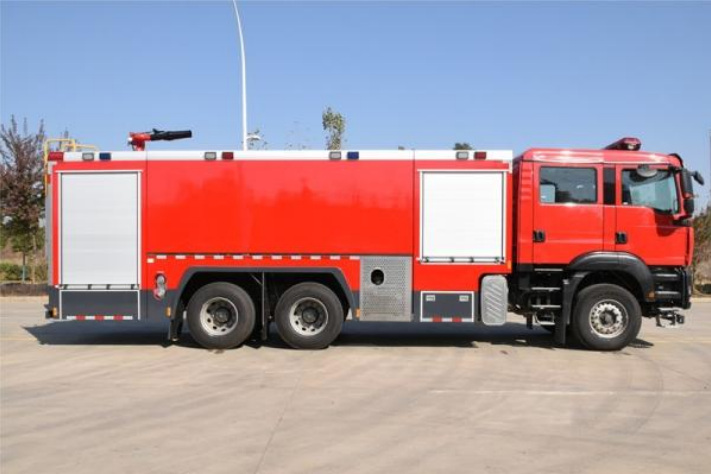

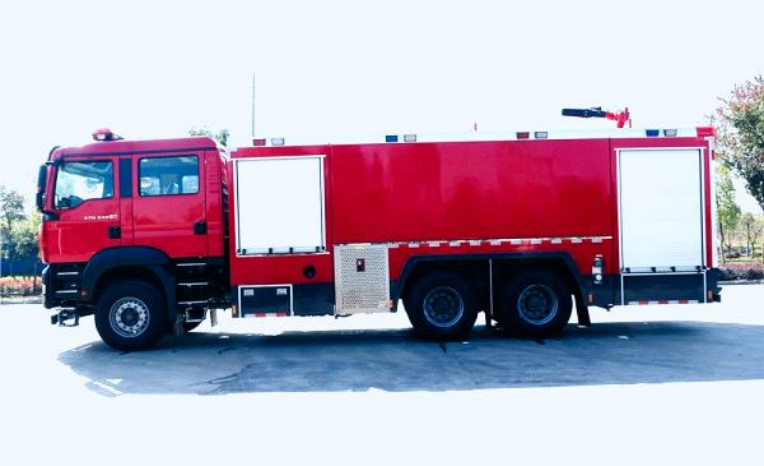

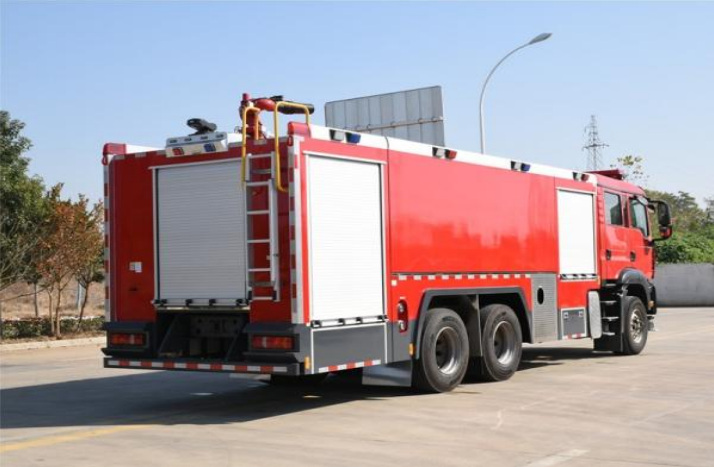

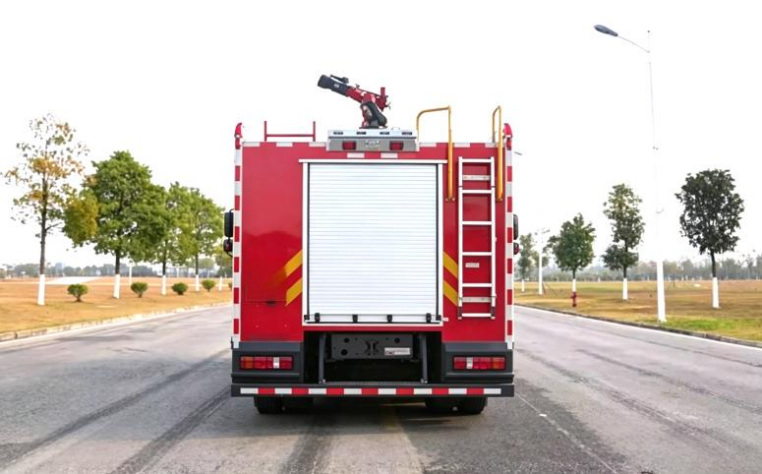

Sinotruk Sitrak 15 Ton Water Tank Fire Truck
Model 5310GXFPM150/G6
Sinotruk Sitrak 15 Ton Water Tank Fire Truck (5310GXFPM150/G6) is configured for firefighting and emergency-response work, with tank dimensions of 3250 × 2460 × 1570 mm.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 14.94m³ |
|---|---|
| Tank dimensions | 3250 × 2460 × 1570 mm |
| Rated payload | 15000 kg |
| Overall dimensions | 10300 × 2550 × 3640 mm |
| Gross vehicle mass | 31000 kg |
| Curb weight | 15550 kg |
| Chassis model | ZZ5356V524MF5 |
| Wheelbase | 5800+1400 mm |
| Engine model | WP10.5H460E62 |
| Engine displacement | 10520 ml |
| Engine power | 338 kW |
| Horsepower | 459 hp |
| Tires | 385/65R22.5 18PR |
| Additional configuration | This vehicle is a foam fire truck, with special devices including fire pumps and fire cannons. The water tank volume is 12.0 cubic meters, the foam liquid tank volume is 2.941 cubic meters, and the foam liquid tank dimensions are 795×2460×1570mm. It adopts an integrated side protection structure, the rear protection is bolt-connected with Q235A material, with a cross-section (height×width) of 120×60mm and a ground clearance of 460mm. Optional red strobe lights, vehicle side appearance styles, and exhaust gas treatment device installation positions with the chassis can be installed. |
