Water Tank Fire Trucks

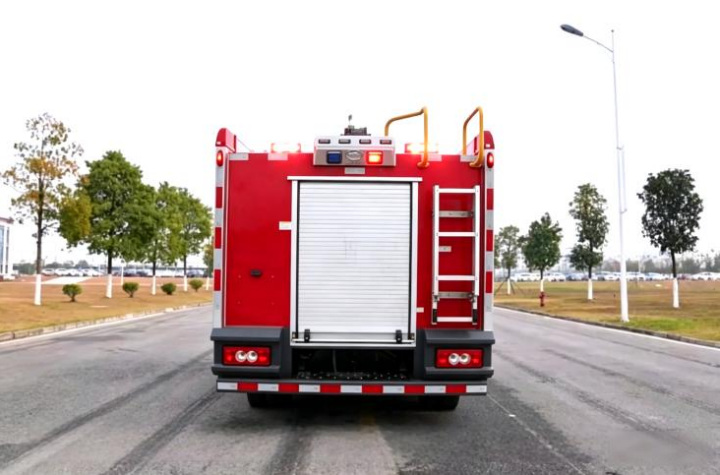

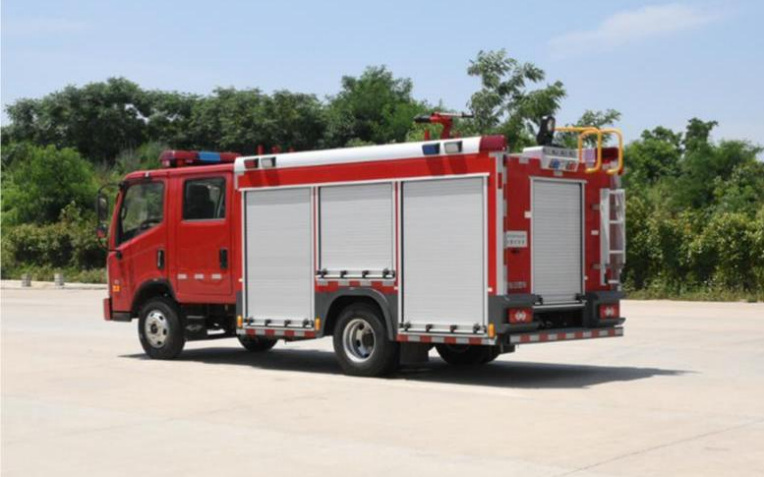

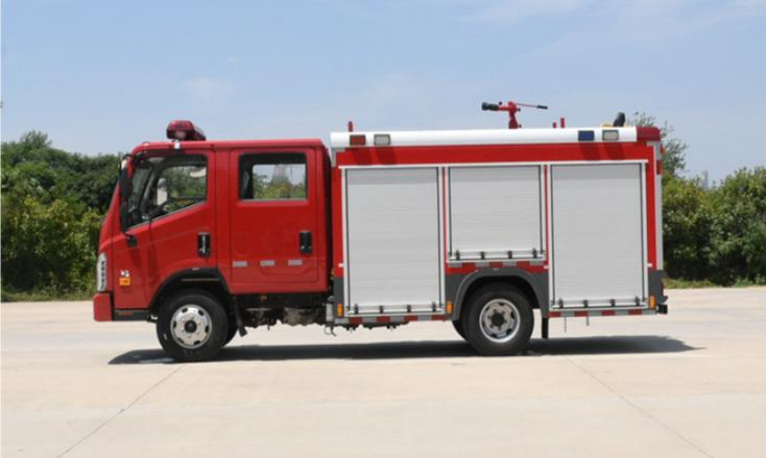

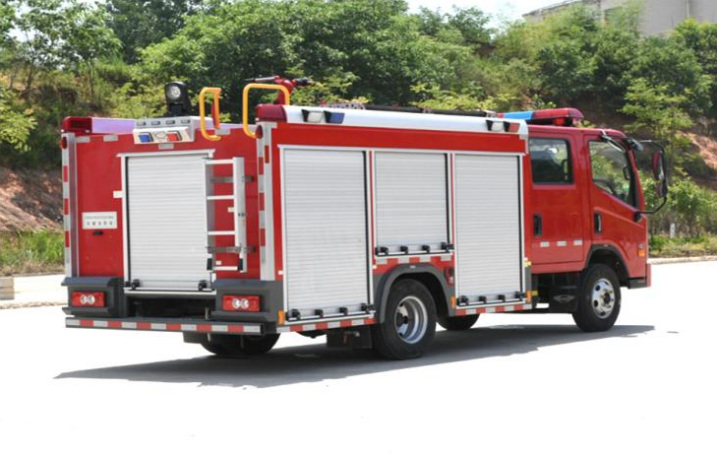

Foton 2.5-ton Water Tank Fire Truck
Model 5070GXFSG25/B6A
This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 2.5m³ |
|---|---|
| Tank dimensions | 2095 × 1050 × 1190 mm |
| Rated payload | 2500 kg |
| Overall dimensions | 6370 × 2120 × 2800 mm |
| Gross vehicle mass | 7130 kg |
| Curb weight | 4180 kg |
| Chassis model | BJ1076VEADA-51 |
| Wheelbase | 3360 mm |
| Engine model | Q23-115C60 |
| Engine displacement | 2300 ml |
| Engine power | 85 kW |
| Horsepower | 115 hp |
| Tires | 7.50R16LT 14PR |
| Additional configuration | This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons. The side protection is an integral side protection structure, and the rear protection is bolt-connected with Q235A material, with a cross-section size of 50×100mm and a ground clearance of 430mm. Equipped with ABS system, optional red strobe lights and cab appearance can be installed. |
