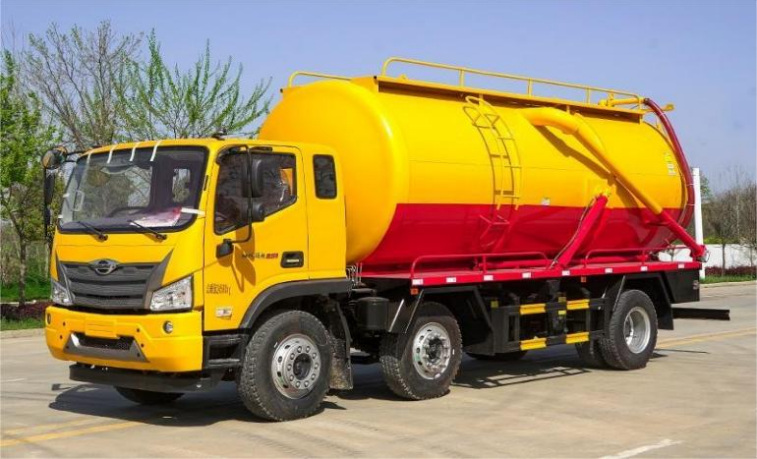

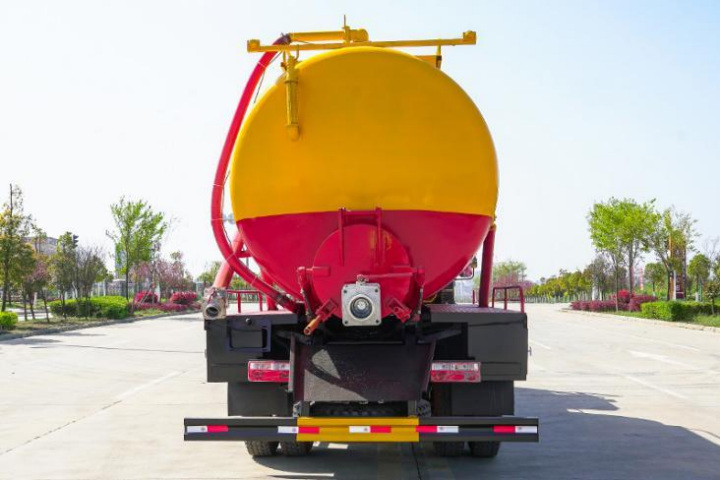

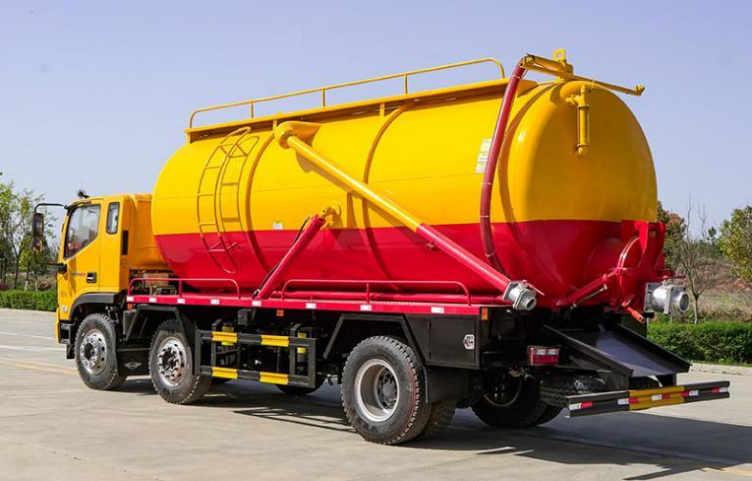

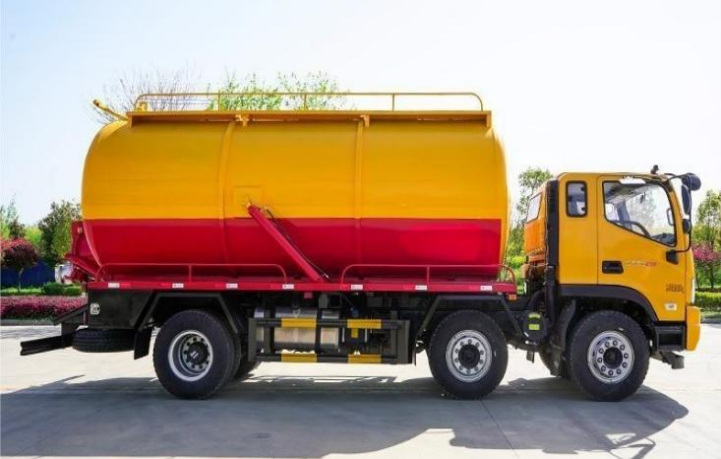

Foton Small Three Axle 17m³ Vacuum Sewage Truck
Model 5240GXWEB6
Foton Small Three Axle 17m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 16.57m³ |
|---|---|
| Tank dimensions | 6200 × 2000 × 1400 mm |
| Rated payload | 12625 kg |
| Overall dimensions | 9150 × 2500 × 3750 mm |
| Gross vehicle mass | 24500 kg |
| Curb weight | 11680 kg |
| Chassis model | BJ1244VNFB-01 |
| Wheelbase | 1800+3600 mm |
| Engine model | WP4.6NQ220E61 |
| Engine displacement | 4600 ml |
| Engine power | 162 kW |
| Horsepower | 220 hp |
| Tires | 10.00R20 18PR |
| Additional configuration | For suction of liquid sewage in urban sewers, core device: lift-equipped sewage tank (total/effective cap.16.57/15.78m³, medium liquid sewage density800kg/m³, dims total length×diameter6100× 2100mm, straight section5400mm, single head350mm), side protection Q235B bolted, rear protection Q235B welded (section60× 160mm, ground clearance490mm), ABS model CM4XL-4S/4M, optional new front grille/logo etc., chassis-optional fuel tank/filter/air tank/urea tank/battery positions. |
