Vacuum Trucks

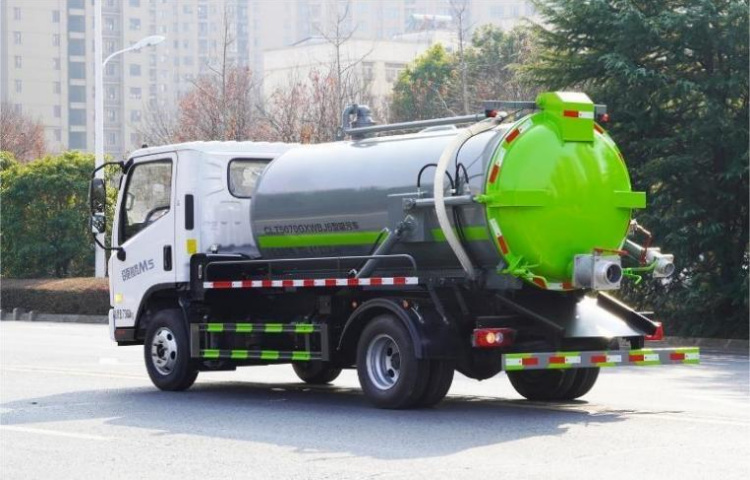

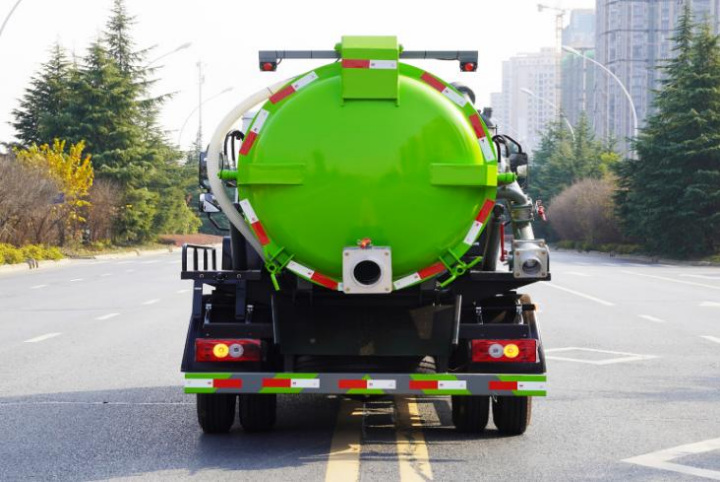

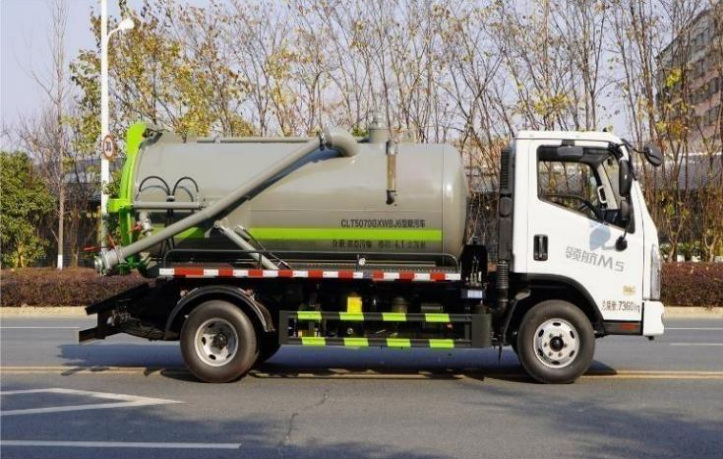

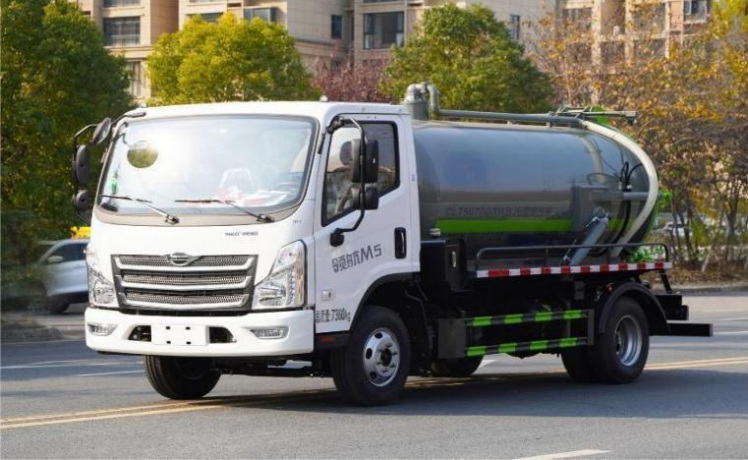

Foton Pilot M5 4m³ Vacuum Sewage Truck
Model CLT5070GXWBL6
Foton Pilot M5 4m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 4.1m³ |
|---|---|
| Tank dimensions | 3800 × 1800 × 1000 mm |
| Rated payload | 3135 kg |
| Overall dimensions | 5995 × 2100 × 2700 mm |
| Gross vehicle mass | 7360 kg |
| Curb weight | 4000 kg |
| Chassis model | BJ1076VEJDA-51 |
| Wheelbase | 3360 mm |
| Engine model | Q23-120C60 |
| Engine displacement | 2300 ml |
| Engine power | 96 kW |
| Horsepower | 130 hp |
| Tires | 7.00R16LT 14PR |
| Additional configuration | This vehicle is suitable for sewage suction sanitation and sewer waste treatment, with 4.12 cubic meters effective tank volume and dimensions 3800×1800×1000mm; side and rear protection are Q235 steel bolted, rear protection cross-section 120×50mm, ground clearance 450mm; equipped with ABS, only 3360mm wheelbase is used, and configurations like sewage suction pipes, toolboxes can be optionally installed |
