Sewer Jetting Trucks

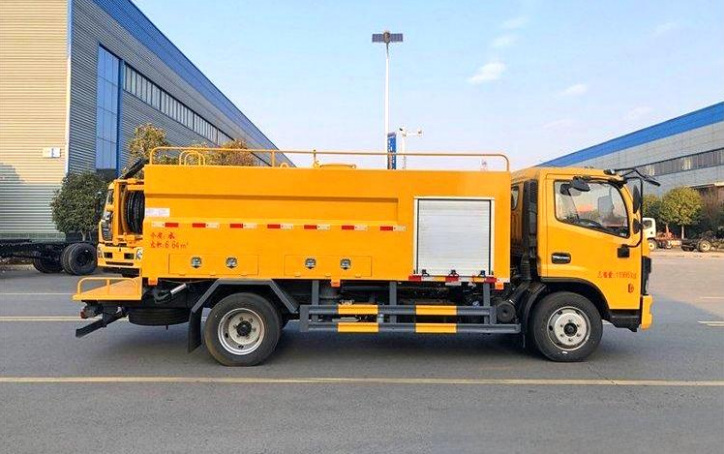

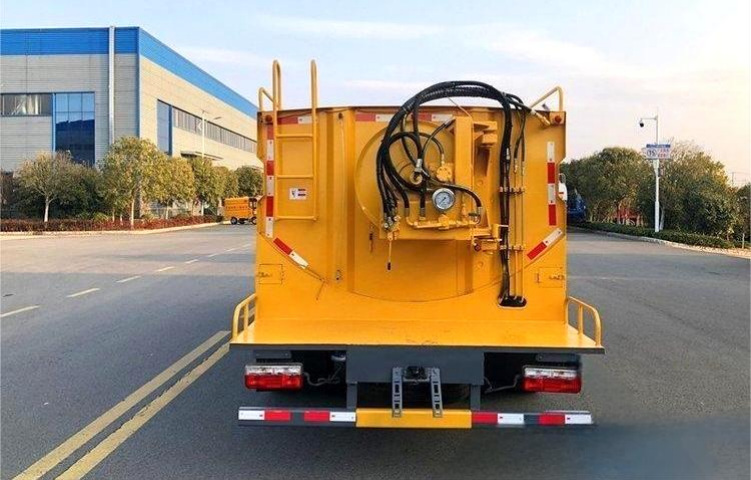

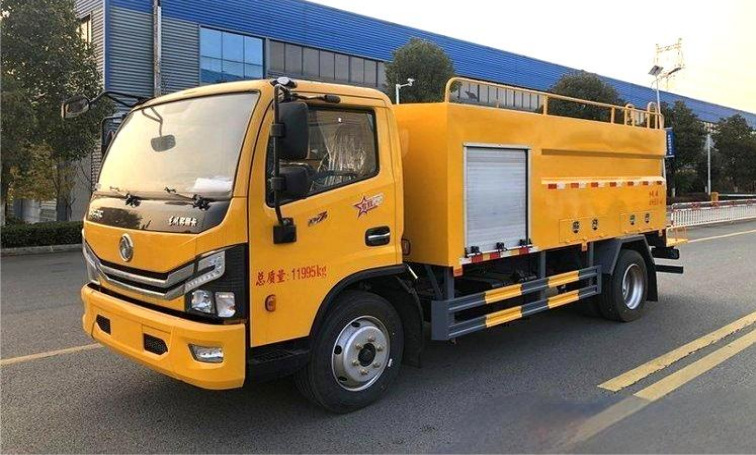

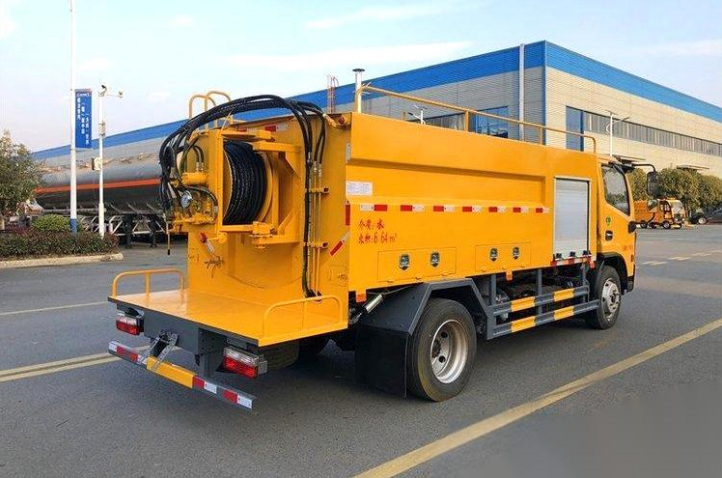

Dongfeng Duolika 6m³ Sewer Jetter & Cleaning Truck
Model 5120GQX6HQ
Dongfeng Duolika 6m³ Sewer Jetter & Cleaning Truck configured for sewer cleaning and pipeline dredging.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 6.64m³ |
|---|---|
| Tank dimensions | 3000 × 2150 × 1300 mm |
| Rated payload | 6395 kg |
| Overall dimensions | 6920 × 2350 × 2710 mm |
| Gross vehicle mass | 11995 kg |
| Curb weight | 5470 kg |
| Chassis model | EQ1125SJ8CDC |
| Wheelbase | 4200 mm |
| Engine model | D4.0NS6B195 |
| Engine displacement | 4000 ml |
| Engine power | 143 kW |
| Horsepower | 194 hp |
| Tires | 245/70R19.5 16PR |
| Additional configuration | This vehicle mainly drives the high-pressure pump through the power take-off. The high-pressure pump converts ordinary water into high-pressure low-speed water, which is sent to the high-pressure pipeline and reaches the high-pressure nozzle with a certain energy for sewer dredging and cleaning operations. The medium is water. The effective volume of the tank is 6.33 cubic meters, with a density of 1000 kg/m³. Both side and rear protections are connected by welding. The rear protection section size is 100×45mm, and the lower edge height from the ground is 400mm. Equipped with ABS system. The cab, tank and rear devices, chassis accessory air reservoir and urea tank installation positions, side appearance, and air pump cover can be optionally installed with the chassis. Only chassis with a wheelbase of 4200mm are selected. |
