Prisoner Transport Vehicles

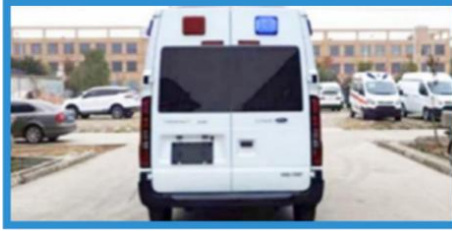

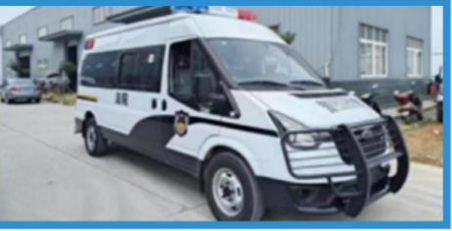

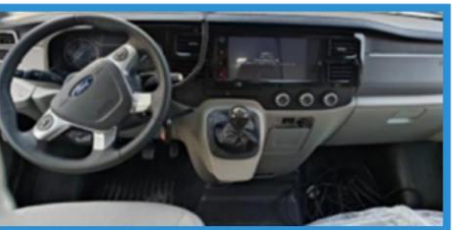

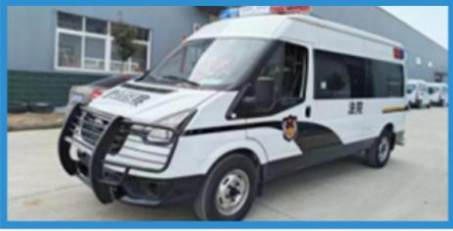

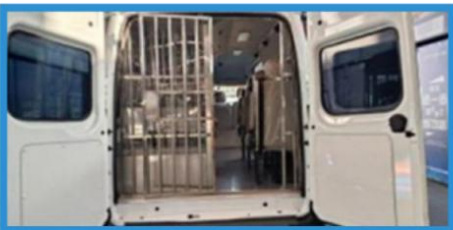

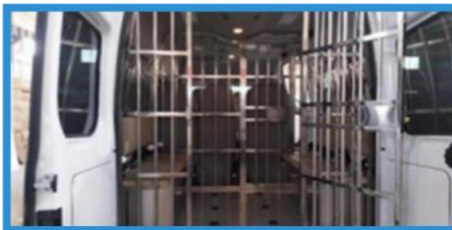

Ford V348 Long Wheelbase Medium Roof Prison Van
Model 5040XQC6QT
Ford V348 Long Wheelbase Medium Roof Prison Van is configured for secure supervised transport in law-enforcement operations.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5995, 5820, 5780 × 1974 × 2570 mm |
|---|---|
| Gross vehicle mass | 3700 kg |
| Curb weight | 2590 kg |
| Chassis model | JX6581TA-M6 |
| Wheelbase | 3750 mm |
| Engine model | DURATORQ4D226H |
| Engine displacement | 2198 ml |
| Engine power | 103 kW |
| Fuel type | Diesel |
| Emission standard | China VI (China VI (GB 17691-2018)) |
| Tires | 215/75R16LT |
| Axles | 2 |
| Maximum speed | 145 km/h |
| Rated passengers | 15, 11-14 |
