Mobile Service Vehicles
BAIC Ace Mobile Service Vehicle
Model EHY5020XDWB6QT

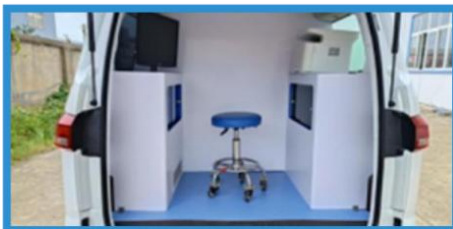

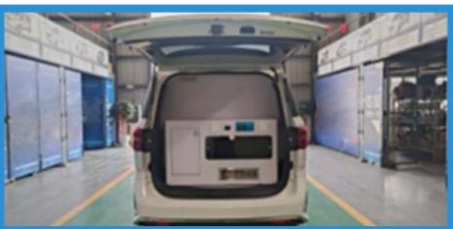

BAIC Ace Mobile Service Vehicle provides a mobile workspace for field service and public-service operations.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5240 × 1870 × 1950 mm |
|---|---|
| Gross vehicle mass | 2315 kg |
| Curb weight | 1640 kg |
| Chassis model | BAW6521MAA |
| Wheelbase | 3200 mm |
| Engine model | LQ475QMB |
| Engine displacement | 1590 ml |
| Engine power | 86 kW |
| Fuel type | Gasoline |
| Emission standard | China 6 (China 6 (GB 18352.6-2016)) |
| Tires | 215/65R16, 205/65R16LT 8PR |
| Axles | 2 |
| Maximum speed | 140 km/h |
| Rated passengers | 2-7 |
