Bitumen Tanker Semi-Trailers

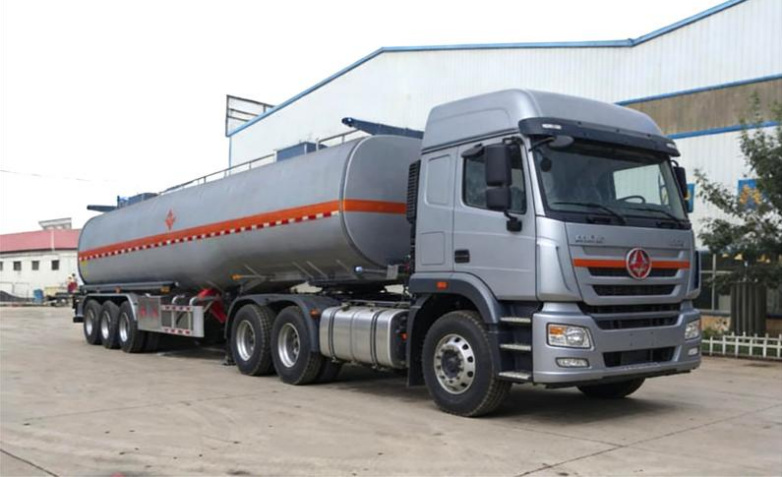

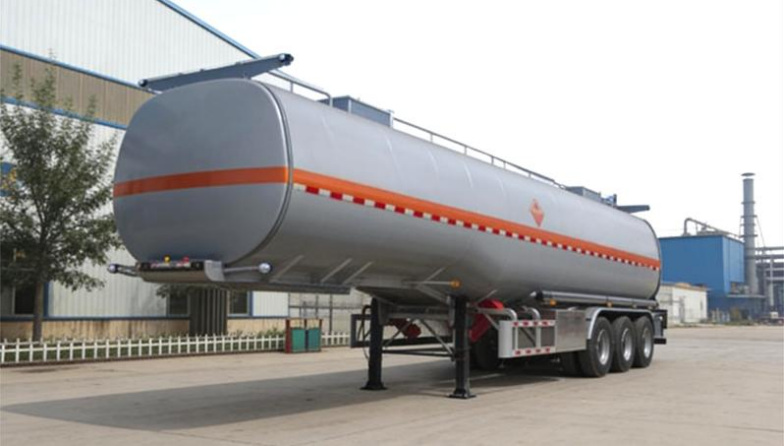

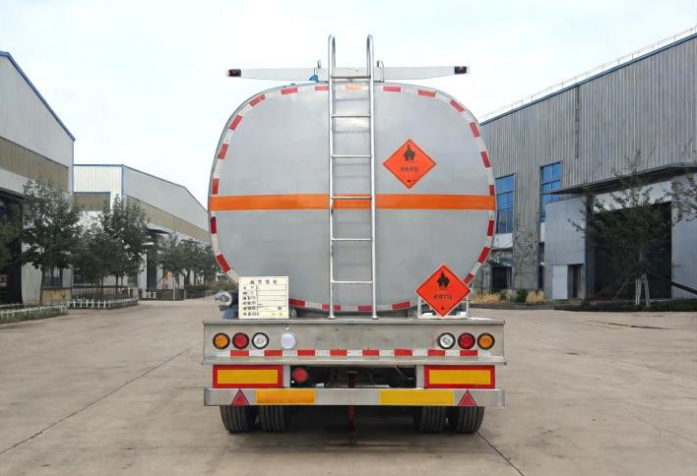

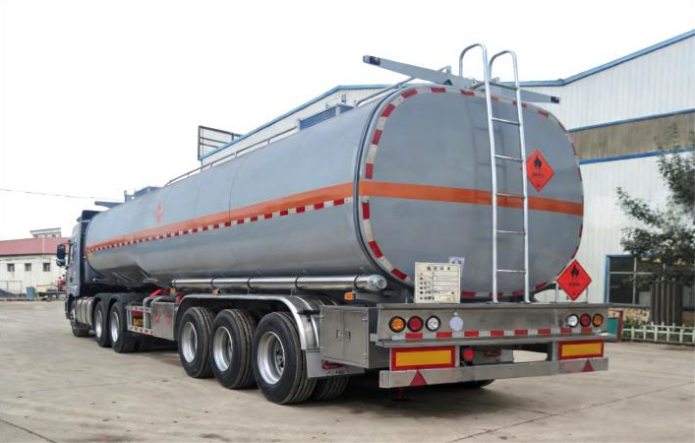

42m³ Asphalt Transport Semi-trailer
Model HHT9402GLY
42m³ Asphalt Transport Semi-trailer configured for heated asphalt or bitumen transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 42.6m³ |
|---|---|
| Rated payload | 32500Kg |
| Overall dimensions | 12700 × 2500 × 3900 mm |
| Gross vehicle mass | 40000 Kg |
| Curb weight | 7500Kg |
| Wheelbase | 7050+1310+1310 mm |
| Tires | 12R22.512PR |
| Outer Tank dimensions | 8900×2480×2300mm |
| Additional configuration | It belongs to FL-type dangerous goods transport vehicles, medium is liquid asphalt with density 800kg/m³; the dimensions of the tank body are (mm): insulated outer tank: front end: 3300×2480×2100, rear end: 8900×2480× 2300, inner tank: front end: 3200×2280×1900, rear end: 8800×2280× 2100,tank and frame are aluminum alloy structure, protection material is aluminum alloy, rear protection section 140×60mm, ground clearance 500mm; equipped with ABS, optional mudguard, fire extinguisher and other accessories; must be matched with a tractor dedicated for towing dangerous goods transport semi-trailers. |
| Inner Tank Dimensions | 8800×2280×2100mm |
| Transport Medium | Liquid asphalt |
