Bitumen Tanker Semi-Trailers
30m³ Asphalt Transport Semi-trailer
Model HLV9400GLY

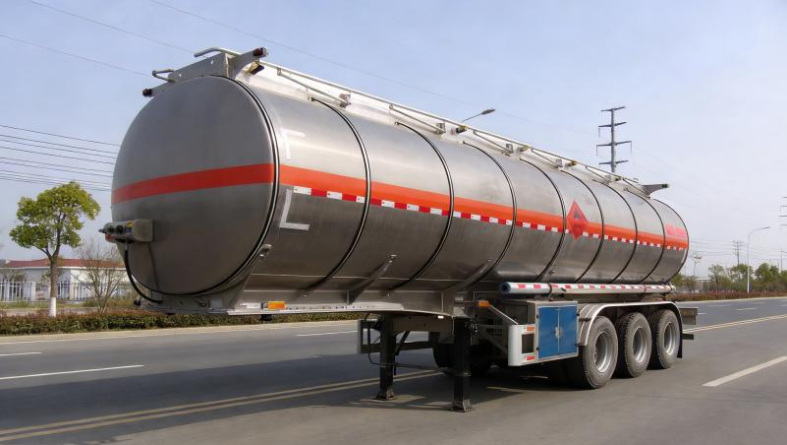

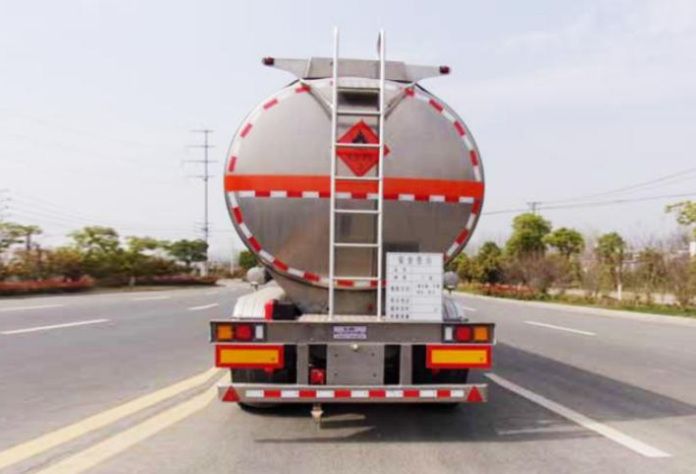

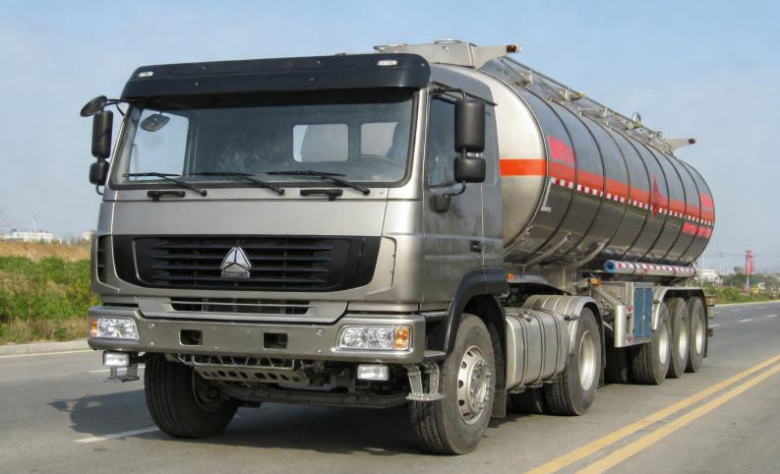

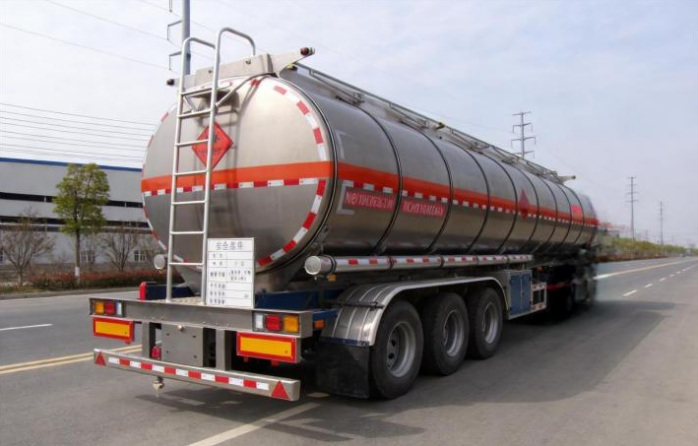

30m³ Asphalt Transport Semi-trailer configured for heated asphalt or bitumen transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 30m³ |
|---|---|
| Tank dimensions | 9760 × 2460 × 2010 |
| Rated payload | 32700 Kg |
| Overall dimensions | 10300 × 2550 × 3750 mm |
| Gross vehicle mass | 40000 Kg |
| Curb weight | 7300 Kg |
| Wheelbase | 4700+1360+1360 mm |
| Tires | 12R22.5 12PR |
| Additional configuration | It belongs to AT-type dangerous goods transport vehicles, with a maximum allowed medium density of 1090 kg/m³; tank and protection materials are aluminum alloy, connected by welding; equipped with ABS, rear protection section 150×80 mm, ground clearance 490 mm; optional ladder and other accessories; must be matched with a tractor dedicated for towing dangerous goods transport semi-trailers. |
| Transport Medium | Liquid asphalt |
| Inner Tank Dimensions | 9600×2300×1850 mm |
