Bitumen Tanker Semi-Trailers

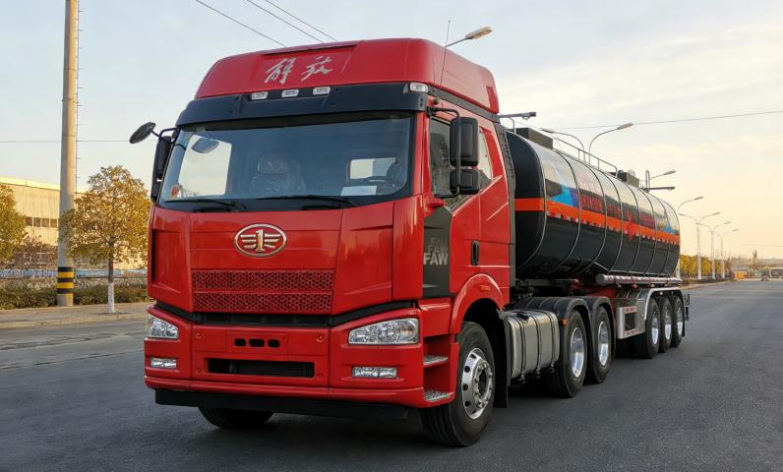

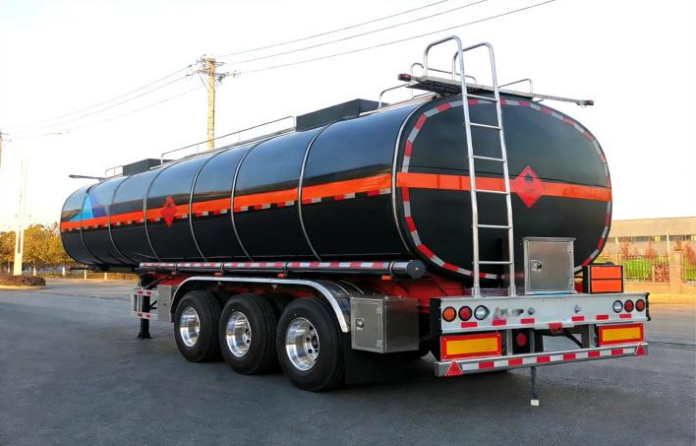

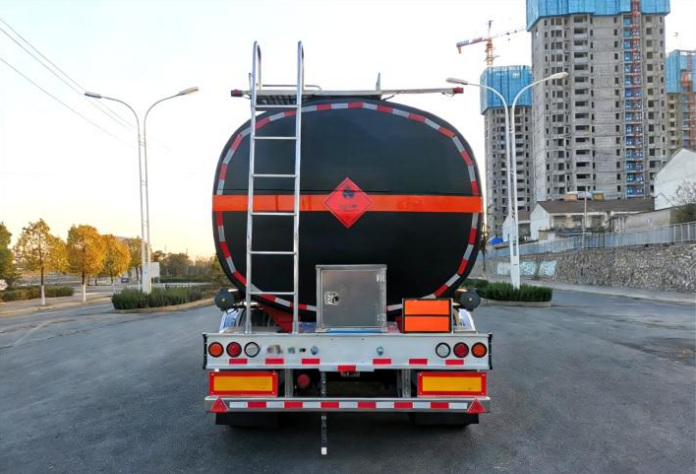

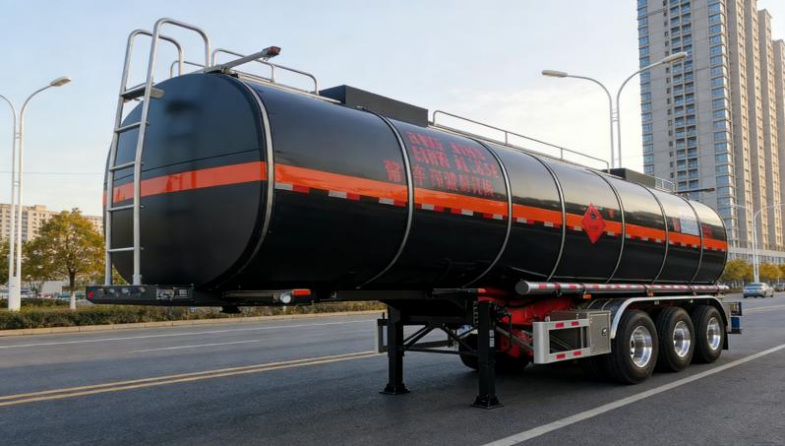

35m³ Asphalt Transport Semi-trailer (HFV9402GLY)
Model HFV9402GLY
35m³ Asphalt Transport Semi-trailer (HFV9402GLY) configured for heated asphalt or bitumen transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 35.2m³ |
|---|---|
| Tank dimensions | 9090 × 2530 × 2010 mm |
| Rated payload | 31400Kg |
| Overall dimensions | 10020 × 2550 × 3800 mm |
| Gross vehicle mass | 40000Kg |
| Curb weight | 8600Kg |
| Wheelbase | 4800+1310+1310 mm |
| Tires | 12R22.512PR |
| Additional configuration | It belongs to AT-type dangerous goods transport vehicles, with a maximum allowed medium density of 900kg/m³; equipped with EBS, side/rear protection materials are aluminum alloy, rear protection section 130× 65.4mm, ground clearance 430mm; optional air suspension, ladder and other accessories; must be matched with a tractor dedicated for towing dangerous goods transport semi-trailers. |
| Transport Medium | Liquid asphalt |
| Inner Tank Dimensions | 9090×2430×1910mm |
