Aircraft Refuellers

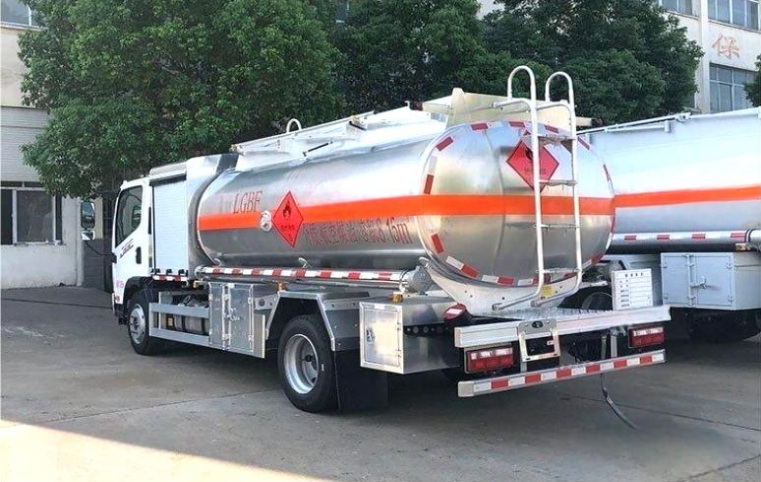

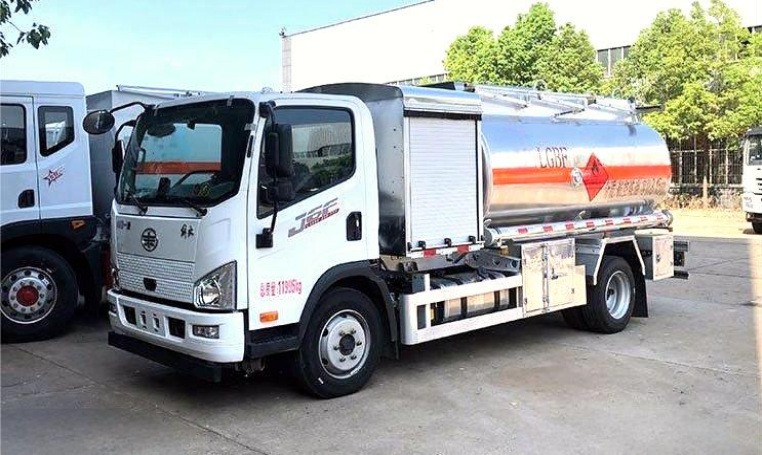

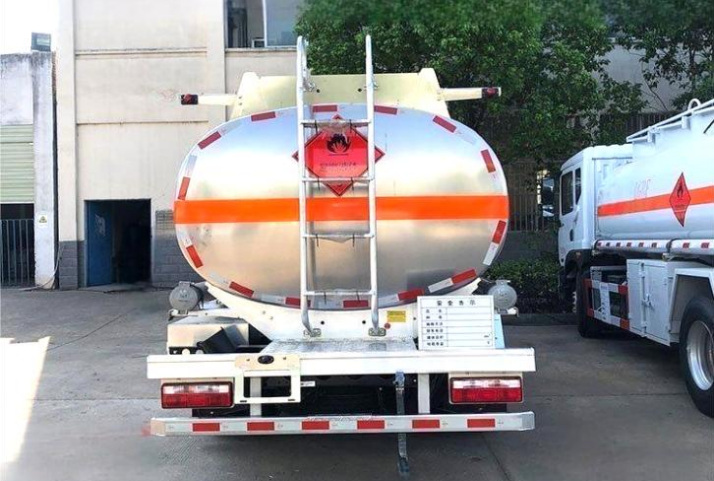

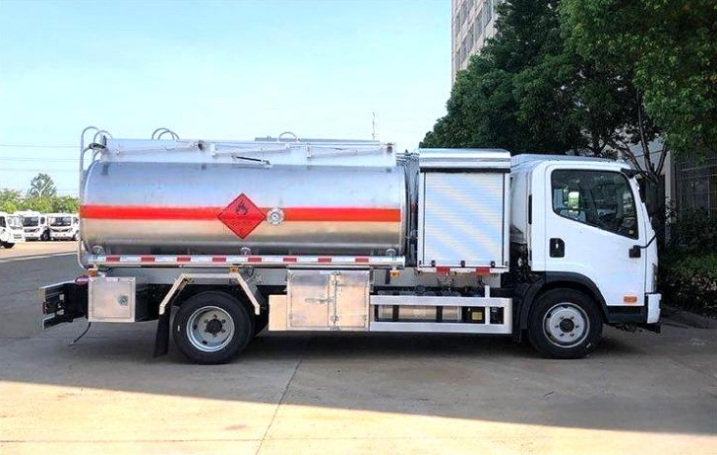

FAW Jiefang 8m³ Aircraft Refueling Truck
Model 5120GJYC6A
FAW Jiefang 8m³ Aircraft Refueling Truck configured for airport aviation-fuel transfer.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 8.15m³ |
|---|---|
| Tank dimensions | 3800 × 1950 × 1400 mm |
| Rated payload | 6200 kg |
| Overall dimensions | 7150 × 2250 × 2850 mm |
| Gross vehicle mass | 11995 kg |
| Curb weight | 5600 kg |
| Chassis model | CA1120P40K59L4BE6A84 |
| Wheelbase | 4200 mm |
| Engine model | WP3NQ160E61 |
| Engine displacement | 2970 ml |
| Engine power | 118 kW |
| Horsepower | 160 hp |
| Tires | 245/70R19.5 16PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 3800×1950×1400mm when refueling device is top-mounted, and 4700×1750×1250mm when bottom-mounted; The side and rear protections are bolt-connected with Q235B carbon steel, the rear protection cross-section is 80× 150mm with a ground clearance of 450mm; It is equipped with ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, front-mounted exhaust pipes, only uses radial tires, and can be optionally equipped with ETC on-board devices. |
