Aircraft Refuellers
Sinotruk Howo 6×4 18m³ Aircraft Refueling Truck
Model 5260GJYF6Z

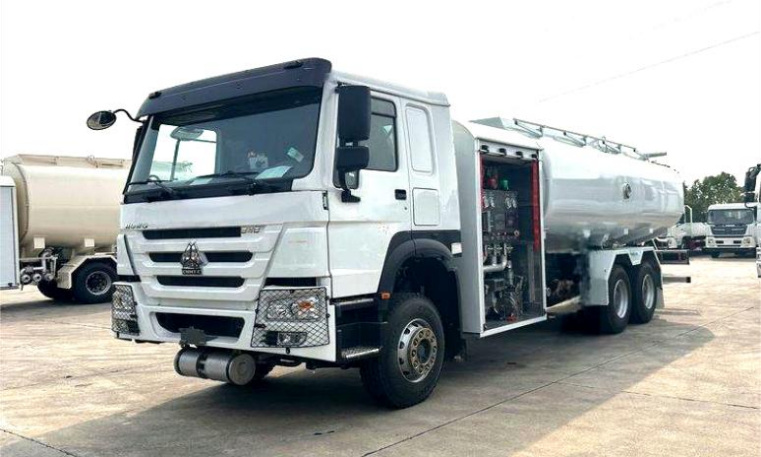

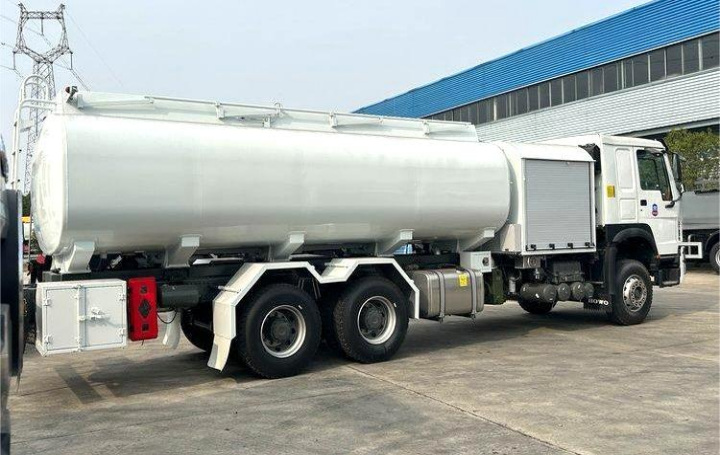

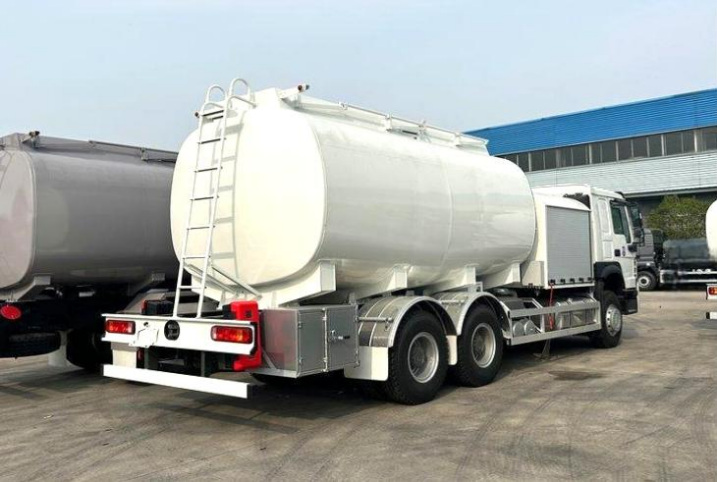

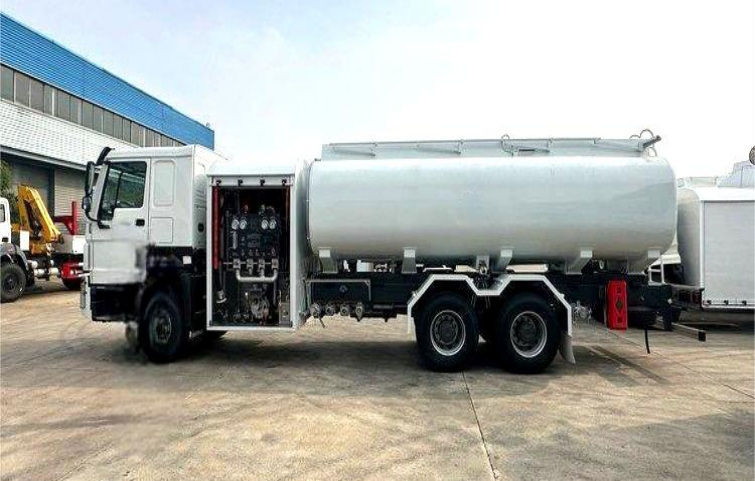

Sinotruk Howo 6×4 18m³ Aircraft Refueling Truck configured for airport aviation-fuel transfer.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 18m³ |
|---|---|
| Tank dimensions | 2480 × 1600 × 5200 mm |
| Rated payload | 13650 kg |
| Overall dimensions | 9400 × 2500 × 3250 mm |
| Gross vehicle mass | 26000 kg |
| Curb weight | 12220 kg |
| Chassis model | ZZ1267N464GF1K |
| Wheelbase | 4575+1400 mm |
| Engine model | MC07H.35-60 |
| Engine displacement | 7360 ml |
| Engine power | 257 kW |
| Horsepower | 349 hp |
| Tires | 295/80R22.5 18PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 2480×1600×5200mm (total length 5560mm including head); The side protection is bolt-connected with 6063-T5 aluminum alloy material, the rear protection is welded with Q355B carbon steel (cross-section 120×120mm, 400mm above the ground); It is equipped with EBS/ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC, side protection safety signs and other configurations. |
