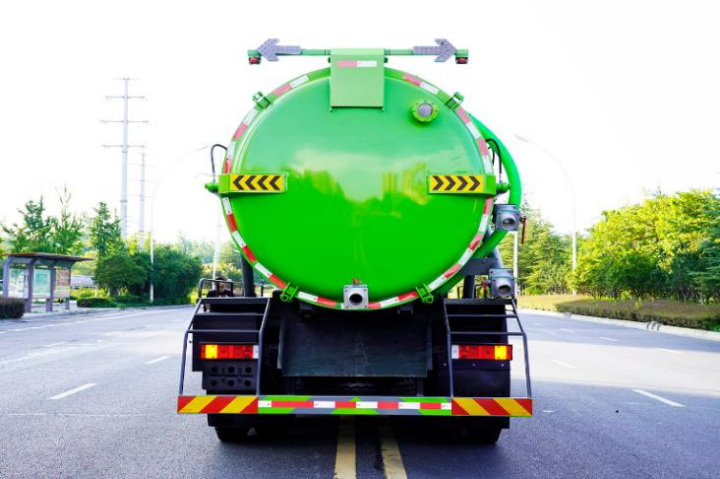

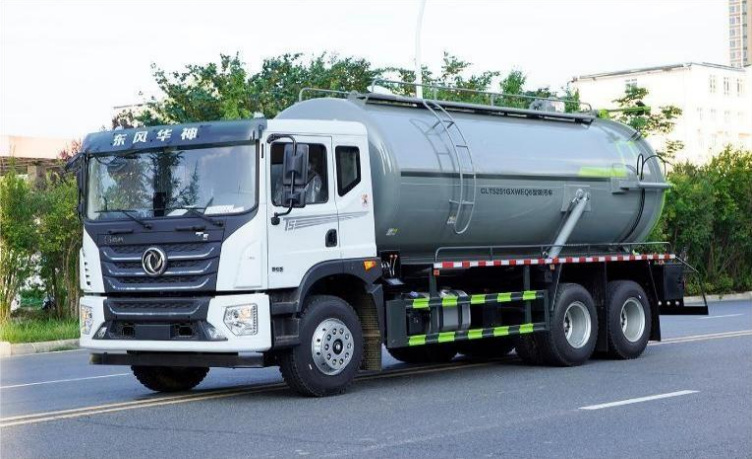

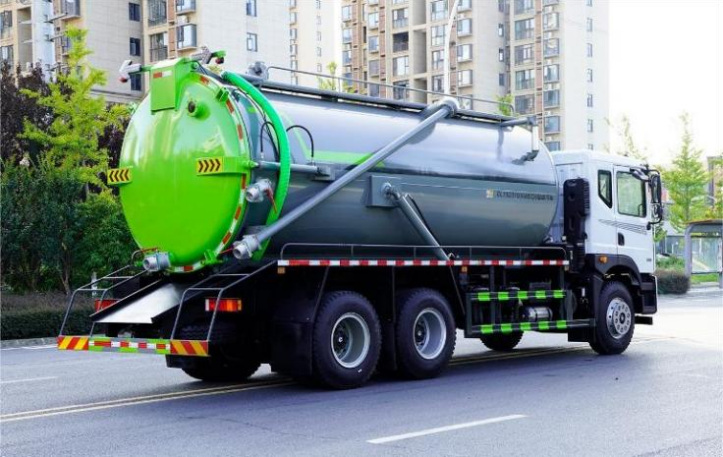

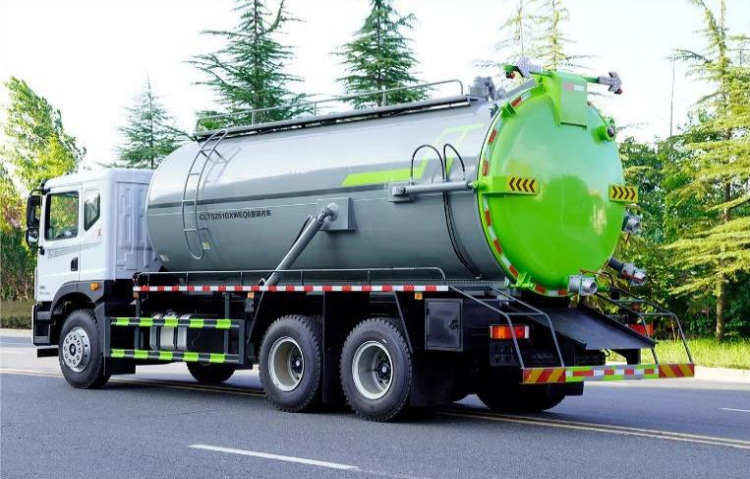

Dongfeng Huashen T5 15m³ Vacuum Sewage Truck
Model CLT5251GXVE6G
Dongfeng Huashen T5 15m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 15.62m³ |
|---|---|
| Tank dimensions | 6150 × 2000 × 1400 mm |
| Rated payload | 11970,12270 kg |
| Overall dimensions | 9000 × 2530,2550 × 3600,3650,3900 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 12600,12400 kg |
| Chassis model | EQ1256GL6DJ |
| Wheelbase | 4350+1350,4750+135 0,5850+1350 mm |
| Engine model | YCS06270-60 |
| Engine displacement | 6234 ml |
| Engine power | 199 kW |
| Horsepower | 270 hp |
| Tires | 11.00R20 18PR |
| Additional configuration | For sewage suction & sanitation, sewer waste, core devices: tank+sewage suction system (with lifting function), tank total/effective cap.15.62/14.88m³, tank dims(L×W×H)6150×2000×1400mm, side/rear protection Q235 carbon steel bolted, rear protection section150× 50mm, ground clearance490mm, ABS model3631010-C2000, wheelbase4350+1350mm only, mod. with optional side compartment recycling/rear outlet styles, chassis-optional cab & rear style. |
