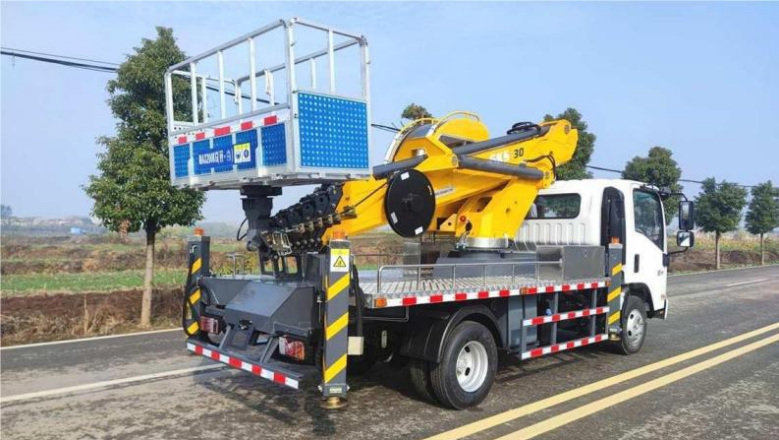

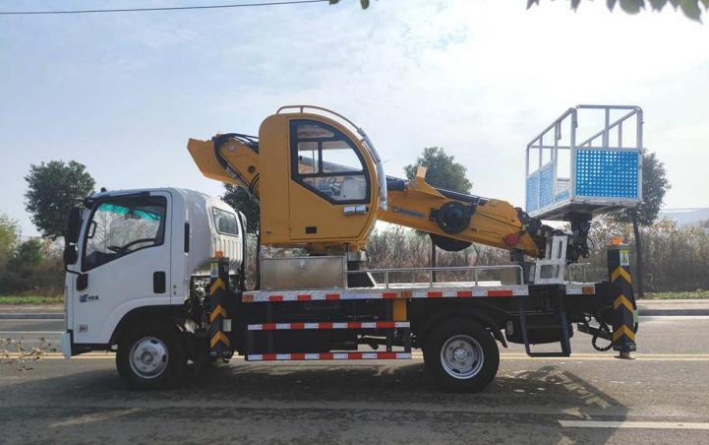

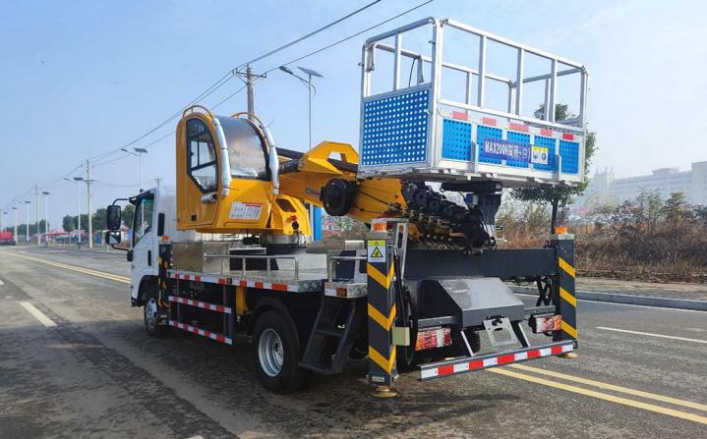

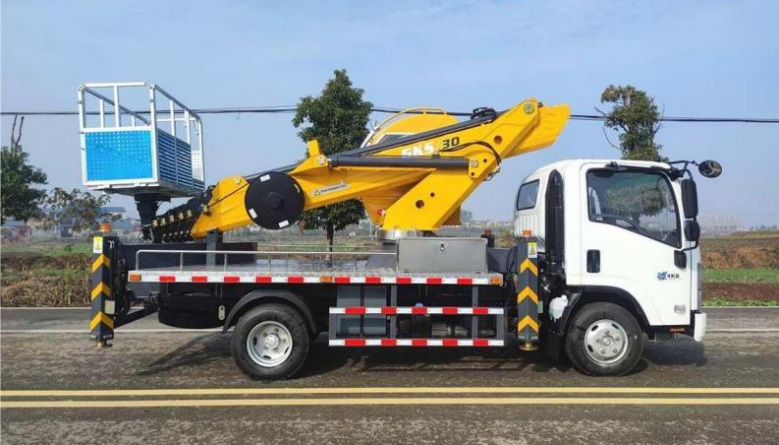

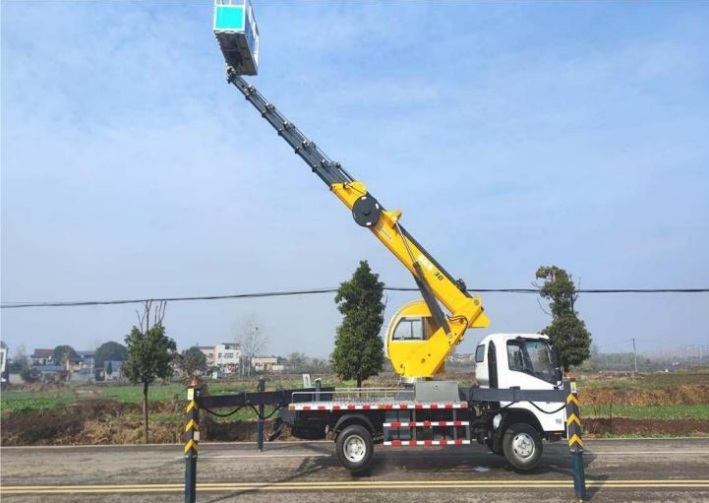

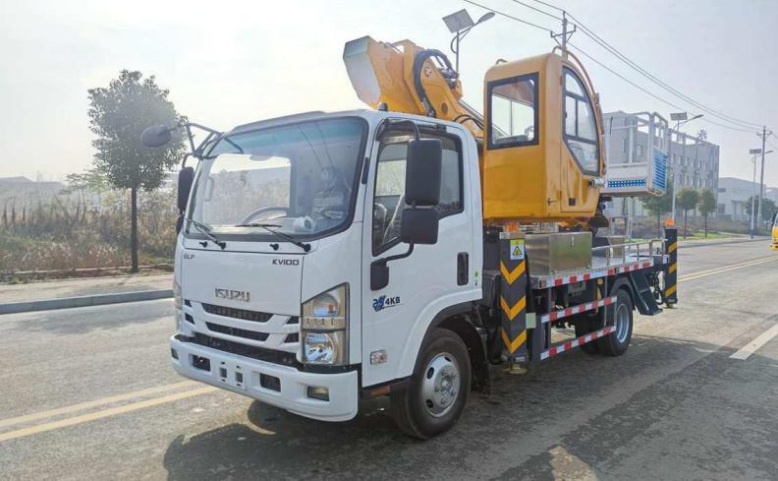

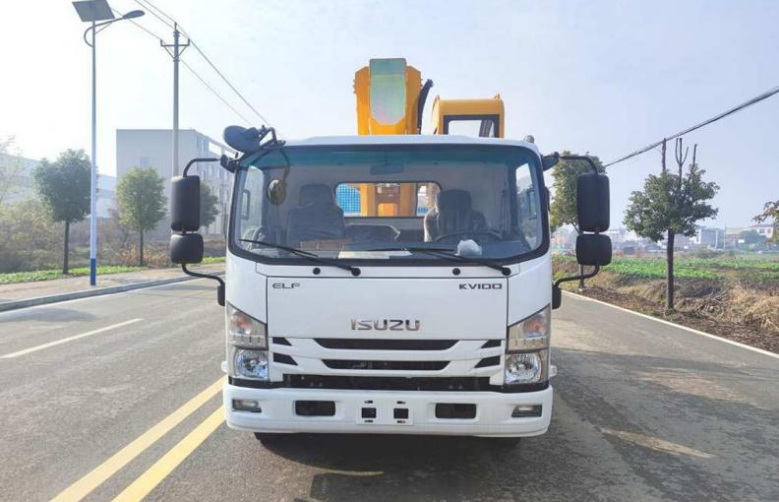

Isuzu GKS30E Model Pro Flagship Edition Aerial Work Platform
Factory specification sheet for the Isuzu GKS30E Model Pro Flagship Edition Aerial Work Platform.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Outriggers | Front V-type & rear V-type, individually adjustable |
|---|---|
| Overall dimensions | 6370 mm × 2200 mm × 3000 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 4300 kg |
| Wheelbase | 3360 mm |
| Engine model | WP2.3Q140E62 |
| Engine displacement | 2289 ml |
| Engine power | 103 kW |
| Horsepower | 140 hp |
| Emission standard | China VI (China VI (GB 17691-2018)) |
| Tires | 7.00R16 |
| Boom | 14-sided 7-section boom, supporting 6-section synchronous telescoping |
| Lateral span | 6050 mm |
| Longitudinal span | 6550 mm |
| Rated load of working platform | 200 kg |
| Maximum working range | 16m |
| Swing angle | 360° continuous rotation |
| Basket dimensions | 1800 × 700 × 1000 mm, folding aluminum alloy platform |
| Maximum working height | 30m |
| Special notes | Turntable hydraulic-handle operation; standard 150 m wireless remote control supports one-hand full-function operation, with an electric emergency pump. |
| Transmission | Isuzu 5-speed |
