Mobile Power Supply Trucks
ISUZU Municipal Emergency Power Supply Truck
Model 5100XDYQ6
ISUZU Municipal Emergency Power Supply Truck (5100XDYQ6) is configured for specialized fleet operations, with output voltage of 380V.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 8280 × 2450 × 3520 mm |
|---|---|
| Gross vehicle mass | 10495 Kg |
| Curb weight | 10300 Kg |
| Chassis model | QL1110ANMAY |
| Wheelbase | 4475 mm |
| Engine model | 4HK1-TCG61 |
| Engine displacement | 5193 ml |
| Engine power | 139 kW |
| Horsepower | 189 hp |
| Tires | 235/75R17.5 16PR |

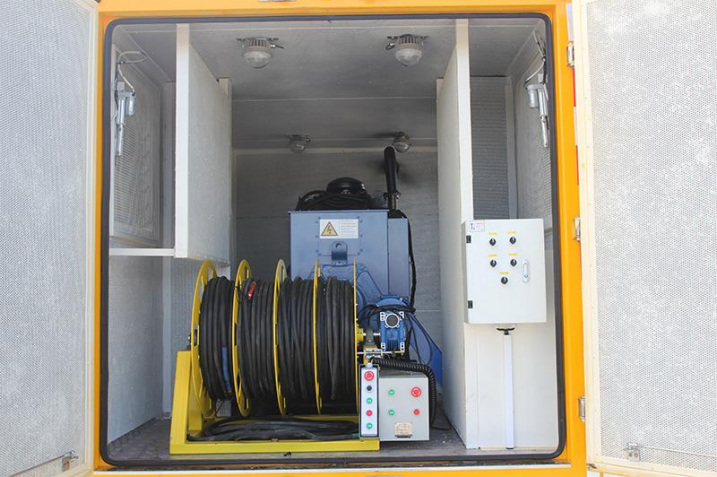

| Additional configuration | Special device: generator set, mainly used for emergency power supply guarantee for emergency rescue, large-scale activities and meetings, etc.; the top of the compartment is closed and cannot be opened; the side protection is made of Q235B, which is an integral skirt structure; the rear protection is made of Q235B, connected by welding, with a section size of 120×50mm and a ground clearance of 400mm; ABS corresponds to relevant models; generator set, cable winch and lighting equipment are optional, and the lighting can only be turned on in the working state, not during driving |
| Output voltage | 380V |
| Working Time | 8 hours |
