Funeral Vehicles

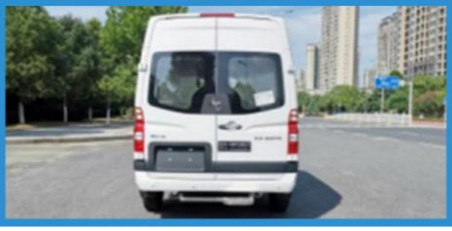

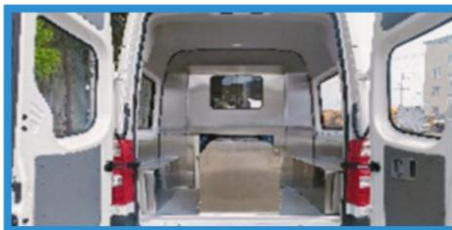

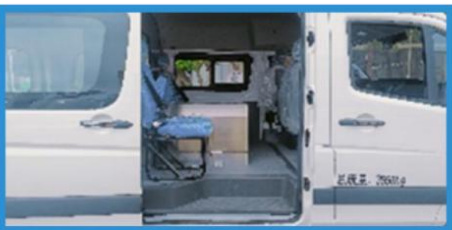

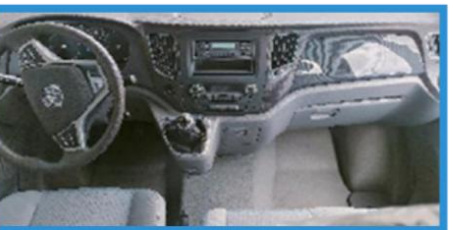

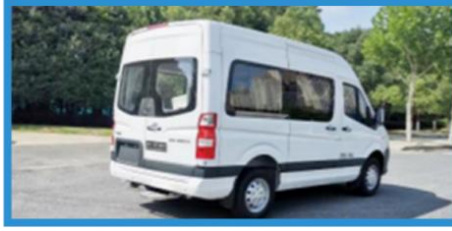

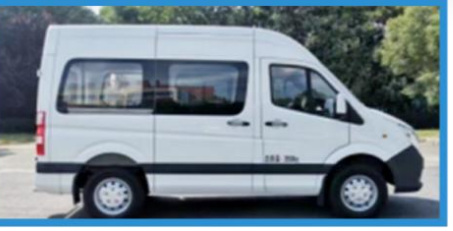

Foton Toano Short-axis Funeral Vehicle
Model EHY5041XBYB6QT
Foton Toano Short-axis Funeral Vehicle is configured for dignified mortuary transport and funeral service operations.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5100 × 2000 × 2430 mm |
|---|---|
| Gross vehicle mass | 3550 kg |
| Curb weight | 2350 kg |
| Chassis model | BJ6518MD5AA-V1 |
| Wheelbase | 2933 mm |
| Engine model | 4F20TC3 |
| Engine displacement | 1968 ml |
| Engine power | 110 kW |
| Fuel type | Diesel |
| Emission standard | China VI (China VI (GB 17691-2018)) |
| Tires | 215/75R16C, 215/75R16LT |
| Axles | 2 |
| Maximum speed | 130, 100, 150 km/h |
| Rated passengers | 5 |
