Firefighting UAV Transport Trucks
Sinotruk HOWO 6×4 Fire Drone Transport Truck
A complete vehicle configuration for transporting and deploying firefighting UAVs at fire and rescue scenes.
Firefighting UAV systemMultiple firefighting UAVs and ground-station systemsUAV operating enduranceBattery: more than 20 minutes loaded flight; tethered: up to 4 hoursRated payload19450 kgChassis modelZZ5357TXFV 6 × 4Engine power294 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Firefighting UAV system | Multiple firefighting UAVs and ground-station systems |
|---|---|
| UAV operating endurance | Battery: more than 20 minutes loaded flight; tethered: up to 4 hours |
| Rated payload | 19450 kg |
| Overall dimensions | 10170 × 2550 × 3570 mm |
| Gross vehicle mass | 35000 kg |
| Curb weight | 15550 kg |
| Chassis model | ZZ5357TXFV 6 × 4 |
| Wheelbase | 5200+1400 mm |
| Engine model | MC11.40-50 |
| Engine displacement | 10518 ml |
| Engine power | 294 kW |
| Horsepower | 400 hp |
| Tires | 12.00R20/315/80R22.5 |

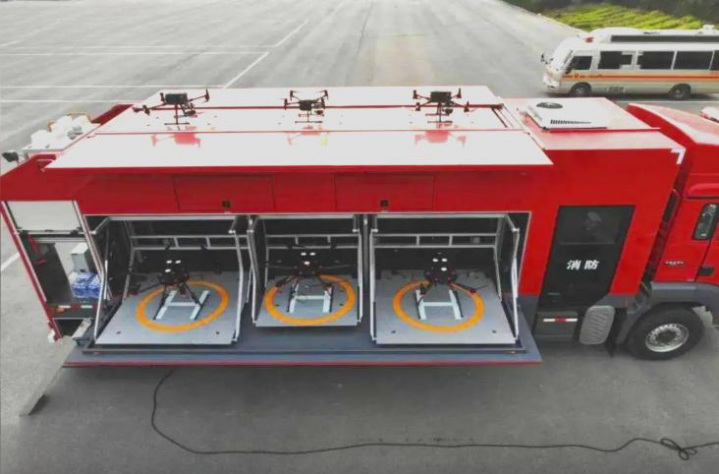

| Special notes | Firefighting UAV transport vehicle carrying multiple firefighting UAVs and ground-station systems. Side-opening take-off, landing and storage platforms support rapid deployment and charging; an integrated command-and-communication module supports reconnaissance and firefighting at large fire scenes. The supplied heavy-payload electric UAV supports battery-powered loaded flight of more than 20 minutes or tethered operation for up to 4 hours. Intended applications stated in the catalog include high-rise firefighting, disaster rescue, and forest and grassland fire suppression. |
