Drainage Pumping Trucks
Dongfeng S3 Drainage Rescue Truck
Model 5070TPSD6
Dongfeng S3 Drainage Rescue Truck supports emergency pumping, drainage and flood-response operations.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 6030 × 2270 × 3100 mm |
|---|---|
| Gross vehicle mass | 7490 Kg |
| Curb weight | 7360 Kg |
| Chassis model | DFV2080GP6DJ |
| Wheelbase | 3360 mm |
| Engine model | YCF25160-66B |
| Engine displacement | 2488 ml |
| Engine power | 116 kW |
| Horsepower | 157 hp |
| Tires | 235/75R17.5 16PR |

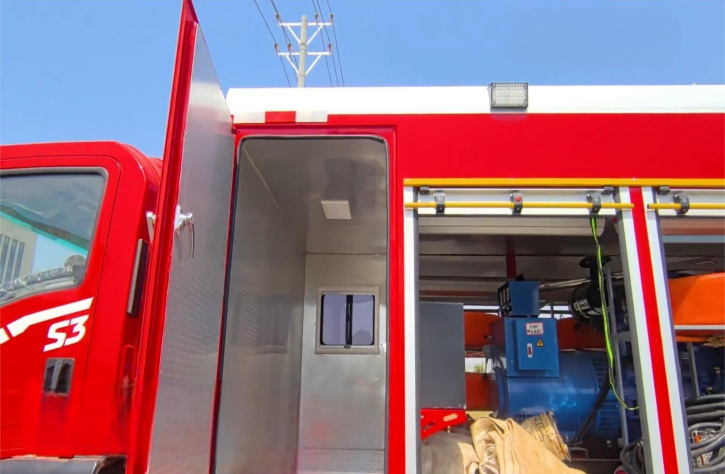

| Special notes | The closed-top compartment cannot be opened. Special equipment includes a generator set, water pump and drainage system for drainage rescue operations. Side and rear protection are integral Q235B structures; rear ground clearance is 470 mm. The vehicle uses a 3360 mm wheelbase chassis. Lighting lamps are for operation only and remain off while driving; the internal layout is optional. |
