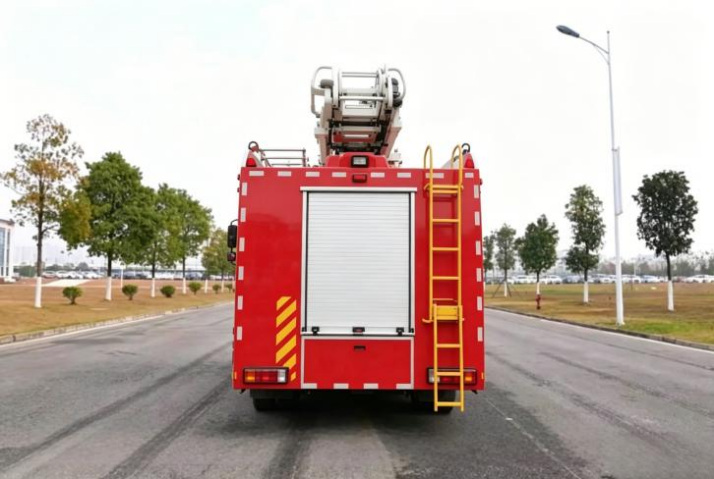

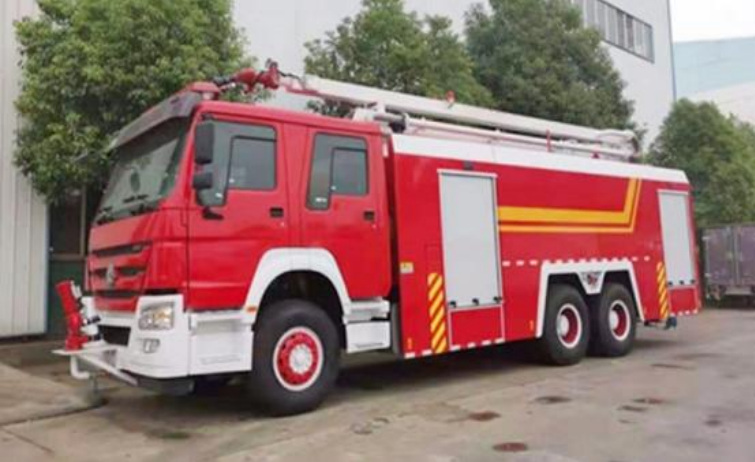

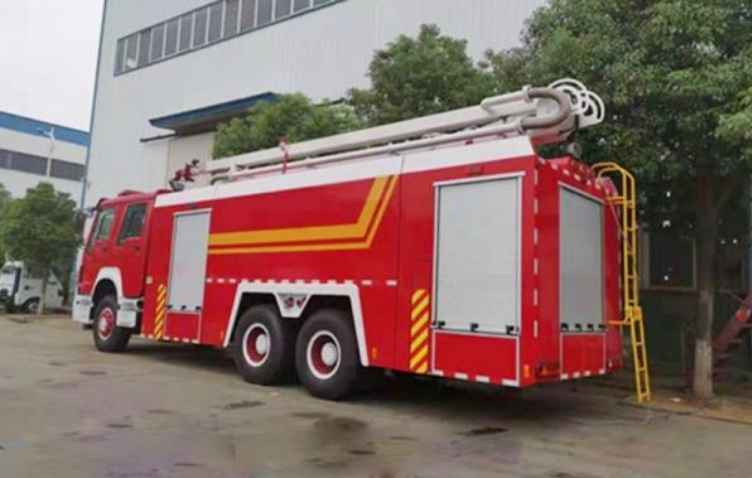

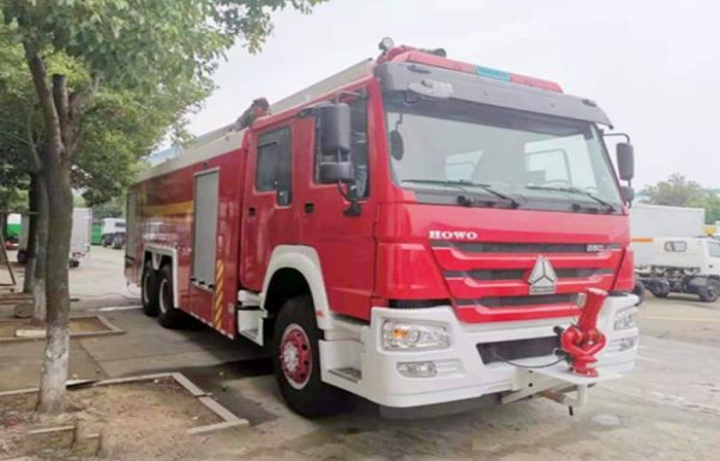

Sinotruk Howo Rear Double Axle 18m Elevating Platform Fire Truck
Model 5327JXFJP20/C2
A Sinotruk Howo Rear Double Axle 18m Elevating Platform Fire Truck configured for fire and rescue operations.
Tank / body volume11.981m³Rated payload12020 kgChassis modelZZ5347V4647E1Engine power247 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 11.981m³ |
|---|---|
| Tank dimensions | 2790 × 2430 × 1550 mm |
| Rated payload | 12020 kg |
| Overall dimensions | 10690 × 2500 × 3970 mm |
| Gross vehicle mass | 31700 kg |
| Curb weight | 19230 kg |
| Chassis model | ZZ5347V4647E1 |
| Wheelbase | 4325+1350 mm |
| Engine model | D10.34-50 |
| Engine displacement | 9726 ml |
| Engine power | 247 kW |
| Horsepower | 336 hp |
| Tires | 11.00R20 |
| Superstructure | Working reach: 21m, compact main-boom + knuckle-boom design with fast deployment & auto-leveling outriggers, equipped with high-flow fire monitor, large-capacity water tank & high-flow water pump. |
| Additional configuration | This is an elevating platform fire truck, equipped with a fire pump, fire monitor and folding telescopic arm; its water tank volume is 10.020 m³, foam liquid tank volume is 1.961 m³ (540×2430×1550mm), it has a CB10/60 vehicle fire pump (flow 60L/s, pressure 1.0MPa, priming time ≤35s at 7m suction lift) and a PLKD40D fire monitor (electrically controlled 360° rotation, flow 40L/s/1MPa, water range ≥55m), the cab is all-steel frame welded, the crew compartment is connected to the cab front with double-row four doors, equipment compartment doors are aluminum alloy curtain doors with flip pedals on both sides and rear, and it is also equipped with alarms, LED warning lights, marker lights, outline light switches and rear work lights. |
